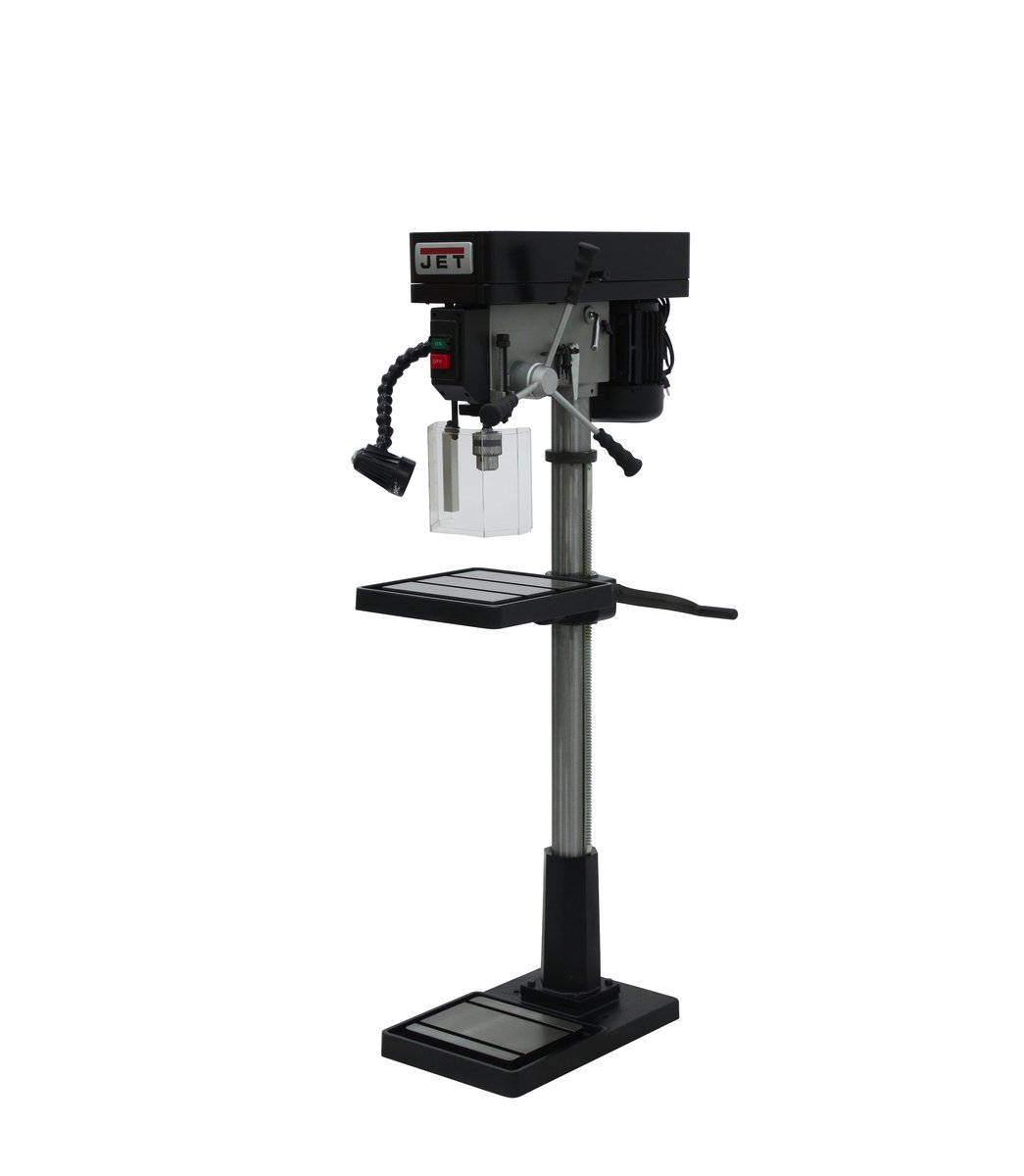

17 Industrial Floor Model Drill Press | IDP-17

The JET 17' and 22' Industrial Drill Presses are known for their accuracy, stability, and versatility. This heavy - duty industrial drill press line comes with oversize cast iron tables and base and is CSA/CUS Certified. Key features include a 1/2' diameter external positive depth stop with three - nut locking for quick adjustment, an adjustable tension spindle return spring, and a drill chuck and key that attach to the side of the press for easy access. The hinged metal belt and pulley cover adds safety, and the large hand grips are designed for user comfort. The on/off switch on the front of the drill press head is convenient. The rotating, 45° tilting, crank - operated worktable with a quick - release clamp offers flexibility. The spindle is supported by high - quality ball bearings, and the table is ground for accuracy. Specifications: Stock Number 354300, Base Dimensions 21 - 3/4 x 13 - 3/4 x 2 - 3/16 inches, and more.

Using your JET 17 - inch industrial floor model drill press is easy. First, make sure it's properly plugged into a 115/230V, 1Ph power source. Adjust the spindle speed according to your drilling task, with 12 speed options from 350 - 2,800 RPM. Use the external positive depth stop to set the drilling depth accurately. The adjustable tension spindle return spring can be adjusted for smooth operation. Keep the drill chuck and key within reach on the side of the press. When using the worktable, you can rotate it and tilt it up to 45° for different angles and lock it in place with the quick - release clamp. Remember, this product has a Prop 65 warning about cancer and reproductive harm, so use it in a well - ventilated area. For maintenance, regularly check the high - quality ball bearings supporting the spindle. Clean the table to maintain its accuracy. Also, keep the belt and pulley cover clean and in good condition. If you have any problems, consult the user manual or contact JET support.
