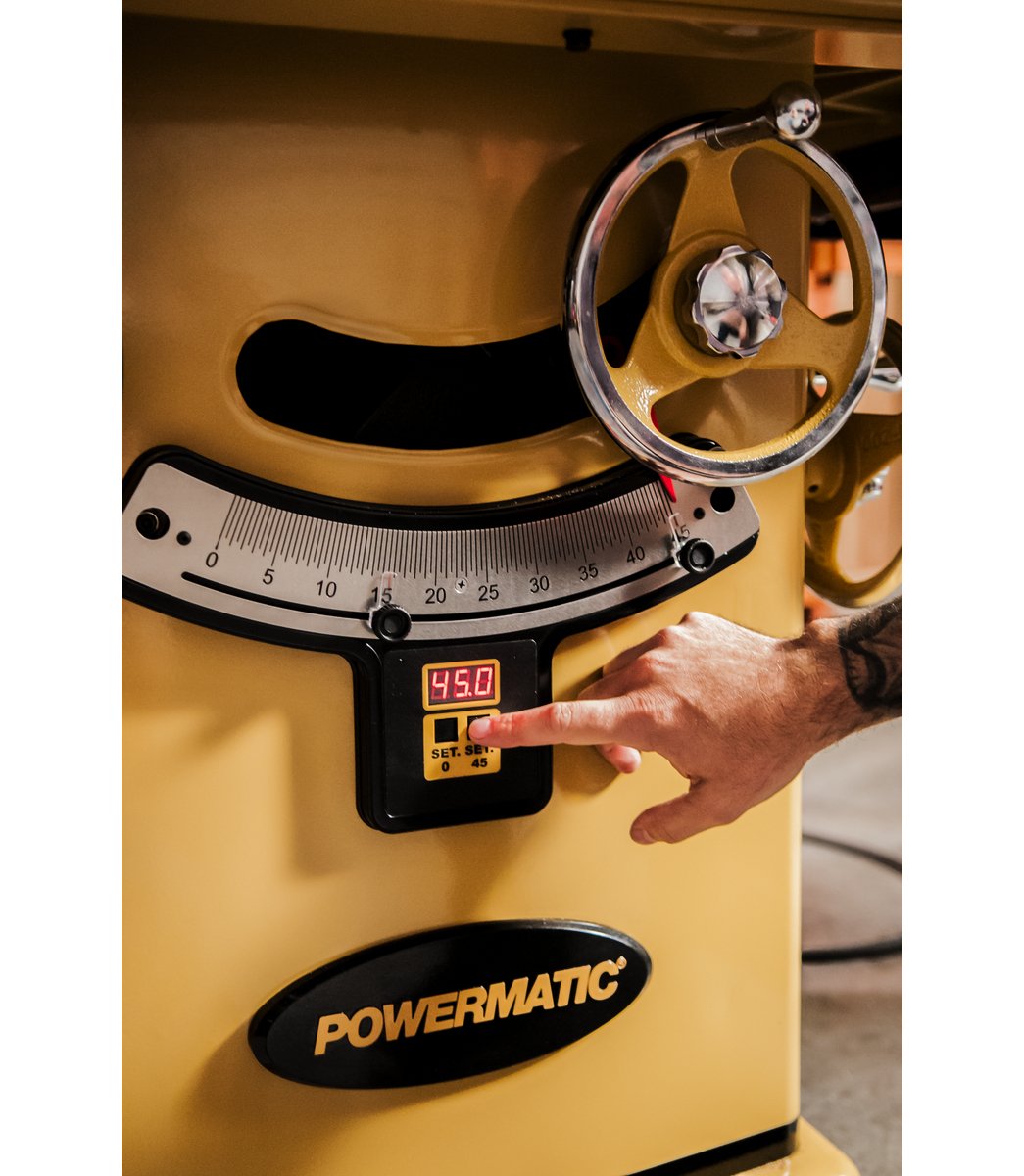

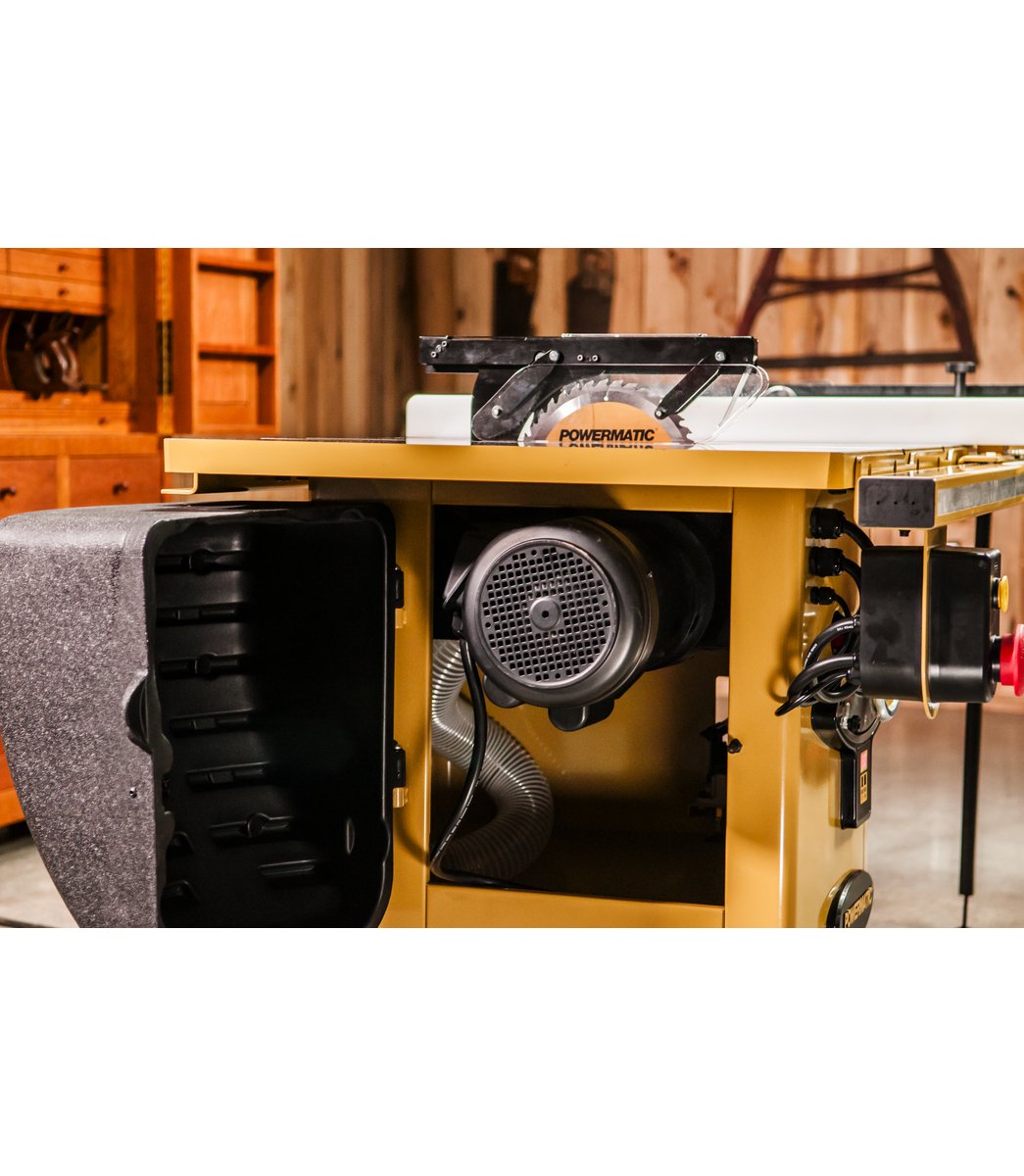

The award - winning PM2000B table saw revolutionizes the woodworking world with its innovative patented features and solid body design. Its oversized cast - iron tables are a sight to behold. The newly designed arbor lock lever, accessible from above the tabletop, makes blade changes a breeze, eliminating the need for dual arbor wrenches. The quick - release riving knife reduces kickback risks. The blade tilt scale comes with an integrated digital read - out and adjustable angle indicators for precise and repeatable bevel cuts. The integrated retractable hydraulic caster system allows for easy movement, even over thresholds. A wide stance, heavy - duty box trunnion, and concave teeth on trunnion gears make raising and tilting the saw blade simple. The Poly - V drive belt system ensures quiet, efficient power transfer with minimal vibration and heat. The improved built - in dust collection port makes cleanup easy. And the saw is equipped with a proprietary safety switch with magnetic interlock, and the stop button can be activated by your knee. Key features include adjustable angle indicators for bevel cuts, an arbor lock for quick blade changes, an integrated digital read - out, integrated dust collection, a hydraulic caster system, a matching beveled edge between the table and extension wings, a one - piece cast - iron box trunnion for stability, precision - ground cast - iron tabletops, and a quick - release riving knife lever.
Using your 3HP 1PH 230V 50 RIP 2000B Table Saw is easy. First, make sure it's properly plugged into a 20 - amp circuit as recommended. Before starting any cuts, check the blade and make sure it's secure using the arbor lock. For bevel cuts, use the adjustable angle indicators on the blade bevel scale and the integrated digital read - out for precision. When moving the saw around the shop, use the integrated hydraulic caster system. Just roll it carefully, especially when going over thresholds. For dust collection, connect a vacuum with at least 400 CFM to the 4 - inch dust port. This will keep your workspace clean. As for maintenance, regularly clean the saw cabinet through the convenient access point. Check the blade for wear and replace it when needed. Also, keep an eye on the Poly - V drive belt for any signs of damage. Remember, the saw has a safety switch with magnetic interlock. Always make sure it's working properly, and use the knee - activated stop button in case of an emergency. And be aware that this product can cause cancer and reproductive harm as per Prop 65.
