Discover the Aardwolf Horizontal Stone Lifting Clamp! Ideal for horizontally lifting stone and concrete, it has an adjustable grip range from 11 to 54 inches.

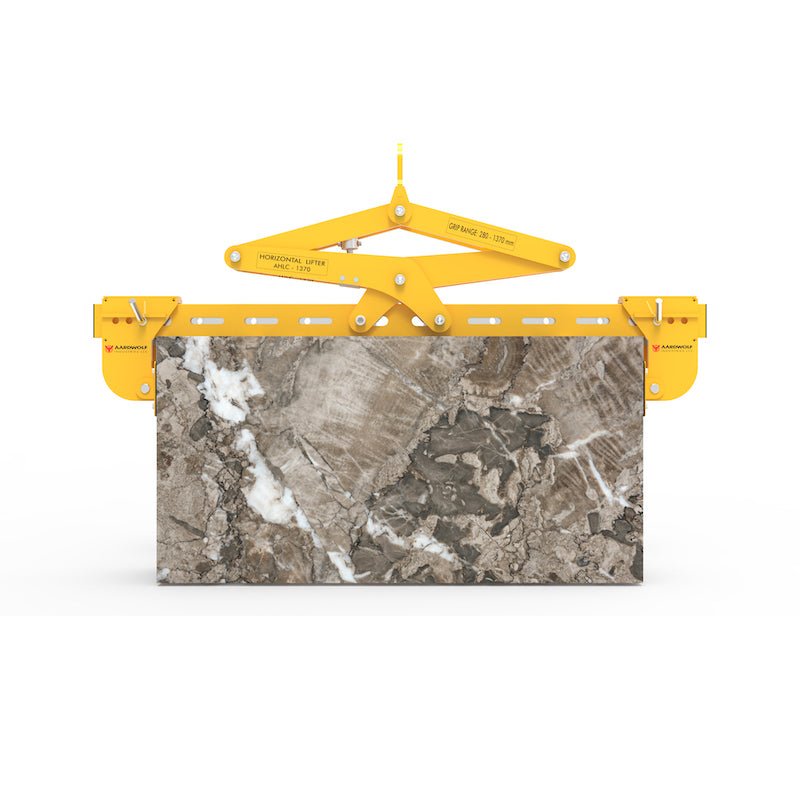

This clamp is perfect for lifting concrete and natural stone. The - 1370 model features a latch that automatically releases the lifter from the load once it's fully lowered to the ground.
Key Features
- Adjustable opening width for flexible use
- Large gripping range suitable for various applications
- Long - lasting, high - friction replaceable polyurethane gripping pads
- Lifting eye for easy attachment to a crane hook
- Auto - locking and unlocking mechanism for the load
- Vulcanized rubber pads for better performance
Specifications

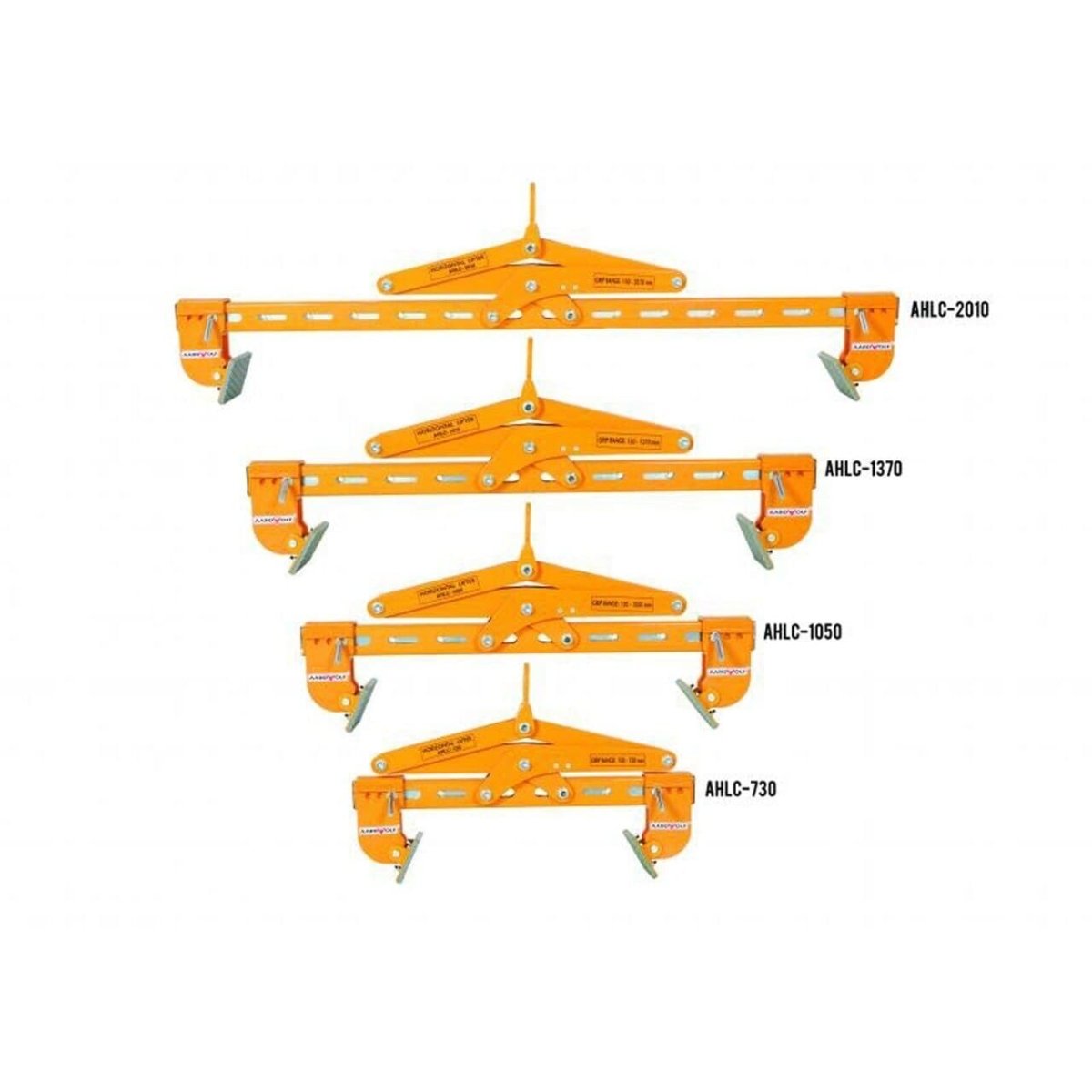

| Model | Grip Range | Lifting Capacity | Weight of Lifter |
| AHLC - 730 | 11' - 28' | 3307 | 247 |
| AHLC - 1050 | 11' - 41' | 3307 | 267 |
| AHLC - 1370 | 11' - 54' | 3307 | 273 |
| AHLC - 2010 | 11'' - 79'' | 3307 | 302 |
| AHLC - 2010 - 4 | 12'' - 79'' | 8818 | 503 |
Using the Aardwolf Horizontal Stone Lifting Clamp is easy. First, adjust the opening width according to the size of the stone or concrete you're lifting. Make sure it fits within the specified grip range. Then, attach the lifting eye to the crane hook. Once the load is secured, you can start the lifting process. When the load is fully lowered to the ground, the latch will automatically release the lifter.
Here are some important notes. Always check the load capacity before using the clamp. Don't exceed the specified weight limit. Inspect the gripping pads regularly. If they show signs of wear, replace them promptly. Also, store the clamp in a dry place to prevent rust and damage. With proper use and maintenance, this clamp will serve you well for a long time.
