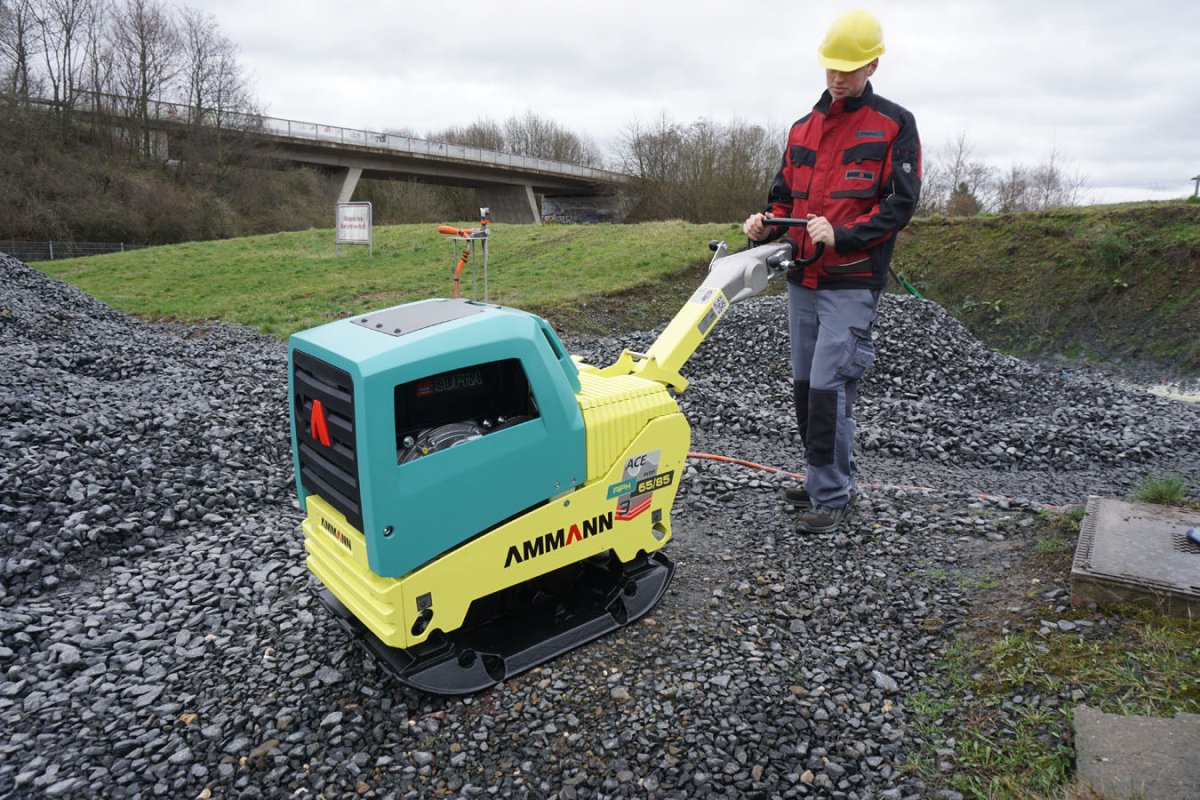

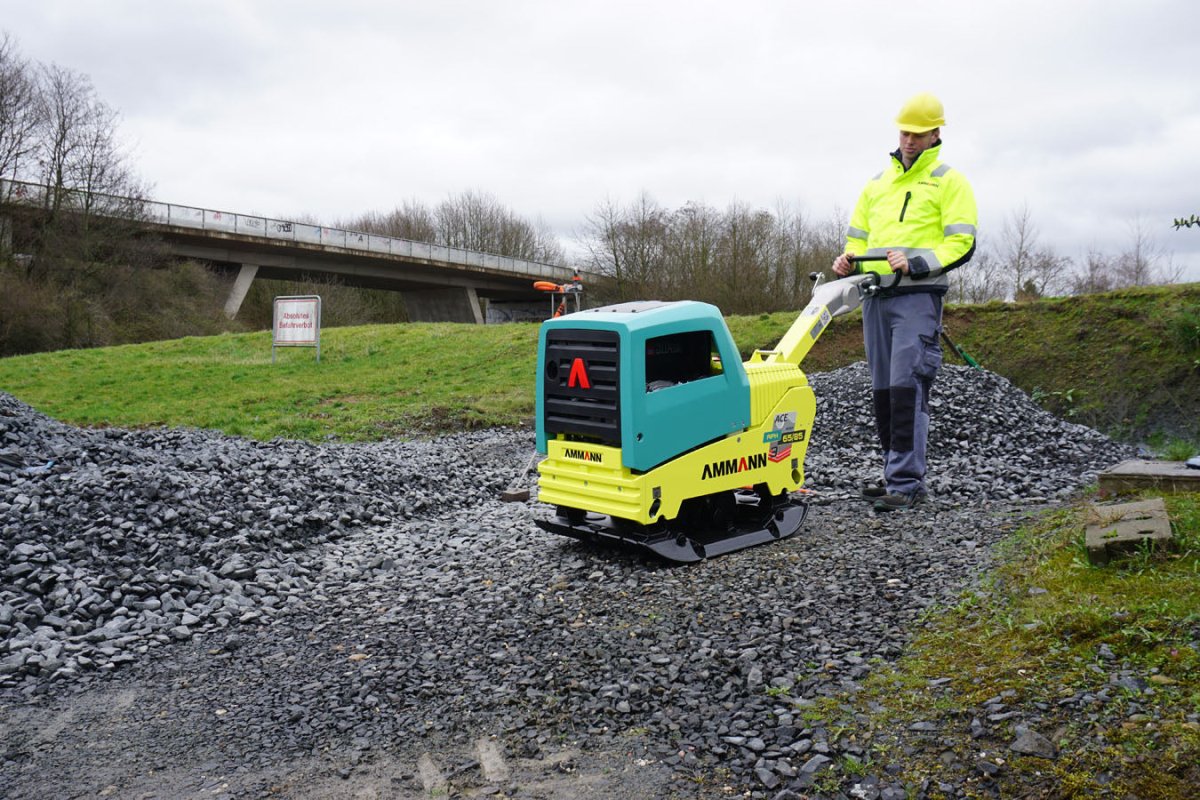

The APH 65/85 Hydrostatic Compaction Plates are highly productive on any ground. This powerful machine delivers consistent compaction force throughout the job. It features the market - leading Ammann three - shaft exciter system, which boosts performance and climbing ability, making it responsive and easy for operators to handle. The optional ACE force compaction measuring system helps contractors achieve thorough and efficient compaction results. Ammann's patented triple - shaft exciter system ensures smooth travel, even in heavy, cohesive soils and on steep grades. These plates have low hand - arm - vibration values, allowing operators to work longer shifts comfortably. The Ammann Orbitrol steering enables smooth direction changes and precise operation on the jobsite. The fully hydrostatic drive system eliminates the need for V belts and centrifugal clutches, reducing maintenance. Equipped with the industry - proven Ammann Compaction Expert (ACE), it provides accurate soil stiffness readings and indicates if the desired compaction is achieved. Machine weight is 471 kg, with various dimensions specified. It has a Hatz 1D81S diesel engine with 13.7 HP output at 3000 rpm, consuming 2.5 l/h of fuel. The max vibration frequency is 55 Hz, and the max centrifugal force is 65 kN. The working surface of the basic unit is 1632 m²/h, and it has a max surface pressure of 19.76 N/cm². The operating speed is 32 m/min, with a 7 - liter tank capacity, 36% gradeability, and a max incline of 30° to all sides. Options include extension plates, an operation hour meter, electric starter, emergency stop, and ACE econ/force.

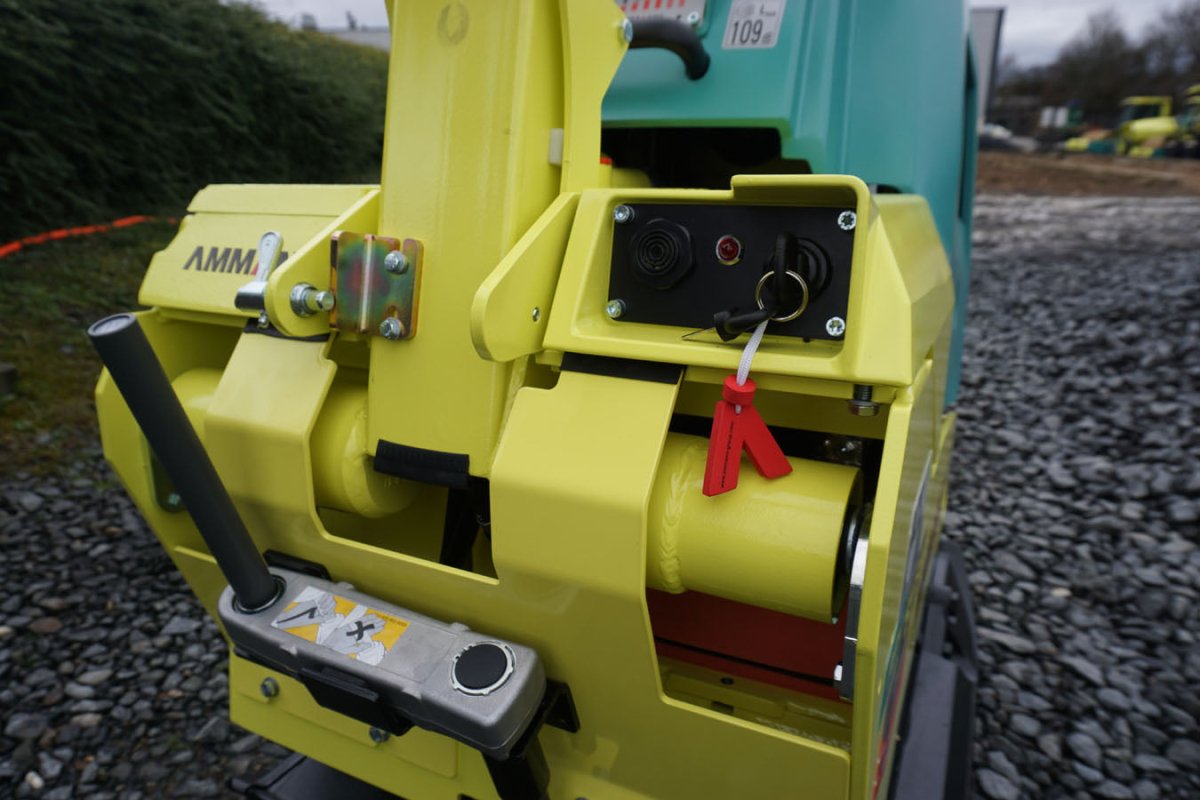

Using the APH 65/85 Hydrostatic Compaction Plates is straightforward. First, make sure the fuel tank is filled with diesel. Start the engine using the starter (either electric or manual). Use the Ammann Orbitrol steering control lever to adjust the machine's speed and direction. You can change the direction smoothly by simply turning the lever. When working, let the machine do its job of compacting the soil. If you've opted for the ACE force or ACE econ system, it will help you ensure you're achieving the right level of compaction. Be careful when operating on steep slopes, as the machine has a 36% gradeability. Don't exceed the maximum incline of 30° to all sides. For maintenance, since it has a fully hydrostatic drive system, you don't have to worry about V belts and centrifugal clutches. But still, regularly check the engine oil, fuel filter, and hydraulic fluid levels. Keep the machine clean after each use. If you have the extension plates, attach and detach them carefully. Also, make sure to turn off the machine using the emergency stop if there's an issue. And don't forget to check the operation hour meter regularly to keep track of the machine's usage.
