Blue Diamond Nursery Fork Skid Steer Attachment

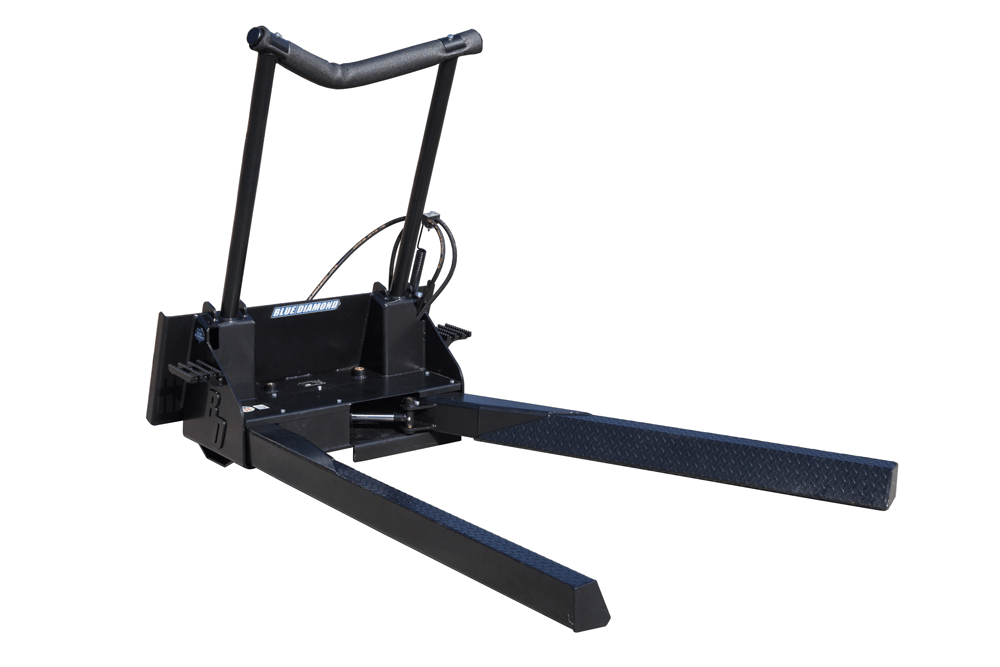

The Blue Diamond® Skid Steer Nursery Forks, available in Severe and Standard Duty models, are tailor - made for operators who frequently handle tree bulbs. This attachment is ready to use right out of the box, coming with hoses, couplers, and a foam sleeve that gently protects the tree trunk. You can route the hoses to either the left or right side, ensuring a perfect fit for your machine's couplers. A hose protector spring stops the hose from getting pinched between the mount and the machine. All pivots are equipped with grease fittings and can be easily accessed without removing any panels.

Features

• Internally Protected Hose
• Greaseable Pivots
• Hose Saver Spring
• Safety Step
• Foam Tree Trunk Protection on Cradle
• Left or Right Hose Routing

PART NUMBER	MODEL	FORK OPENING (CLOSED TO OPEN)	LIFT CAPACITY	WEIGHT
114092	Hydraulic Nursery Fork, Standard Duty	3' TO 60.5'	2,500 lbs.	442 lbs.
114095	Hydraulic Nursery Fork, Severe Duty	6' TO 54'	3,000 lbs.	633 lbs.

Using this Blue Diamond skid steer nursery fork attachment is easy. First, make sure the hoses are routed to the side that matches your machine's couplers. Once it's attached to your skid steer, you're ready to pick up tree bulbs. Open the forks to the appropriate width for the tree you're handling. When lifting, be careful not to overload it beyond its capacity (2,500 lbs for the standard duty and 3,000 lbs for the severe duty). As for maintenance, regularly grease the pivots using the grease fittings. Check the hose protector spring often to ensure it's working properly and preventing the hoses from getting pinched. Also, inspect the foam sleeve that protects the tree trunk for any signs of wear and replace it if needed. Always refer to the severe - duty nursery fork manual for detailed instructions.
