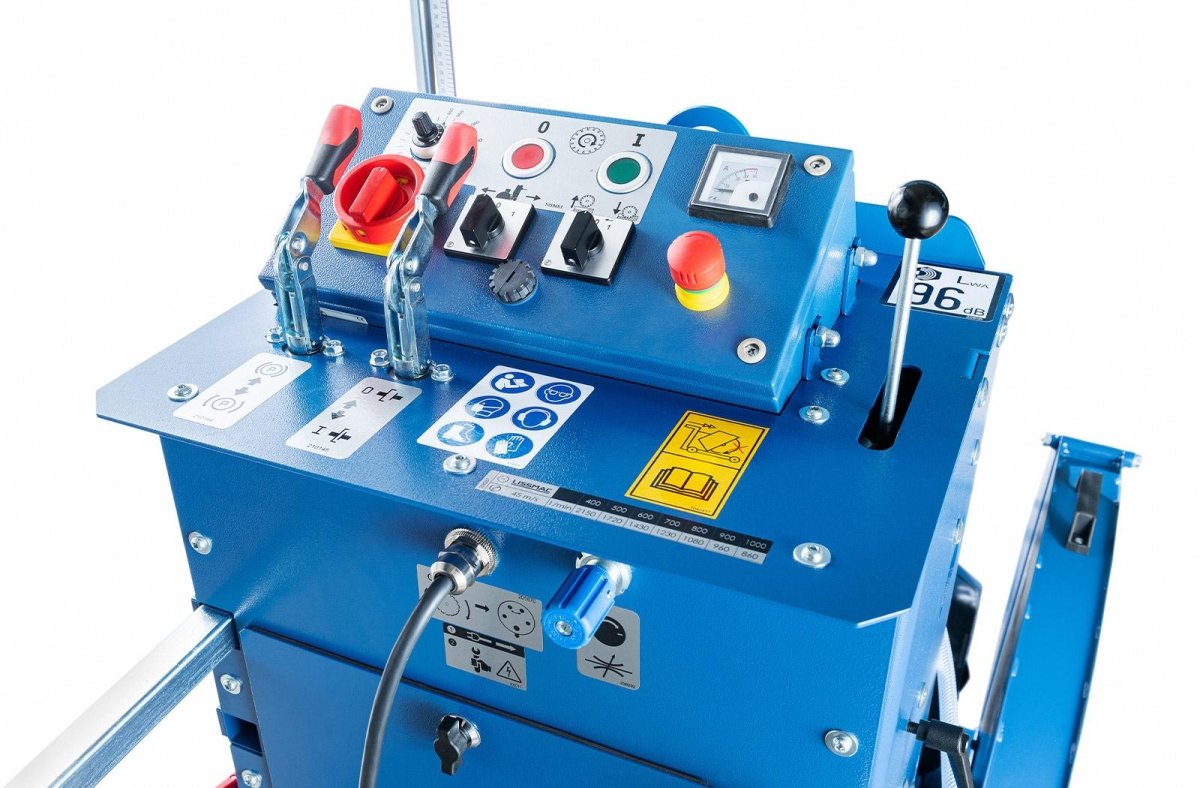

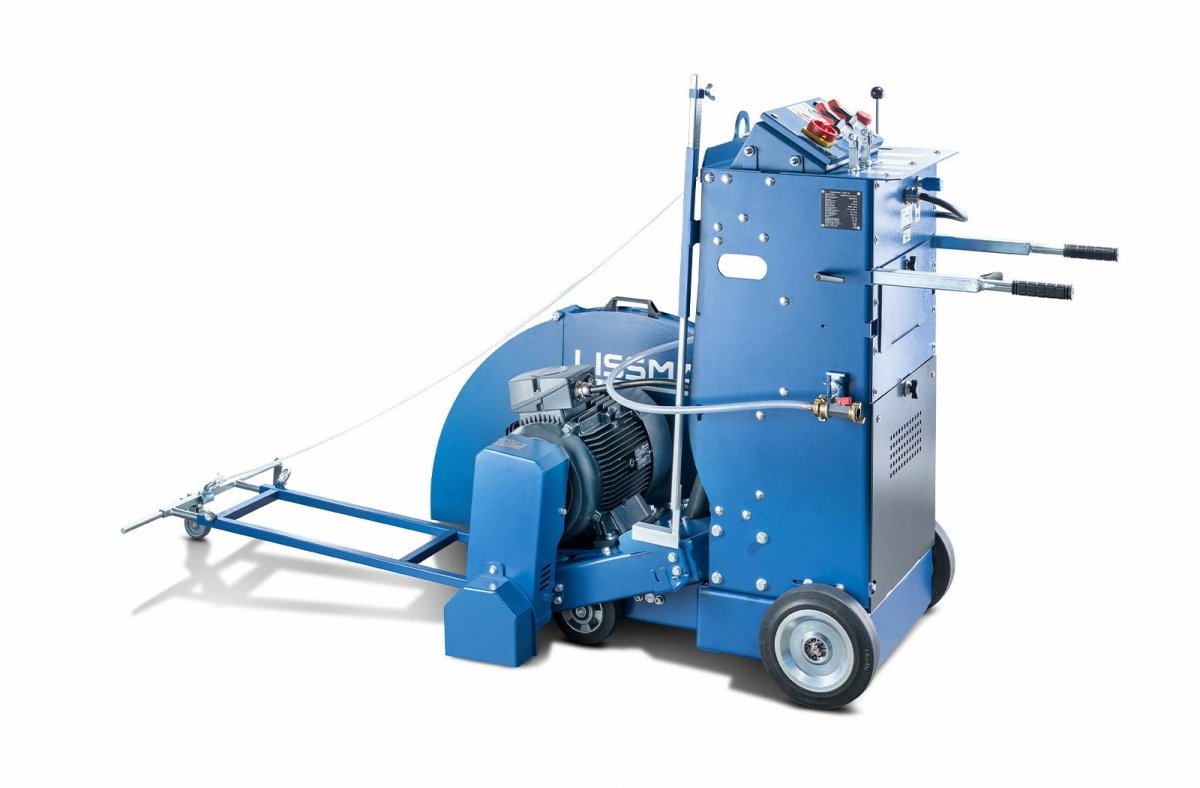

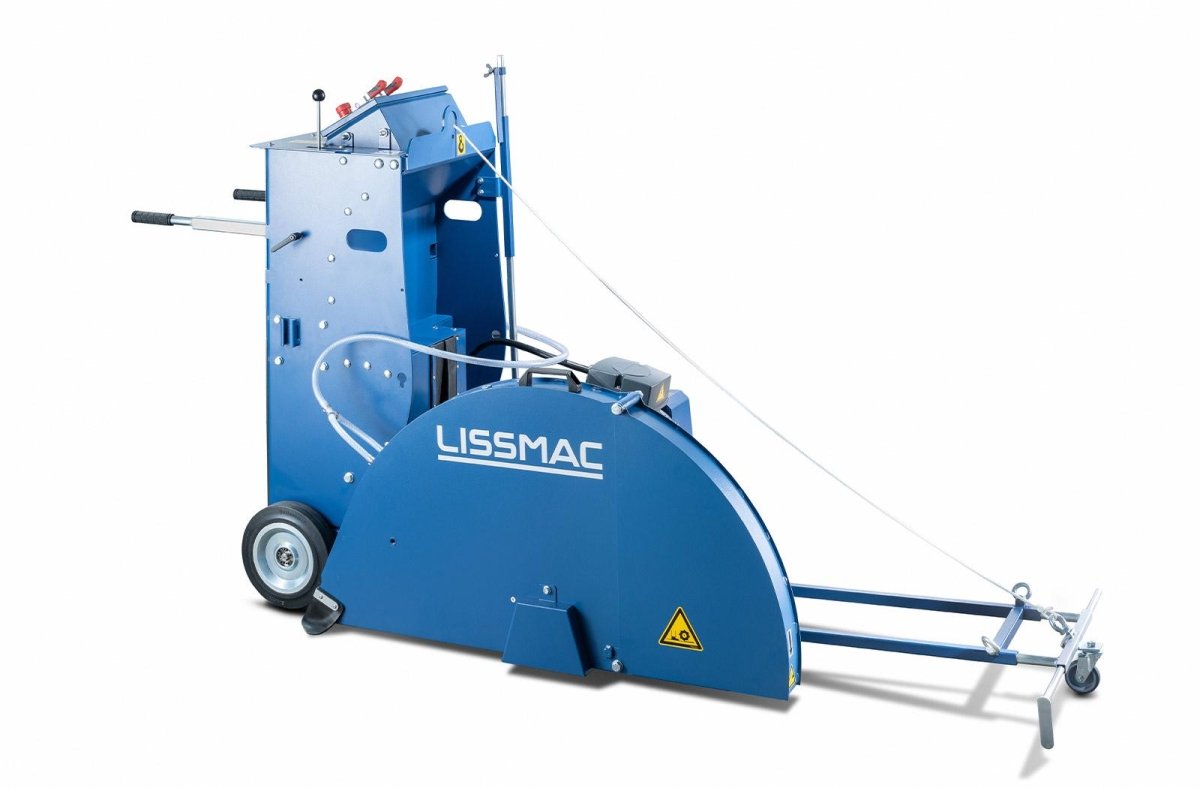

The CompactCut 501 E electric saw is a powerful and reliable tool designed for tough jobs. It offers high strength and endurance, making it perfect for continuous use in asphalt and concrete cutting, separating cuts, and demolition work, especially indoors. With a 15 kW electric drive, it runs emission - free and with low vibration, reducing the burden on users and the environment while protecting the cutting tool. The 400 - volt low - noise drive can spin saw blades up to 1,000 mm, achieving a maximum cutting depth of 420 mm in asphalt and concrete. This saw is mechanically similar to the CompactCut 601 E and includes a frequency converter. Its compact design combined with high maneuverability allows for efficient indoor joint cutting, even close to the wall with optional equipment. The feed system is infinitely adjustable. Key features include a particular compact design, hydraulic and continuous saw blade lowering and lifting to prevent damage, clear and ergonomic controls, a foldable saw hood for overcuts, a patented flush - mounted sawing system, and a rear wheel outside the saw cut for easy re - cutting. It also has a low center of gravity for stability, an adjustable continuous feed system, a locking brake, a cut depth display, and more. Optionally, it can be equipped with a wall - flush hood for compliant wall - flush joint cutting.

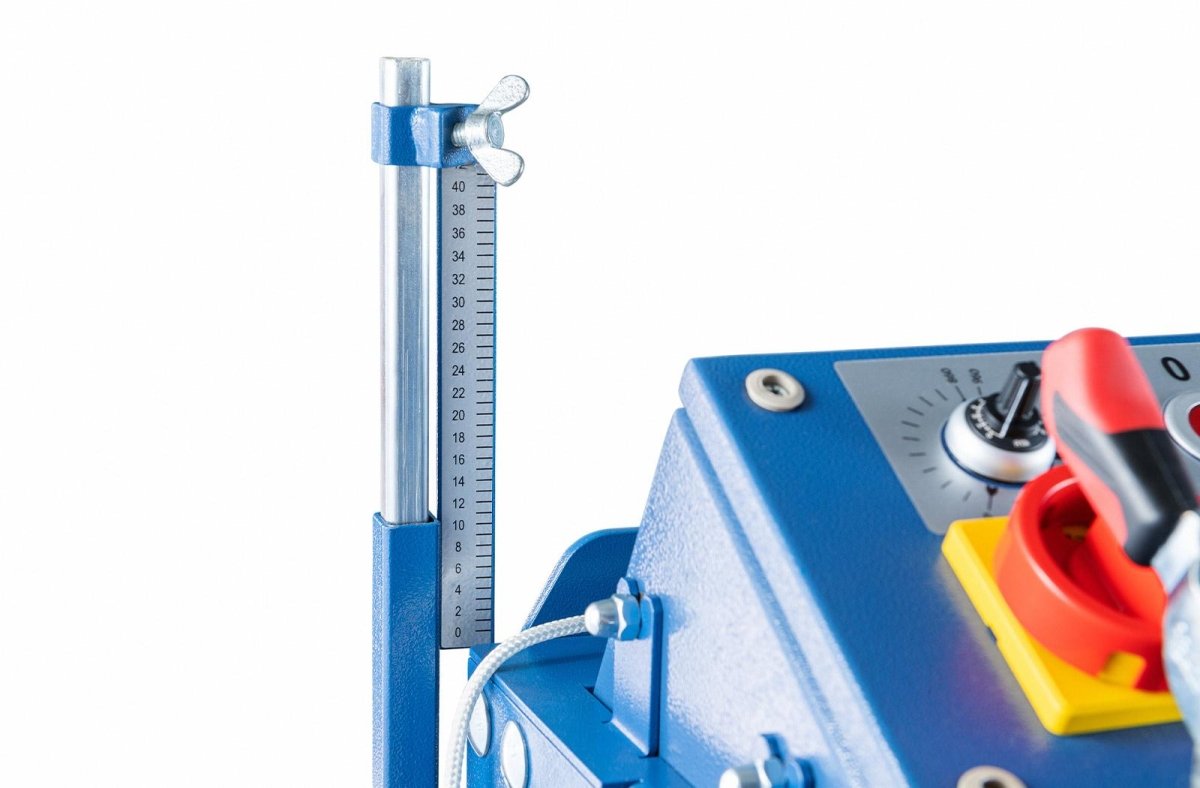

Using the CompactCut 501 E is quite straightforward. First, make sure the power supply is 400 V and suitable for the 15 kW motor. Before starting, check the saw blade to ensure it's properly installed and in good condition. You can adjust the cutting depth using the electro - hydraulic setting. When operating, use the infinitely adjustable feed system to control the cutting speed. For indoor use, take advantage of its high maneuverability and compact size. When making cuts close to the wall, you can use the optional wall - flush hood. As for safety, always wear appropriate protective gear like goggles and ear protection. Keep the work area clean and free of obstacles. For maintenance, regularly check the saw blade for wear and tear and replace it when necessary. Lubricate the moving parts as recommended. The saw blade lowering and lifting system is hydraulic, so check the hydraulic fluid level periodically. Also, make sure the V - belt drive is in good shape and adjust it if needed. Keep the machine clean after each use to extend its lifespan.
