Compact yet powerful, these Elite EVS lathes are the epitome of perfection. They squeeze large - scale features into a small footprint, making them ideal for schools, small workshops, and engineering labs.
These lathes are truly elite, featuring certified Meehanite® castings, an electromagnetic brake, a three - jaw chuck, ball - bearing mounted steady and follow rests, and CNC - style lighting with an enclosed splash guard. They're also CSA/CUS certified.
- 4 - Position Carriage Stop for precise control
- Standard chuck guards on all ELITE lathes for enhanced safety
- Front - facing chip pan for easy chip removal

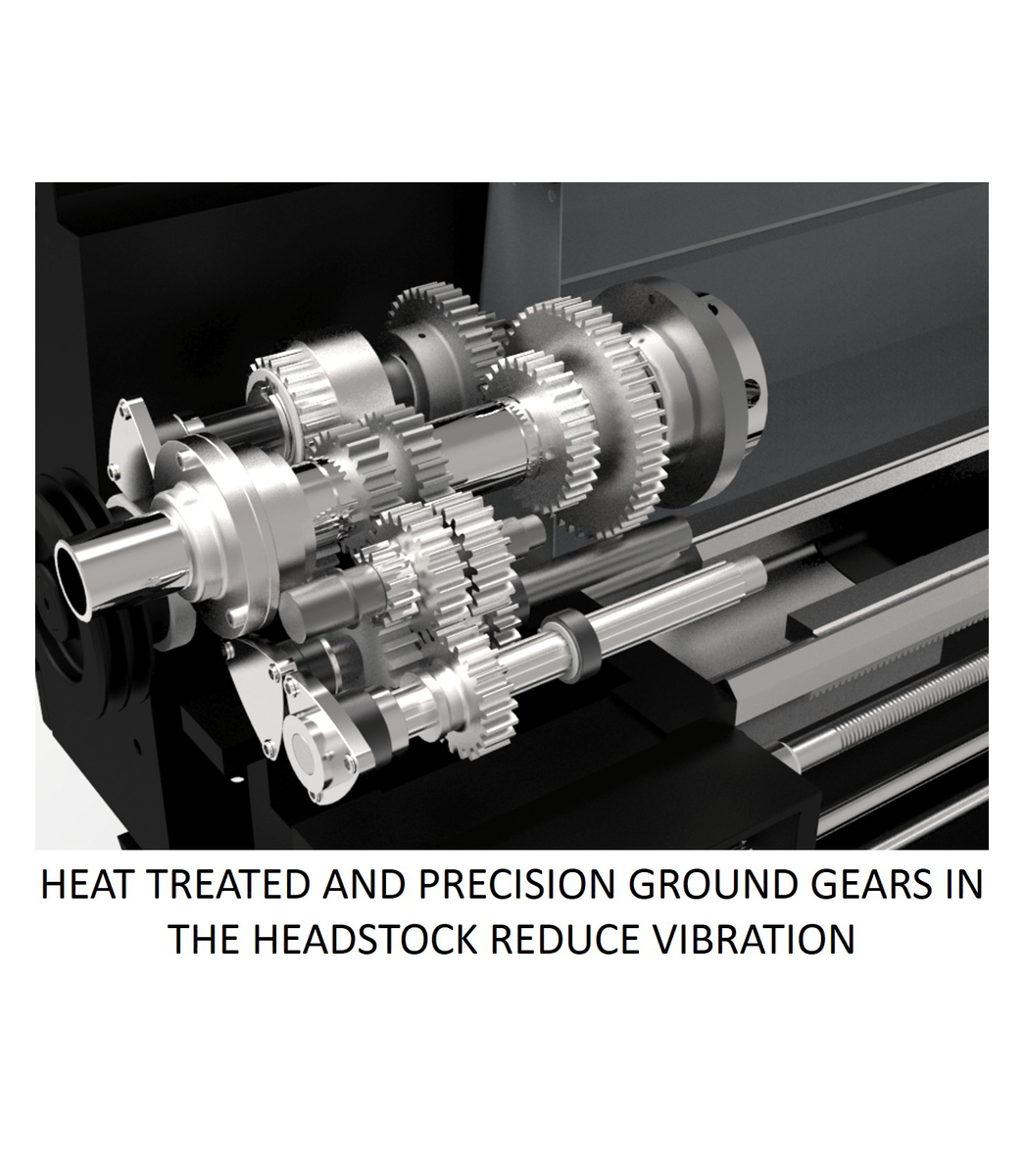

- Hardened and ground headstock gears to minimize vibration
- Integrated locking tool cabinet on 12' Lathe for convenient storage
- Inverter drive system for infinitely variable spindle speeds
- LED RPM readout for accurate turning speeds
- Two - speed gearbox with a wide speed range from 40 - 365 RPM (low) to 165 - 2000 RPM (high)
| Stock Number | 892321 |
|---|
| Compound Slide Travel (In.) | 3 - 1/2 |
|---|
| Drive | EVS |
|---|
| Length of Gap (In.) | 9 - 1/2 |
|---|
| Max Tool Size (In.) | 1/2 x 1/2 |
|---|
| Motor (HP) | 2HP, 230V, 3ph |
|---|
| Number of Inch Threads | 34.0000 |
|---|
| Number of Longitudinal and Cross Feed Rates | 50 |
|---|
| Number of Metric Threads | 33.0000 |
|---|
| Overall Dimensions (L x W x H) (In.) | 71 x 30 x 60 |
|---|
| Prop 65 | Cancer and Reproductive Harm |
|---|
| Range of Cross Feeds (IPR) | 0.0005 - 0.015 |
|---|
| Range of Inch Threads (TPI) | 2 - 56 |
|---|
| Range of Longitudinal Feeds (IPR) | 0.0016 - 0.046 |
|---|
| Range of Metric Threads | 0.5 - 12 |
|---|
| Range of Spindle Speeds (RPM) | 0 - 2,000 |
|---|
| Size | 12 x 36 |
|---|
| Spindle Bore (In.) | 1 - 9/16 |
|---|
| Spindle Mount | D1 - 4 |
|---|
| Spindle Taper with Sleeve | MT - 5 |
|---|
| Steady Rest Capacity (In.) | 1/4 - 2 - 1/2 |
|---|
| Style (Type) | ELITE EVS |
|---|
| Swing Over Bed (In.) | 12 |
|---|
| Swing Over Cross Slide (In.) | 7 - 5/16 |
|---|
| Swing Through Gap (In.) | 17 - 1/2 |
|---|
| Tailstock Spindle Travel (In.) | 4 |
|---|
| Taper in Tailstock Spindle | MT - 3 |
|---|
| Weight (Lbs.) | 1212 |
|---|
| Width of Bed (In.) | 7 - 1/2 |
|---|
Using your Elite 12x36 EVS Lathe is quite straightforward. First, make sure it's properly installed on a stable surface. You can adjust the spindle speed according to your needs with the inverter drive system and use the LED RPM readout to set the exact speed. The 4 - position carriage stop helps you control the movement precisely. When working, use the three - jaw chuck to hold your workpiece securely. Don't forget to put on the chuck guards for safety. For chip removal, the front - facing chip pan makes it easy to clean up. As for maintenance, keep the headstock gears clean and lubricated to reduce vibration. Check the electromagnetic brake regularly to ensure it works well. If you use the integrated locking tool cabinet, organize your tools neatly. Also, be aware of the Prop 65 warning about cancer and reproductive harm. And always follow the operating guidelines for the best performance and safety of your lathe.
