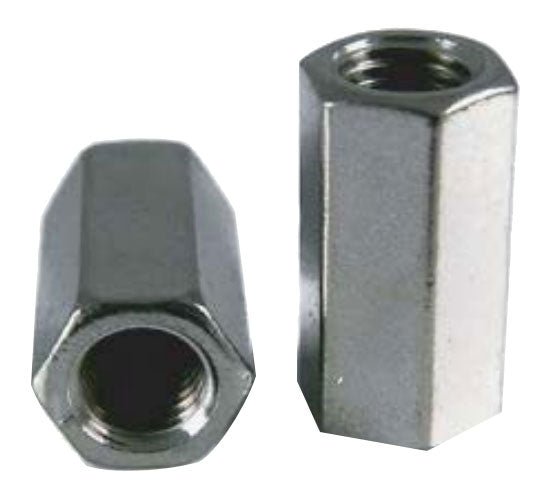

OCM, Inc's Euro Rod Hex Couplers are made of high-strength steel, serving as excellent thread accessories. These couplers come in two sizes, 15mm or 20mm, and have 2 - 1/2 threads per 1'. They feature a positive stop for added safety. Here are the detailed specifications:
| OCM Part No. | Size Inch | Length | Weight per pcs lbs | Safe Working Load lbs |
|---|
| ERSHC15 | 5/8' (15mm) | 50mm | 0.42 | 21,900 |
| ERLHC15 | 5/8' (15mm) | 100mm | 0.84 | 21,900 |
| ERSHC20 | 7/8' (20mm) | 50mm | 0.75 | 39,200 |
| ERLHC20 | 7/8' (20mm) | 100mm | 1.50 | 39,200 |
Using these Euro Rod Hex Couplers is quite simple. First, choose the right size according to your needs, either 15mm or 20mm. Then, connect the rods to the couplers tightly. Make sure the threads match well. When using, always keep in mind the safe working load. Don't exceed the load limit to avoid any potential danger. For maintenance, regularly check the couplers for any signs of wear or damage. If you notice any issues, replace them immediately. Store them in a dry place to prevent rusting. That's it, and you'll have a long - lasting and reliable connection with these couplers.
