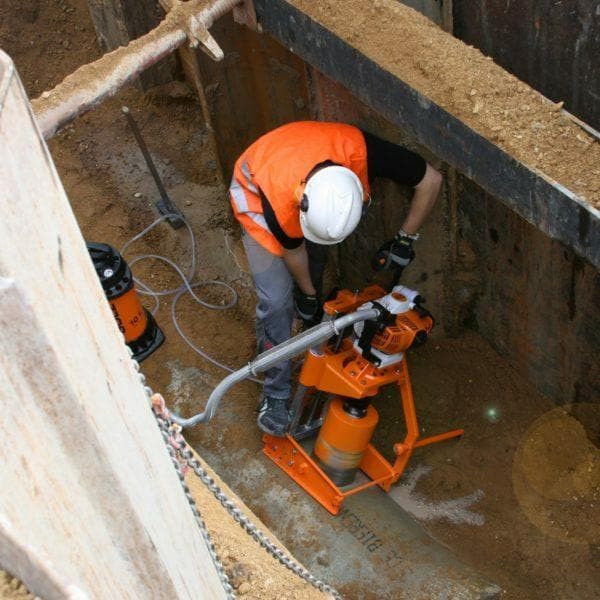

The ultimate and most contemporary solution for pipe and sewage drilling in house connections and surface water. The GÖLZ KB 350 comes with a Stihl 2 - stroke engine, offering top - notch performance.
- Advanced and cutting - edge design
- High - quality components made by magnesium high - pressure die casting. It has a compact and lightweight build, perfect for operating in tight spaces.
- Combines proven STIHL engine technology with the GÖLZ equipment concept
- Ensures high reliability, efficiency, and safety during operation
- Can operate independently when there's no public power supply

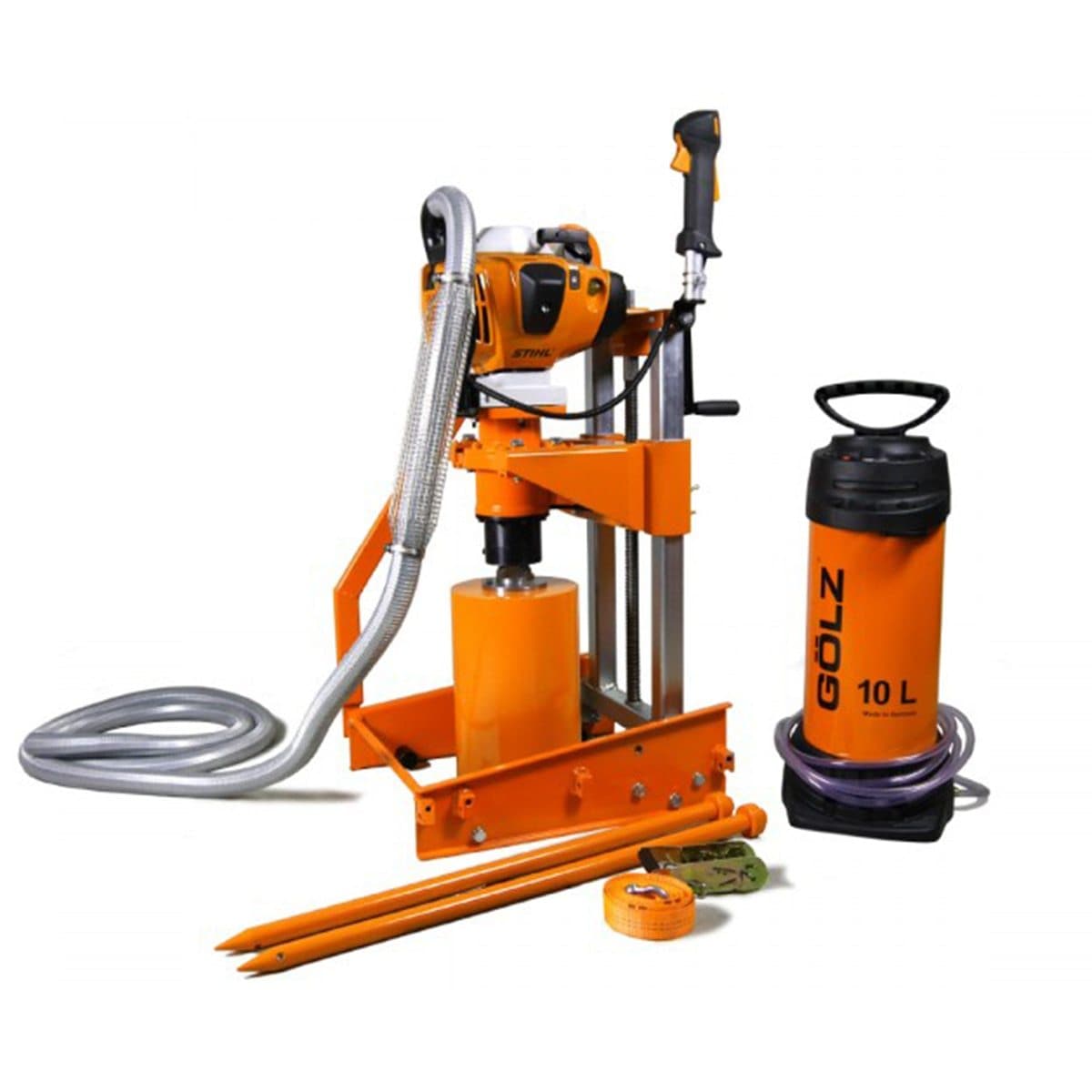

Gölz KB 350 standard package includes:
- Drill stand with a travel length of 18 inches (450 mm)
- Self - centering pipe base
- Ground frame with 2 ground fixing spikes

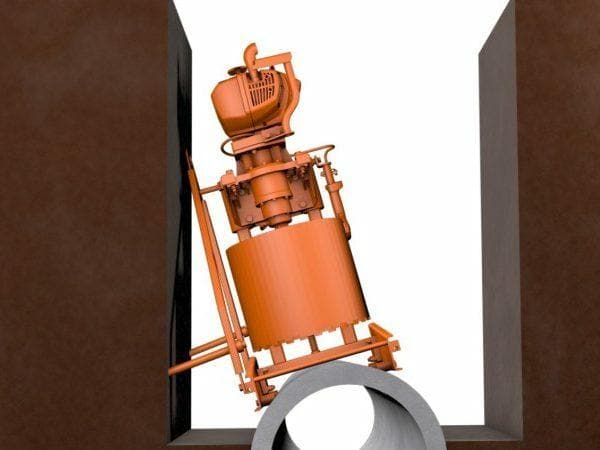

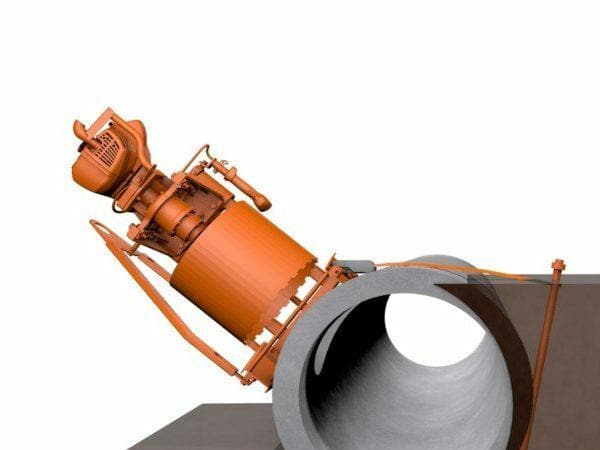

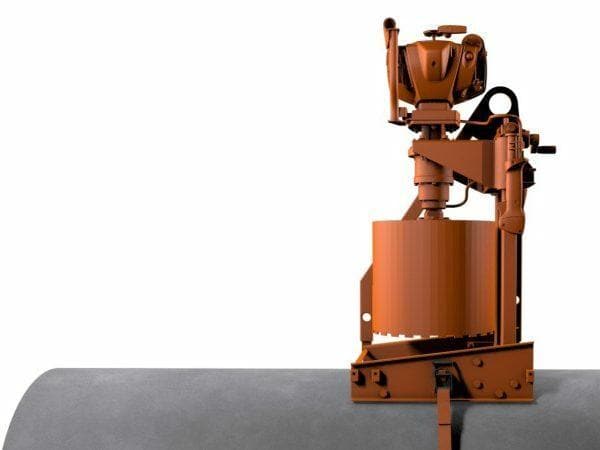

- 2.1 - meter fastening strap with a clamping ratchet for direct fixing on sewage pipes
- STIHL 2 - stroke engine with 2.8 kW (3.8 PS) power
- 4 - meter exhaust gas hose
- Gearbox with water swivel, running at 300 rpm
- Maximum drilling diameter of 14 inches (354 mm)
- 1¼” UNC drill bit connection
- Pressurized 10 - liter water tank
- Total weight with the Stihl engine is 45 kg
The KB350 drill stand is available with petrol, hydraulic, air, or electric motors.
Specifications
| KB350 - STIHL 2 - stroke engine |
| Motor | STIHL 2 - stroke engine |
| Voltage | — |
| Power | 2.8 kW (3.8 PS) |
| RPM | 300 min - 1 |
| Drilling Diameter | Ø 14 inches (354 mm) |
| Drill bit connection | 1¼” UNC |
| Water connection | Brass gland |
| Order number | 0295 353 2000 |
Using the Golz KB350 Core Drilling Machine is straightforward. First, assemble the drill stand and connect it to the power source according to the motor type you've chosen (petrol, hydraulic, air, or electric). Attach the drill bit using the 1¼” UNC connection. Fill the 10 - liter water tank and connect it to the water swivel on the gearbox. Place the ground frame with the fixing spikes on a stable surface and secure it. Use the fastening strap to fix the machine directly on the sewage pipe. Start the STIHL 2 - stroke engine and adjust the RPM to 300 min - 1. You're ready to start drilling. When operating, make sure to keep the area well - ventilated, especially when using the petrol engine. Don't exceed the maximum drilling diameter of 14 inches (354 mm). For maintenance, regularly check the engine oil level if it's a petrol engine. Clean the water tank and the brass gland water connection after each use. Lubricate the moving parts periodically to ensure smooth operation. If you encounter any problems, refer to the user manual or contact our customer service.
