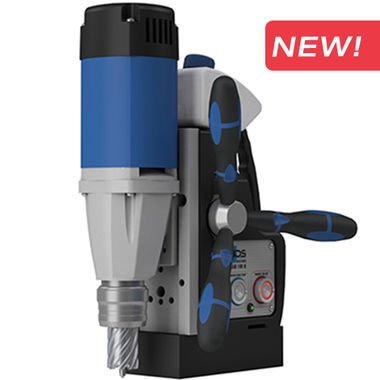

The brand - new CS Unitec MAB 100 K magnetic drill is a sleek and light - weight powerhouse. It outperforms others in its class. Designed for easy and fast drilling, it significantly reduces user fatigue. Weighing only 21.8 lbs, it's the lightest in the MAB series and one of the lightest on the market. This lightweight design makes hole alignment a snap and turns the tiring tasks of vertical and overhead drilling into an easy job. The drill comes standard with a quick - change keyless chuck, allowing for rapid switch - over between annular cutters and other cutting tools. It can drill holes up to 1 - 3/8” in diameter. Specifications include a 9 Amp/110 Volt motor, a 2 - 3/4' stroke, and a 460 RPM speed. It has a 6 - 5/8' L x 3 - 1/3' W magnet base and overall dimensions of 12 - 1/2' H x 7 - 2/5' L x 6 - 1/5' W. With a magnetic force of 3080 lbs on a 1' plate and a 3/4' quick - change keyless chuck arbor bore, it also includes an oil bottle for automatic lubrication. You can access the schematics and operating manual in PDF format.
Using the CS Unitec MAB 100 K magnetic drill is easy. First, make sure the drill is connected to a 110 - Volt power source. Then, use the quick - change keyless chuck to attach the appropriate cutter for your job. Place the drill on the surface where you want to drill, and the strong magnetic base will hold it firmly. Start the drill and guide it through the material at a steady pace. Remember to use the included oil bottle for automatic lubrication to keep the drill running smoothly. When you're done, turn off the drill and unplug it. Store it in a dry place. If you need to change the cutter, use the keyless chuck for a quick swap. Check the drill regularly for any signs of wear or damage, and replace parts as needed. Keep the motor clean and well - maintained to ensure its long - term performance.
