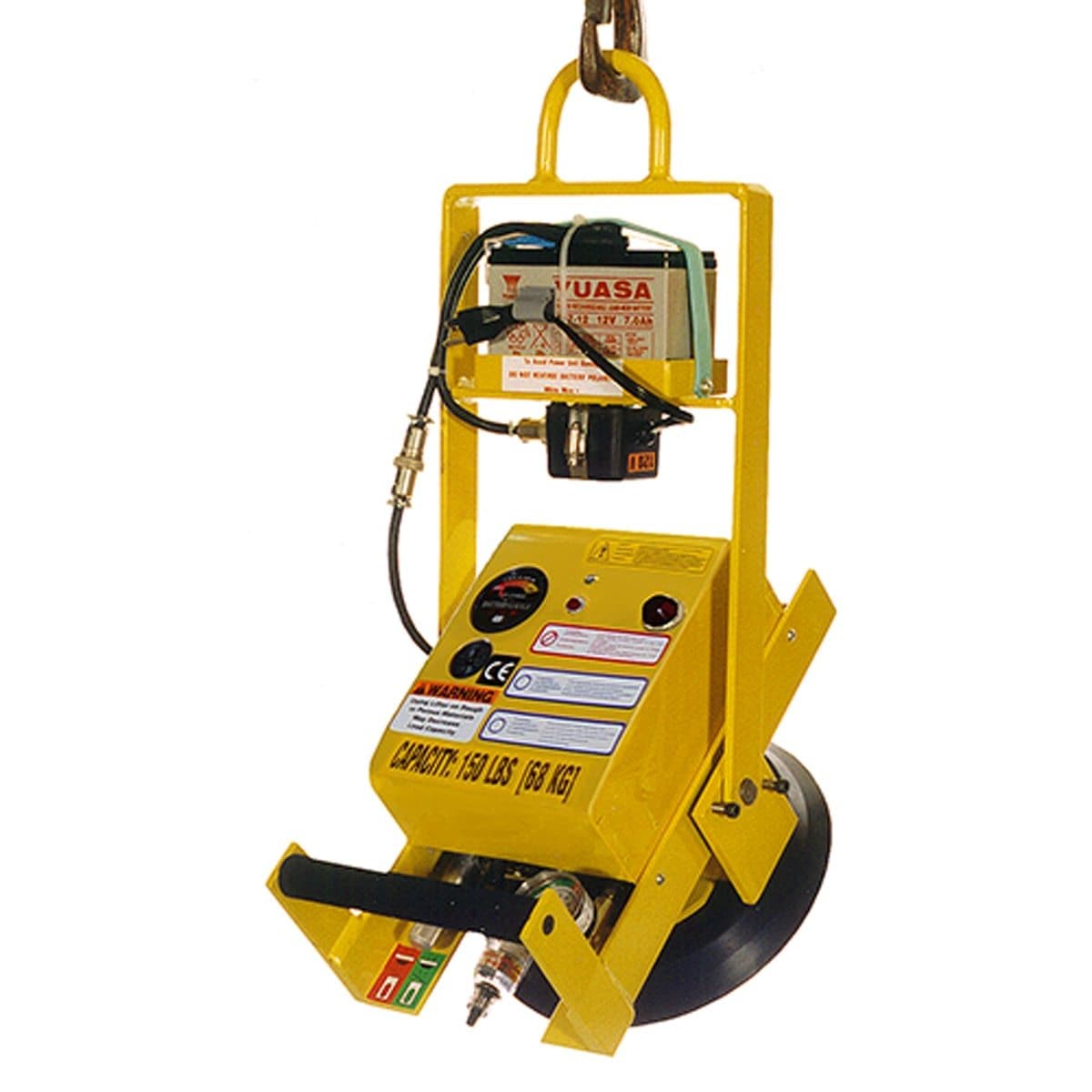

Manual Tilter 150 - MT1 Lifter Series

The Manual Tilter 150 is a custom - made lifting and handling equipment. It's part of the MT1 Lifter Series. This Powr - Grip® vacuum lifter has a single vacuum pad for quick attachment and release, allowing one person to handle heavy loads ergonomically. It comes in different models with various power sources: a mobile, battery - powered model (MT1HV11DC), a compressed - air - powered special order model (MT1HV11AIRS), and a corded AC - outlet - powered special order model (MT1HV11ACS). All models have a load capacity of 150 lbs [70 kg]. The standard pad spread is 11' x 11' [28 x 28 cm], and the standard vacuum pad is a 10' [25 cm] dia. lipped pad. The lifter weighs 45 lbs [21 kg] and has a standard operating power of 12 volts DC, 10 amps (other voltages available). It takes about 2 seconds to apply and 3 seconds to release the load. It can tilt manually 90° between upright and flat. Standard features include an on - board battery and charger, battery energy gauge, low vacuum warning light and buzzer, vacuum gauge, vacuum line filter, and vacuum reserve tank. Alternative power systems are also available, but their specifications may vary. WARNING: Cancer and/or Reproductive Harm - www.p65Warnings.ca.gov

Using the Manual Tilter 150 is easy. First, choose the right power source for your needs - you can go for the battery - powered option if you need mobility, or opt for the compressed - air or AC - powered models. Once you've set up the power, position the single vacuum pad on the load. It'll quickly attach to the load in about 2 seconds. Then, you can manually tilt the load up to 90° between upright and flat. When you're done, it'll release the load in about 3 seconds. Here are some important things to keep in mind. The minimum ambient and load temperature should be 32°F, and the maximum should be 100°F. Always check the battery energy gauge and the vacuum gauges to make sure everything is working properly. For maintenance, regularly clean the vacuum line filter to ensure good suction. Also, keep the battery charged if you're using the battery - powered model. If you choose an alternative power system, note that the specifications might be different, so contact us for more details. And don't forget about the warning: this product may cause cancer and/or reproductive harm, so take proper safety precautions.
