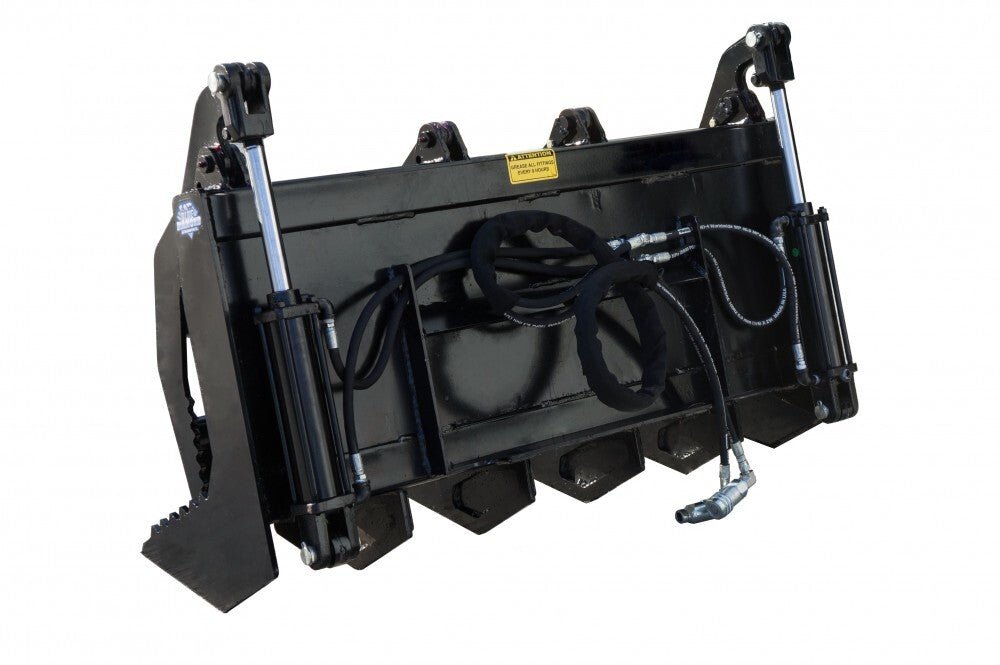

The Blue Diamond® Mini Grapple Rake is a must - have tool for mini skid steers. It's excellent for ripping up roots, piling them neatly, and grabbing the exact pile. This rake can also handle other tasks like dealing with brush or small logs. The independently operating top clamps let you pick up uneven loads. The serrated teeth on the bottom tines make it easy to tear out roots when raking through the dirt. Features include greaseable pivot points, independent dual top clamps, 9 - inch tine spacing, mounts for most machines, it opens to 32.5 inches and closes to 5.75 inches, and hoses and couplers are included. Available models are 42', 48', and 60' with different weights and dimensions as follows: for part number 107105 (42'), overall dimensions are 31 1/2' X 20' X 48' and it weighs 360 lbs; for part number 107110 (48'), dimensions are 31 1/2' X 20' X 48' and weight is 360 lbs; for part number 107120 (60'), dimensions are 31 1/2' X 20' X 60' and it weighs 450 lbs.
Using your Blue Diamond® Mini Grapple Rake is easy. First, attach it to your mini skid steer using the provided mounts that fit most machines. When you're dealing with roots, drive the rake over the area. The serrated teeth on the bottom tines will rip and tear out the roots. Once you've gathered a pile, use the independently acting top clamps to grab the pile. You can also use it for brush or small logs in the same way. Remember to grease the pivot points regularly to keep the rake working smoothly. Check the hoses and couplers for any signs of wear or damage before each use. If there are any issues, replace them immediately. When not in use, store the rake in a dry place to prevent rust.
