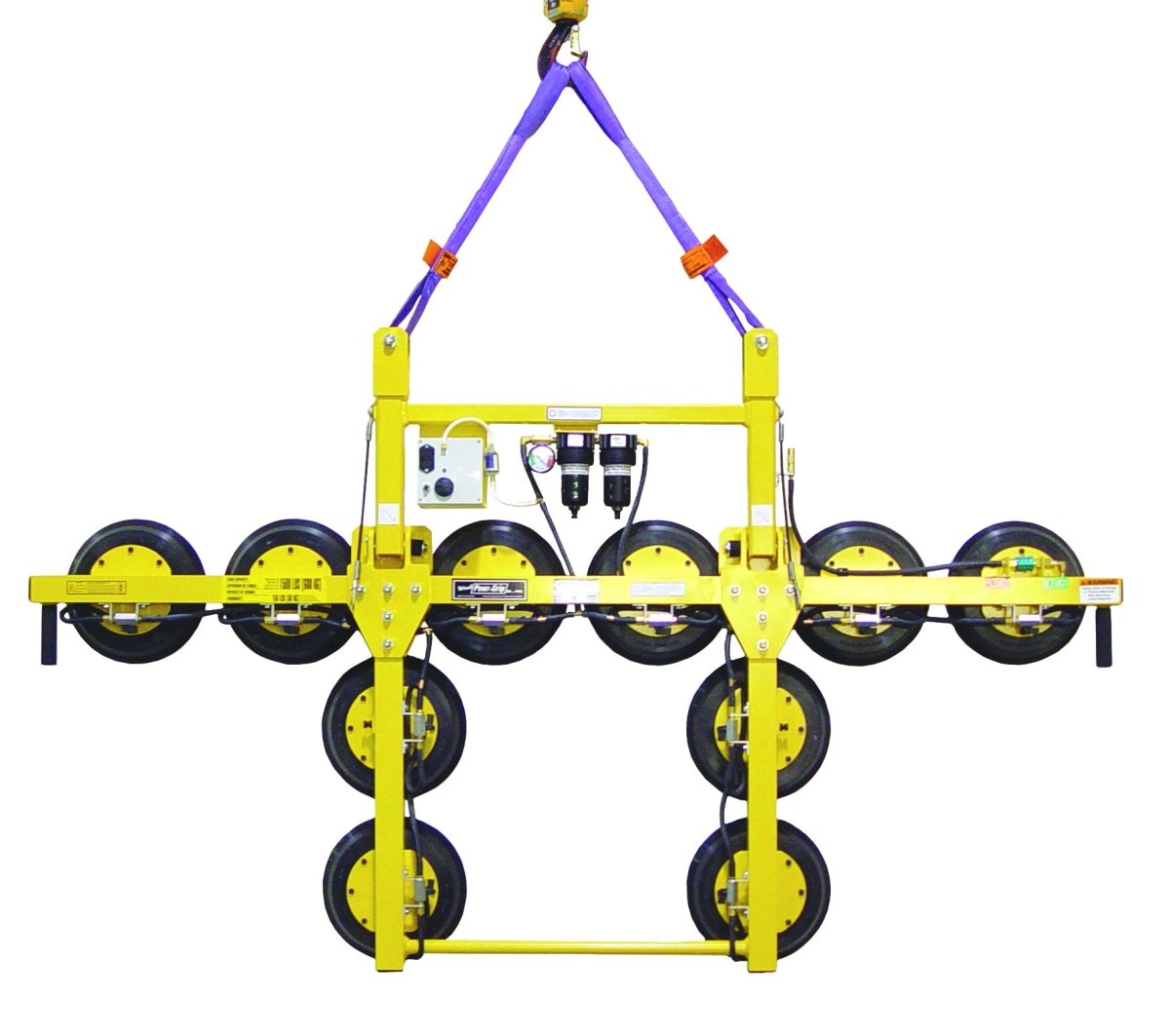

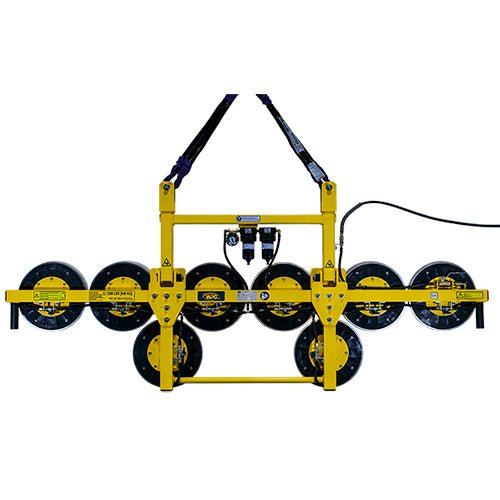

The MT Vacuum Lifter Series is expertly crafted to handle loads with textured surfaces. It offers a wide range of load capacities and power systems, so you can easily find the perfect lifter for your textured material tilting needs. This series is extremely popular in the Stone Industry and is a great fit for stone shops and granite countertop installations. There are four manual tilter models: Manual Tilter 1500 with a standard pad spread of 33 - 1/4' x 77 - 3/4' [85 cm x 197 cm], 10 pads of 10' [25 cm] diameter and a max load capacity of 1500 lbs [680 kg]; Manual Tilter 1200 with a spread of 21 - 1/4' x 77 - 3/4' [54 cm x 197 cm], 8 pads and a capacity of 1200 lbs [545 kg]; Manual Tilter 900 with a spread of 11 - 3/4' x 77 - 3/4' [30 cm x 197 cm], 6 pads and 900 lbs [410 kg] capacity; Manual Tilter 600 with a spread of 11 - 3/4' x 53 - 3/4' [30 cm x 137 cm], 4 pads and 600 lbs [270 kg] capacity. Each model comes in different power options (Air, AC, DC) and stock numbers for various production, fabrication, construction, and installation needs.

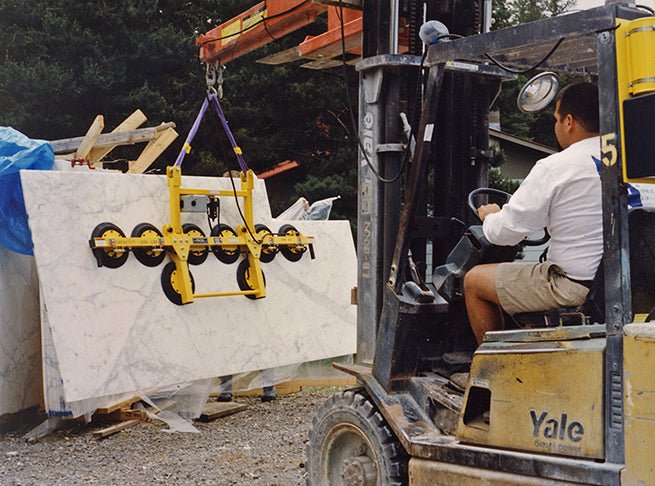

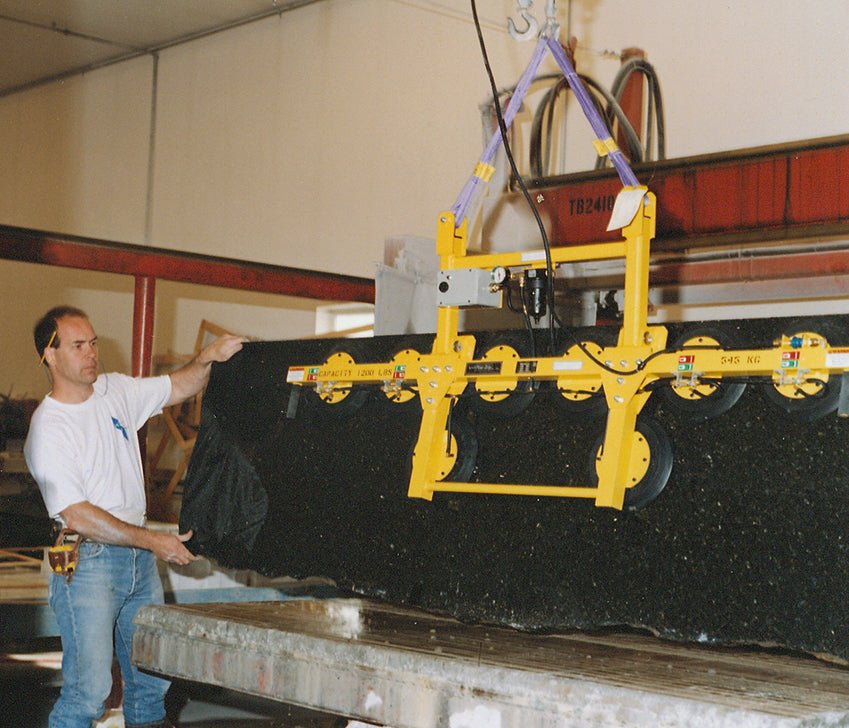

Using the MT Vacuum Lifter Series is straightforward. First, select the right model based on your load capacity needs. Connect it to the appropriate power source - air, AC, or DC as per the model. Place the vacuum pads on the textured surface of the load evenly. Once the pads are in place, activate the vacuum system. The replaceable sealing rings on the pads ensure a good suction. When you're done lifting, release the vacuum carefully. As for maintenance, regularly check the replaceable sealing rings on the vacuum pads. If they're worn out, replace them right away. Also, keep the power system clean and in good working condition. And always make sure not to exceed the maximum load capacity of the lifter to avoid any safety issues.
