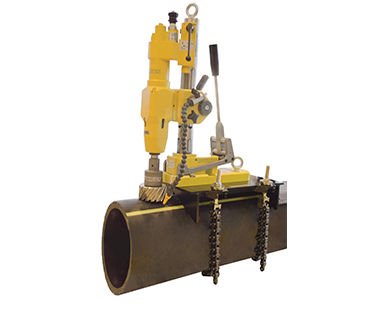

2 1345 0010 & 2 1345 0020 are perfect for use in Ex zones and subsea applications. This drill is a great choice for industrial, construction, marine, and mining tasks. It can drill through structural steel and other metals. The reversible motor allows for tapping. Specifications: Motor Power (Hydraulic): 3.4 HP, Weight: 50 lbs., Stroke: 12', Hole Capacity: 4' dia, Twist Drill Capacity: 1 - 1/4' dia, Tapping Capacity: 1 - 1/8' dia, No Load Speed, Variable: 40 - 250 RPM, Hydraulic Supply: 5.25 to 6 GPM @ 2000 PSI (140 Bar), Magnetic Base Size: 11 - 11/16' L x 4' W (2 1345 0010) | 12 - 4/5' L x 7 - 1/2' W (2 1345 0020), Dimensions: 21 - 1/2'H x 15 - 7/16' L x 7 - 3/4'W, Magnetic Force (3/8' plate): 1874 lbs. (2 1345 0010) | 3306 lbs. (2 1345 0020), Spindle: MT3, ATEX Certification: II2GExhIIBT5Gb. A wide - base model (Order Model 2 1345 0020) is available. Special magnets for pipe contours are available. Contact CS Unitec for more details.
Using this portable hydraulic magnetic drill is easy. First, make sure the drill is properly connected to the hydraulic supply within the specified range of 5.25 to 6 GPM at 2000 PSI (140 Bar). Place the drill on a flat surface and turn on the magnetic base to secure it. You can then start drilling through structural steel and other metals. For tapping, use the reversible motor. When using, keep an eye on the no - load speed which is variable from 40 to 250 RPM. After use, clean the drill to remove any metal shavings. Check the magnetic base regularly for any signs of damage. If you need to use it on pipes, contact CS Unitec for special magnets. Always follow safety guidelines and keep the drill in a dry place to avoid damage.
