Multi-Purpose Bench Vise, 5-1/2 Jaw Width, 5 Jaw Opening 2-3/4 Throat

Details

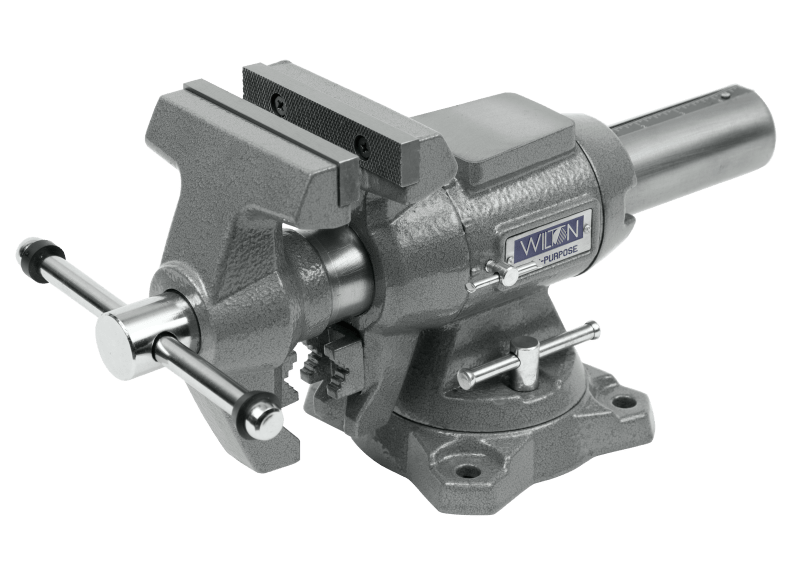

Wilton's amazing Multi-Purpose Bench Vise is a perfect tool for light tradesmen, utility work, MRO tasks, and general purposes. It comes with a 360-degree rotating head, allowing you to clamp materials at any angle effortlessly. With 30-degree indexing increments, you can set it up quickly. The replaceable pipe jaws and a V-jaw make it super easy to hold round objects vertically. The body and movable jaw are made of 30,000 PSI gray cast iron, and the base is 60,000 PSI ductile iron, ensuring long-lasting durability for a wide range of applications.

Features

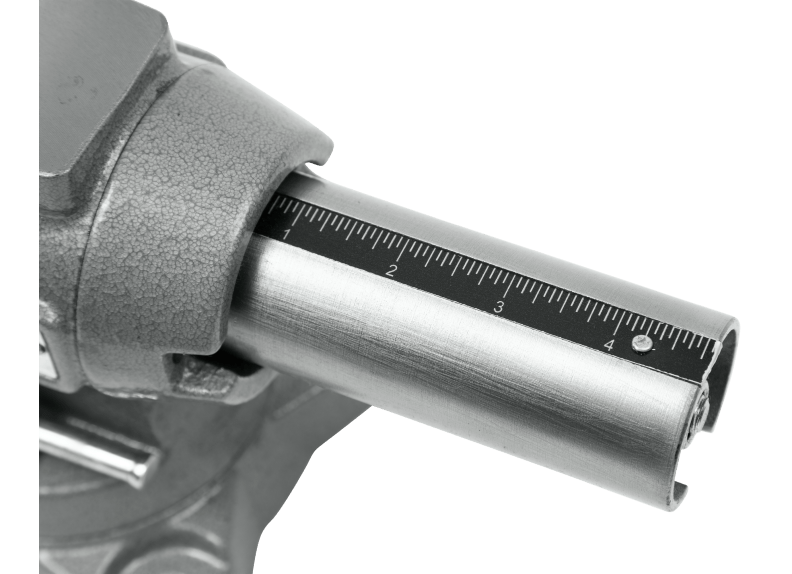

• Replaceable steel pipe jaws for flexibility

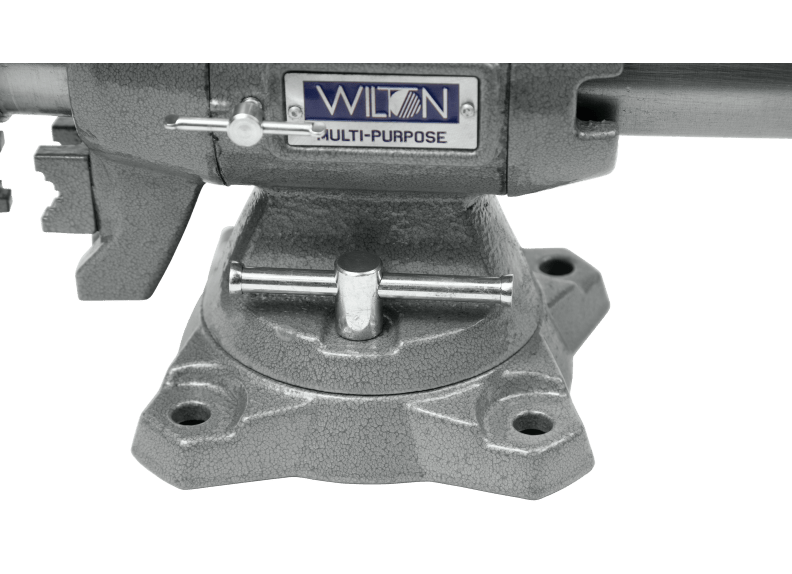

• 360° rotating head for clamping at any angle
• 30° indexing increments for quick setup

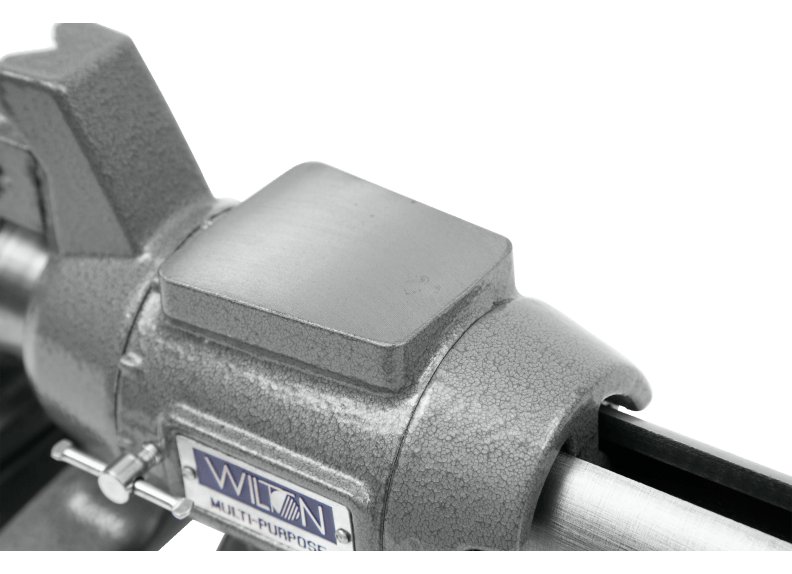

• Large built-in anvil for shaping materials

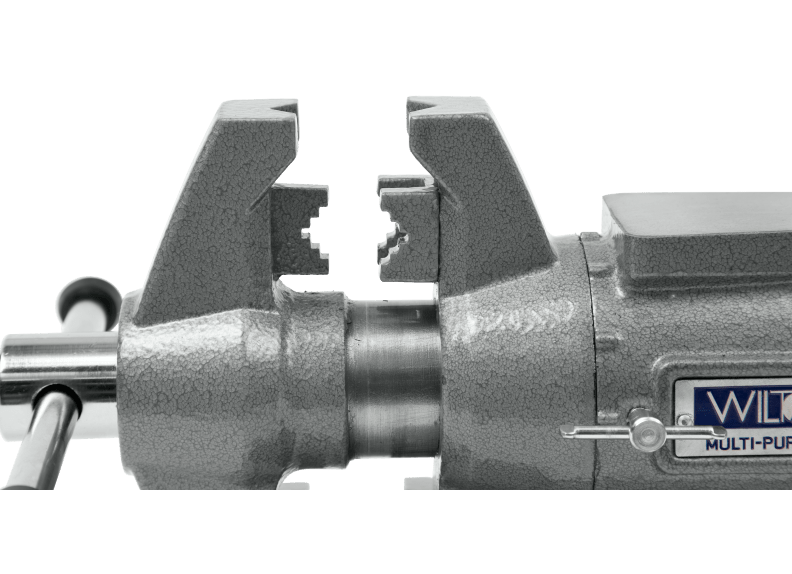

• Replaceable hardened steel jaws with a serrated pattern for a strong grip and long life
• V-jaw for holding round stock vertically

Specifications

Stock Number	28824
Jaw Width (In.)	5-1/2
Number of Mounting Points	4
Opening Capacity Max (In.)	5
Pipe Jaw Capacity (In.)	5/8 — 2-1/4
Prop 65	Cancer and Reproductive Harm
Throat Depth (In.)	2-3/4
Type of Base	360 Degree Swivel

Resources

Manual

Using this Wilton Multi-Purpose Bench Vise is easy. First, find a stable surface and use the four mounting points to secure it in place. To hold your material, adjust the 360-degree rotating head to the right angle. You can use the 30-degree indexing increments for a quick setup. If you're working with round objects, use the V-jaw to hold them vertically. The built-in anvil is great for shaping materials. When using the vise, be aware of the Prop 65 warning about cancer and reproductive harm. For maintenance, keep the vise clean and dry. Periodically check the replaceable parts like the pipe jaws and hardened steel jaws. If they show signs of wear, replace them to keep the vise working well. Refer to the manual for more detailed instructions.
