Details

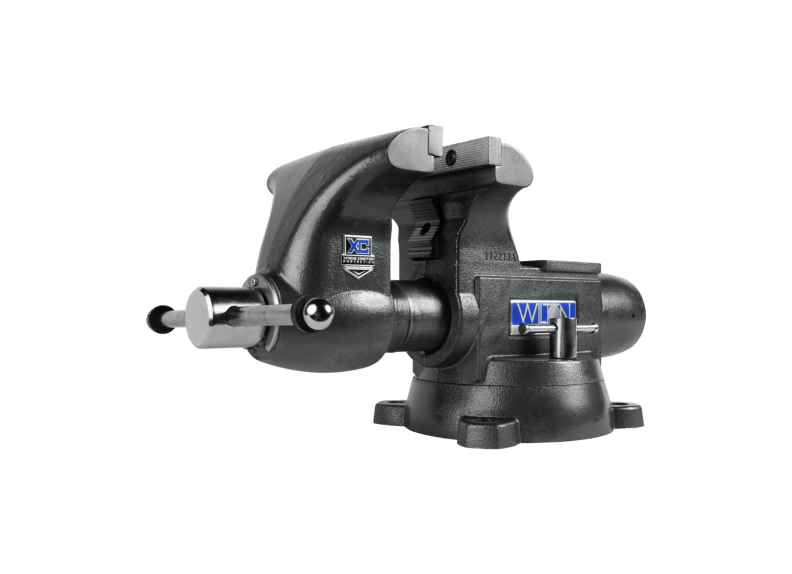

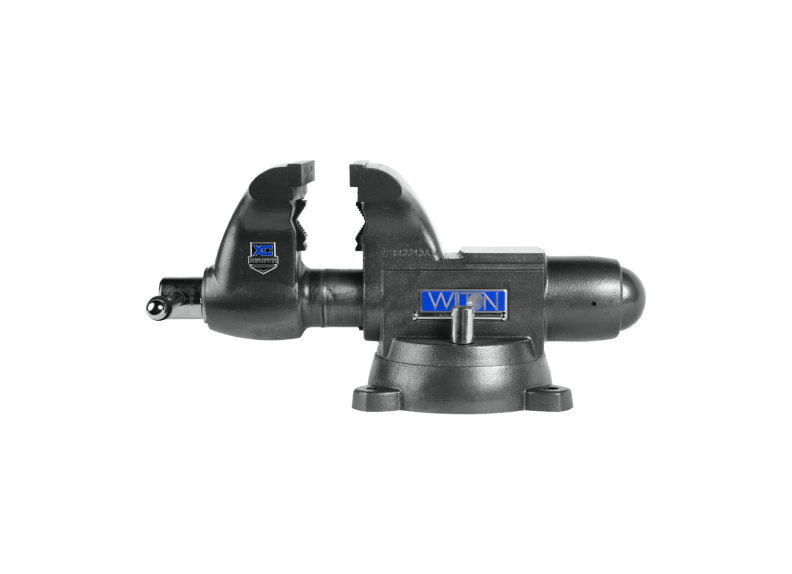

The Tradesman XC vise is built to handle tough clamping tasks in extreme environments. Unlike many vises with a fixed center nut, Tradesman's round channel vises have a rear - anchored nut. This gives a straight - line pull and even pressure, making the vise more durable. The round channel design encloses the spindle and nut assembly, keeping out debris and retaining lubrication for smooth, long - lasting operation. All Tradesman vises come with main jaws, pipe jaws, and a machined anvil work surface. The XC models feature electroless nickel coating on key components, which extends the vise's life in corrosive settings, saves money on repairs, and reduces downtime.
Features

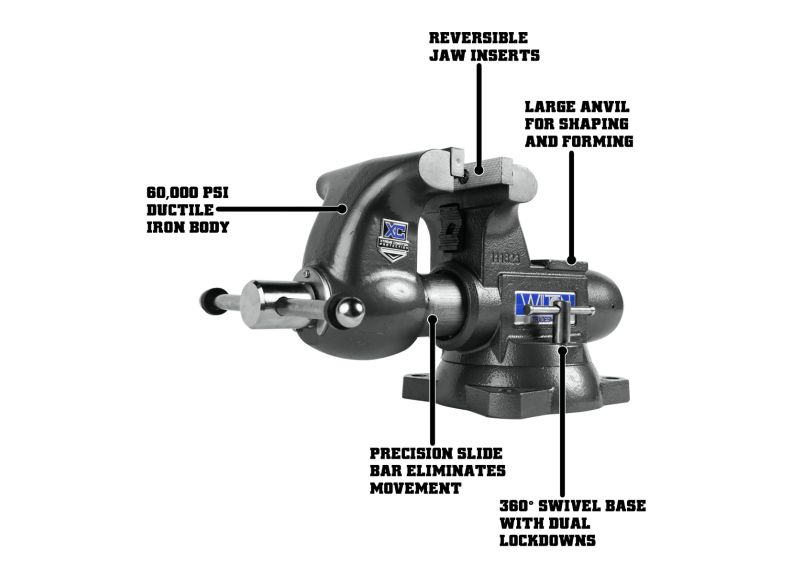

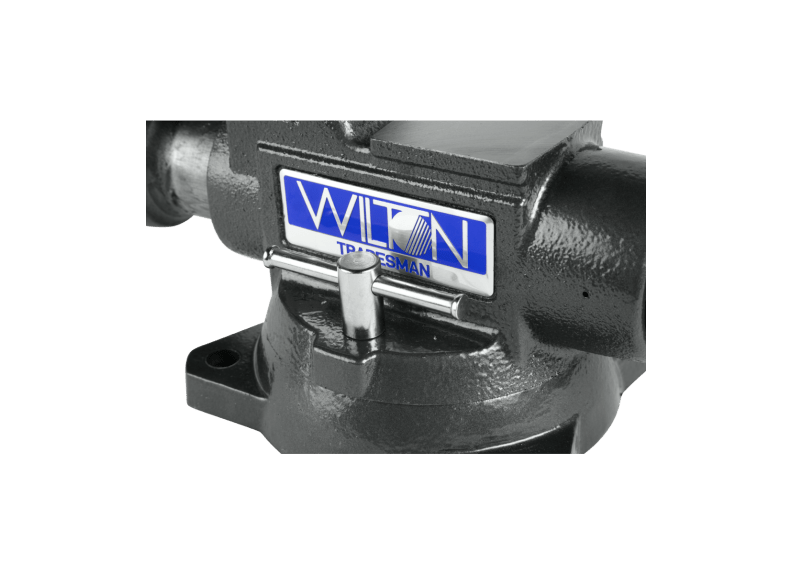

- 360° swivel base with double lockdowns for easy and secure use
- 60,000 PSI ductile iron body, jaw, and base, twice as strong as gray cast iron and nearly indestructible
- Enclosed design for smooth operation by keeping lubrication in and contaminants out
- Large anvil for shaping and forming materials
- Longer spindle nut for smooth movement and strong straight - line pull
- Precision slide bar to prevent front - jaw movement at any opening

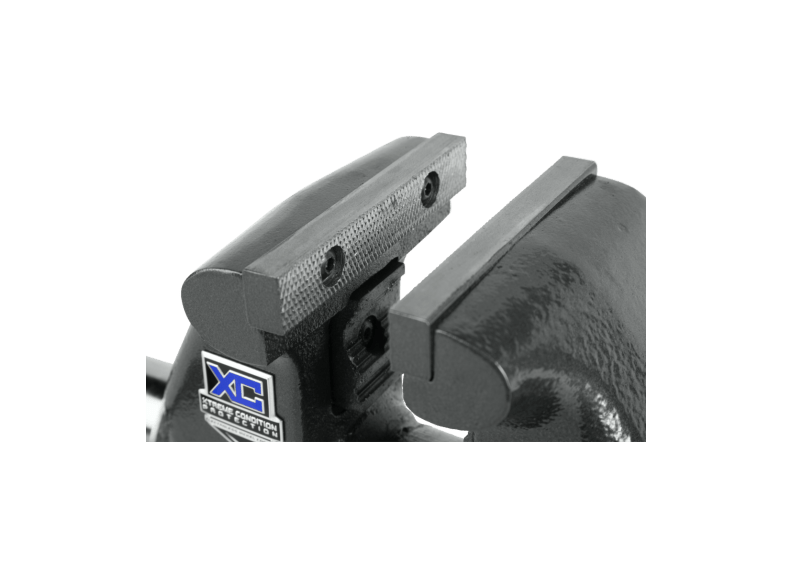

- Reversible jaw inserts with serrated and smooth sides for different gripping needs
Specifications
| Stock Number | WL9 - 28843 |
|---|
| Jaw Width (In.) | 8 |
|---|
| Number of Mounting Points | 4 |
|---|
| Opening Capacity Max (In.) | 6 - 3/4 |
|---|
| Prop 65 | Cancer and Reproductive Harm |
|---|
| Throat Depth (In.) | 4 |
|---|
| Type of Base | 360 Degree Swivel |
|---|
Resources
Manual
Using your Tradesman 1780XC bench vise is a breeze. First, find a stable surface and use the four mounting points to secure the vise. The 360 - degree swivel base with double lockdowns allows you to position the vise easily and keep it steady. You can use the main jaws for general clamping, and switch to the pipe jaws when working with pipes. The anvil is great for shaping and forming materials. When using the jaw inserts, choose the serrated side for a better grip on rough surfaces, and the smooth side for softer materials to avoid damage. Remember, this vise is marked with Prop 65 for Cancer and Reproductive Harm, so take proper safety precautions. For maintenance, thanks to the enclosed design, the vise keeps lubrication in and contaminants out. But it's still a good idea to check the lubrication periodically. If you work in a corrosive environment, the electroless nickel coating on key components will help extend the vise's life, but you should still clean it regularly to prevent corrosion buildup.
