Get Reversible Features at Forward Plate Prices
One of the Most Compact and Economical Reversible Plates

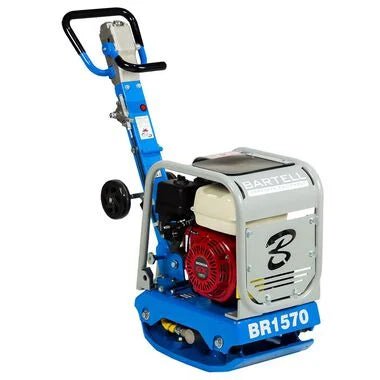

The BR1570 Reversible Compactor is the smallest model made by Bartell. Its small size makes it super versatile for contractors, suitable for a wide range of applications.
With its footprint size, the BR1570 isn't just for general compaction. It's also great when space is tight. You can use it instead of many popular forward plates at a comparable cost, but get the higher productivity of reversible features.
Thanks to its versatility and cost - effectiveness, the BR1570 can boost your profits in many ways.
Key Features
- 1570 kg of Compaction Force
- Lightweight - 177 lbs
- Honda Power
- Robust Design
- Compact Plate Size
Engine
Honda
Spec
GX160
Power Output Hp (Kw)
4.8(3.6) / 5.7(4.2)
Width, in. (mm)
14' (350)
Height, in. (mm)
35' (880)
Length, in. (mm)
35' (880)
Weight, lbs (kg)
177 (80)
Compaction Force
3461 lbf, 15.3 kN, 1570 kgf
Max Travel Speed
82 ft/min, 25 m/min
Using the BR1570 Reversible Compactor is quite straightforward. First, make sure the Honda engine is properly fueled and in good working condition. Start the engine following the Honda engine's startup instructions. Once it's running, you can guide the compactor to the area you need to compact. Whether it's a small, tight - spaced area or a general compaction job, this compact machine can handle it well. When using it, keep an eye on the compaction force and adjust the speed as needed. As for maintenance, regularly check the engine oil, air filter, and spark plug. Make sure the compacting plate is clean and free of debris after each use. If you notice any unusual noises or problems, stop using the compactor and have it checked by a professional. Also, store it in a dry place when not in use to prevent rust and damage.
