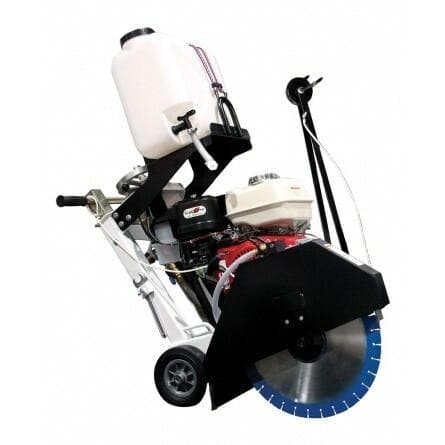

CC1300XL Small Walk Behind Concrete Saw

The CC1300XL Compact Walk-Behind Concrete Cutting Saw is a top - choice for general contractors. It can accommodate blades ranging from 14 to 20 inches, offering great versatility. This saw comes with a heavy - duty frame design that ensures long - lasting durability. The Cyclone air filter on Honda® models helps keep the engine clean. Its easy - to - maneuver push drive allows you to operate it effortlessly. The four - position heavy - duty handles provide a stable grip without any slack or rattling. With a through rear axle, it gains extra strength. The solid sealed and self - aligning blade shaft bearings offer smooth operation. The slip - on blade guard makes it easy to access the blade. Three V - belts deliver extra power to the blade shaft. You can choose to saw on the left or right side. An optional water tank is available for effective dust suppression. In terms of specifications, the maximum depth of cut is 4 - 5/8 inches with a 14 - inch blade, 6 - 5/8 inches with an 18 - inch blade, and 7 - 5/8 inches with a 20 - inch blade. The blade shaft RPM is 2,600, and the blade shaft diameter is 1 - 1/4 inches. The arbor size is 1 inch with a single drive pin, and the blade can be mounted on the right or left. The blade raise/lower is controlled by a precision screw feed, and the handlebars are adjustable. The Parts List # for gas models is 1801801, for electric models is 1801809, and the Operator Manual # is 1801459. Briggs 2100 Series models come with a Diamond Products 3 - year extended warranty, with horsepower and torque rated by the engine manufacturer.

Using the CC1300XL Concrete Saw is quite straightforward. First, choose the right blade size between 14 and 20 inches according to your cutting needs. Make sure to adjust the handlebars to a comfortable position for you. When starting the saw, follow the engine manufacturer's instructions. For Honda® models, the Cyclone air filter will help keep the engine in good shape. To cut, just use the push drive to move the saw forward and use the precision screw feed to adjust the blade height. You can choose to cut on the left or right side as you like. If you're working in a dusty environment, consider using the optional water tank for dust suppression. As for maintenance, regularly check the blade shaft bearings and V - belts for any signs of wear. Keep the air filter clean, especially if you're using the saw in a dirty area. For parts replacement, refer to the Parts List # (1801801 for gas models and 1801809 for electric models). And always have the Operator Manual # 1801459 on hand for detailed guidance. If you have a Briggs 2100 Series model, enjoy the 3 - year extended warranty from Diamond Products.
