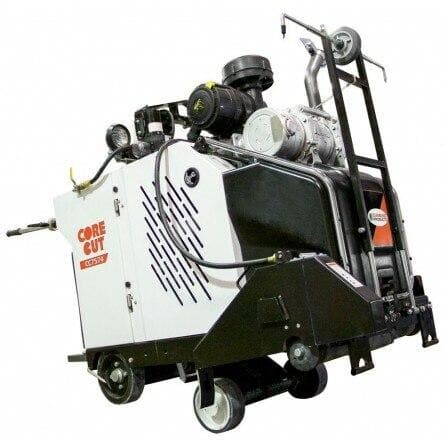

CC7574DD In-Line Walk Behind Saw

The CC7574DD In - Line Walk - Behind Saw offers increased production, lower maintenance costs, and better fuel efficiency. It has a 20'-48' blade capacity and is diesel - powered. The Tier 4 Final Deutz® diesel engine provides reliable performance. An enhanced clutch assembly (single speed only) allows the blade to disengage while the engine runs. It features easy - to - maneuver self - propelled drive, the strongest frame on the market, a hydraulic wheel motor drive, and a blade shaft gearbox - oil bath for low maintenance. With a 4 - stage air filter system, it can reach a maximum cutting depth of 19 - 3/4'. The maintenance - free DVERT® diesel oxidation catalytic converter (DOC - only, no DPF) and high - pressure common rail electronic fuel injection ensure efficient operation. The modern computer interface engine controls add to its functionality.

Using the CC7574DD In - Line Walk - Behind Saw is easy. First, make sure there is enough diesel fuel in the 9 - gallon tank. Start the Deutz® Turbo Diesel engine following the normal starting procedure. Select the appropriate blade size according to your cutting needs. You can mount the blade on the right or left side as you prefer. Use the electro - hydraulic pump to raise or lower the blade. When operating, the self - propelled drive makes it easy to move forward or backward at a speed of 0 - 250 feet/min. Keep in mind that for safety, always wear appropriate protective gear. When the engine is running, be careful around the blade. For maintenance, regularly check the 4 - stage air filter with a restriction indicator. The blade shaft bearings are in an oil bath, but still, check the oil level occasionally. Also, keep an eye on the coolant in the dual multi - spray tubes. If you notice any abnormal noises or performance issues, stop the saw immediately and check for problems.
