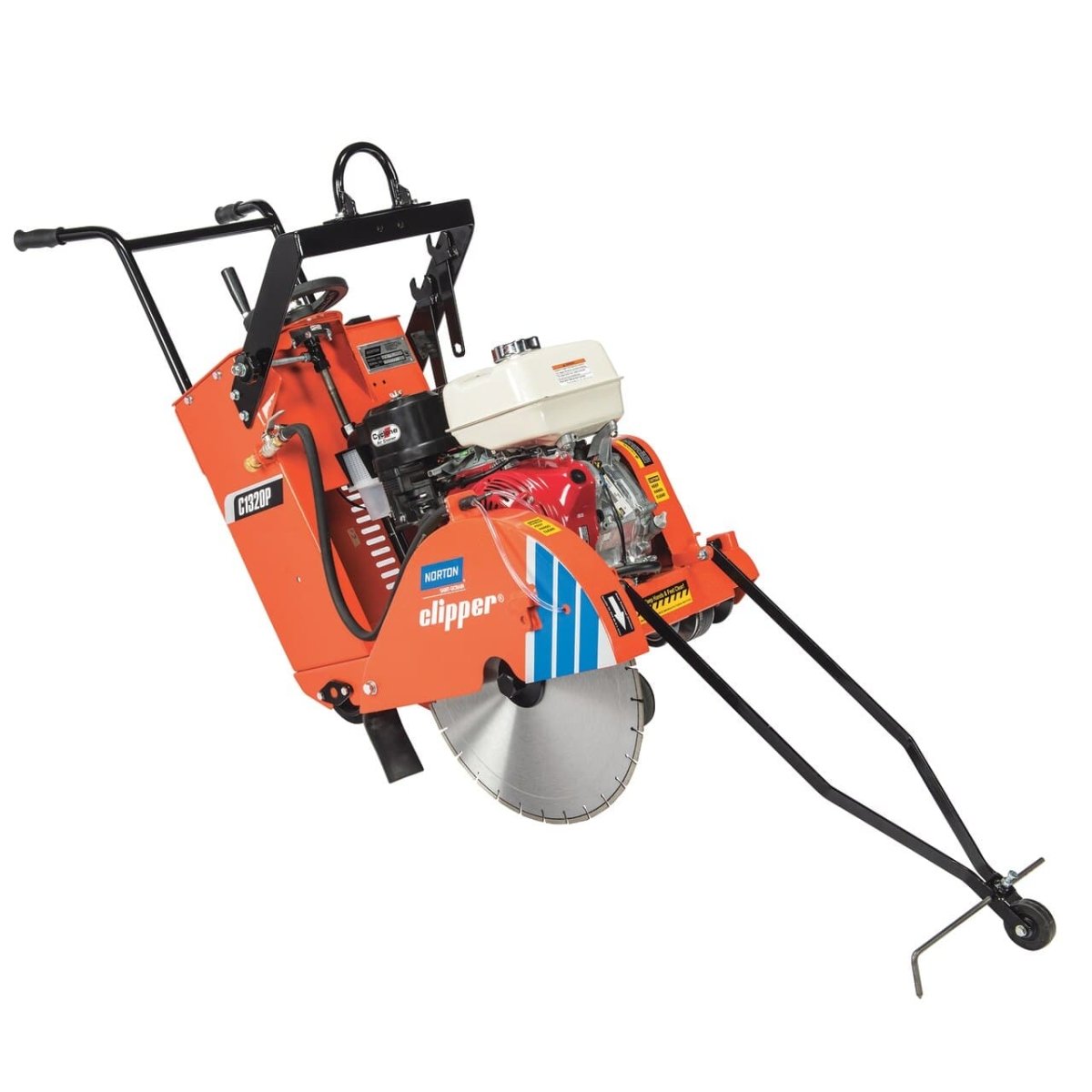

Clipper C1320P Gas-Powered Small Push Walk-Behind Saw for Contractors
For small to medium contractor jobs, you need a cost - effective and high - performing solution. The C1320P is that perfect saw. It has a heavy - duty box frame that won't bend easily, and it's powered by a high - performing 13HP Honda engine. The heavy frame ensures a straighter cut. Changing or adjusting belts is a breeze with the single - screw tensioner.
- Power Source: 2 Cylinders 4 Cycle
- Engine Power: 13.0
- Propelling: Push
FEATURES & BENEFITS
- Spindle - saver blade flanges let the blade rest on the inner flange. You only need to replace the flange, not the whole shaft.
- Four V - Belts transfer maximum power to the blade shaft.
- The reinforced frame and axle make it the strongest in its class.
- The single - screw tensioner simplifies belt adjustment and replacement.
Engine power: 13.0
| MAX BLADE DIAMETER | MAX CUTTING DEPTH | ARBOR HOLE | BLADE FLANGE DIAMETER | ROTATION SPEED | MOTOR/ENGINE TYPE | SIDE OF CUT | POWER SOURCE | PART # |
|---|
| 20 In. | 8 In. | 1 In. | 4 In. | 2520 | Honda | Left or Right | Gas | 70184642456 |
Using the Clipper C1320P saw is straightforward. First, make sure there's enough gas in the tank and the engine is properly maintained. Start the Honda engine following the normal procedures. Then, push the saw forward at a steady pace for a smooth cut. You can choose the left or right side for cutting according to your needs. When it comes to maintenance, regularly check the belts. If they need adjustment or replacement, use the single - screw tensioner. Also, keep an eye on the blade flanges. Thanks to the spindle - saver design, you can just replace the flange when necessary. Make sure the engine oil is changed as per the Honda engine's manual. And always store the saw in a dry place when not in use. Before each use, do a quick inspection of the frame, axle, and other parts to ensure everything is in good condition.
