Description

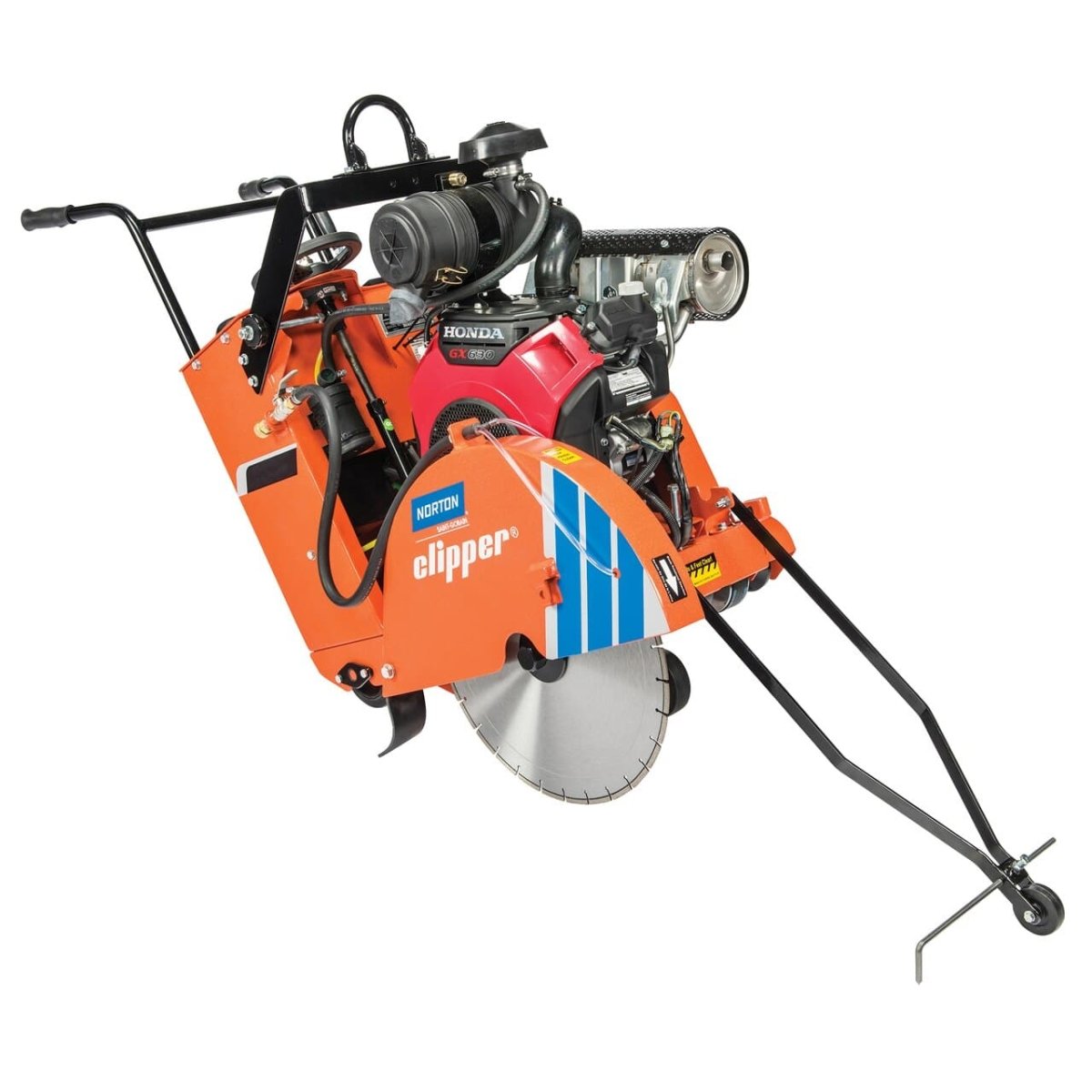

The Clipper C20 Series mid-range walk-behind saw runs on gas. It features an uncomplicated yet reinforced frame, perfect for mid-sized job cutting. With blade options of 16', 20' or 24', it meets various cutting needs. The self-propelled hydrostatic transmission and 4-V belt drive deliver maximum power to the blade shaft, ensuring easy operation and reliable performance. Key features include a simple maintenance design for quick belt tensioning and replacement, spindle-saver blade flanges that let you replace just the flange instead of the whole shaft, a raised axle with a heavy-duty boxed-in design to prevent bending during transport, and a reinforced frame that can handle the tough demands of mid-sized jobs. The engine has 2 cylinders and a 4-cycle power source with 20.0 engine power and automatic propelling. This saw also comes in a larger model, the Clipper C35. Specifications: Max blade diameters are 16, 20, or 24 inches with corresponding max cutting depths of 6, 8, or 10 inches. Arbor hole is 1 inch, blade flange diameter is 4 inches. Rotation speeds are 2520 (for 16' and 20' blades) and 2120 (for 24' blade). It uses a Honda motor/engine, can cut on either the left or right side, and is powered by gas. Part numbers are 70184627369 (16' blade), 70184627370 (20' blade), and 70184627371 (24' blade).
Using your Clipper C20 Series Saw is easy. First, make sure you've filled the gas tank. Then, start the engine following the Honda engine's starting instructions. Once it's running, you can use the self - propelled feature to move the saw around your work area. You can choose the blade size according to your cutting needs. For 16 - inch cuts, use the 16 - inch blade, and so on. When cutting, keep a steady pace and let the saw do the work. Remember to wear appropriate safety gear like goggles and gloves. For maintenance, check the belt tension regularly. If it's loose, you can easily adjust it thanks to the simple maintenance design. Also, when it's time to replace the blade, the spindle - saver blade flanges make it easy. You only need to replace the flange instead of the whole shaft. During transport, be aware that the raised axle with a heavy - duty boxed - in design is strong, but still handle the saw carefully to avoid any unnecessary bumps. And if you need a bigger saw, you can consider the Clipper C35 model.
