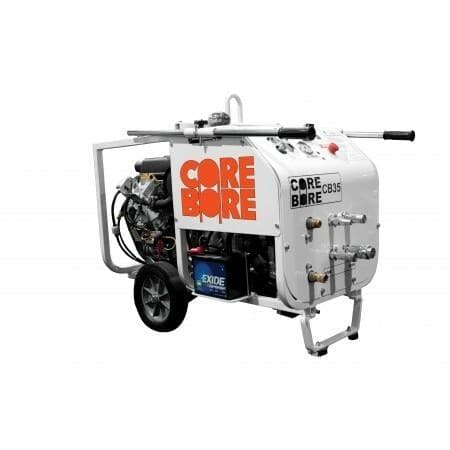

CP35BVXL Gas Power Unit

The CB35BVXL Gas Power Unit is gasoline powered and packs a punch with a 35 HP Briggs - Vanguard gas engine. It features a heavy - duty frame design for long - lasting durability. The adjustable handles make it easy to maneuver, and the single lifting point simplifies transportation. Two large wheels ensure smooth and easy moving. The fully adjustable flow control allows you to customize the output as per your needs. It's water - cooled for better performance. Specifications include a hydraulic flow of 0 - 17 gpm, a relief pressure of 3000 psi, a hydraulic tank capacity of 11 gallons, and a fuel tank capacity of 4.4 gallons. It comes with a 25' x 5/8' hose and quick disconnects of 1/2' and 3/4'. The engine is a Briggs & Stratton Vanguard® gasoline engine, with a part number of 4220028 and catalog number of 03109.

Using the CB35BVXL Gas Power Unit is quite straightforward. First, make sure the fuel tank has enough gasoline. You can then start the Briggs - Vanguard gas engine following the standard engine starting procedures. Adjust the handles to a comfortable position for easy control. Use the fully adjustable flow control to set the desired output according to your task. When moving the unit, use the two large wheels. Just grab the handles and roll it to the required location. For lifting, use the single lifting point. Important things to note: Always operate the unit in a well - ventilated area due to the gasoline engine. Check the fuel and hydraulic fluid levels regularly. Avoid overloading the unit beyond its specified capacity. As for maintenance, change the engine oil at the recommended intervals. Keep the unit clean and check the hoses and quick disconnects for any signs of wear or leakage. Make sure the water - cooling system is functioning properly to avoid overheating.
