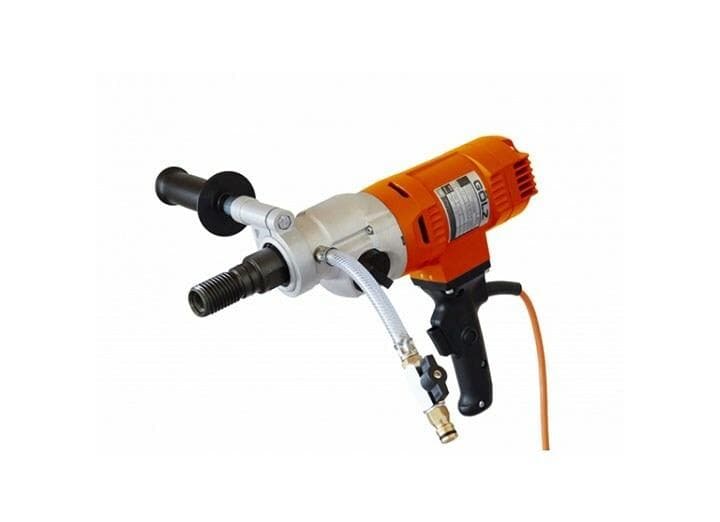

FB23P 2 - Speed Heavy - Duty Hand - Held Core Drill
This powerful FB23P core drill offers great performance. It runs on 110V, 20A, 50 - 60 Hz and has an input power of 2.7 kW and an output power of 1.75 kW. With two speeds (520/1400 min - 1), it can handle various drilling tasks. The handheld drilling diameter ranges from 7/8 in. (20 mm) to 4 in. (110 mm), and when used with a stand, it can drill from 7/8 in. (20 mm) to 8 in. (200 mm). It has a 1 in. UNC drill bit connection and comes with PRCD safety feature. Weighing only 13 lbs (5.9 kg), it's easy to handle. Order number: 0295 007 5020.
Using the FB23P hand - held core drill is quite simple. First, make sure the drill is properly connected to a 110V power source with the right amperage and frequency. Select the appropriate speed according to your drilling task. For smaller diameter holes, you can use the handheld mode. If you need larger holes, set it up on a stand. When drilling, keep the drill steady and apply even pressure. As for safety, always remember that the drill has a PRCD safety feature, but still wear safety goggles and gloves. For maintenance, after each use, clean the drill bit and the body of the drill. Store it in a dry place to prevent rust and damage. Check the power cord regularly for any signs of wear and tear.
