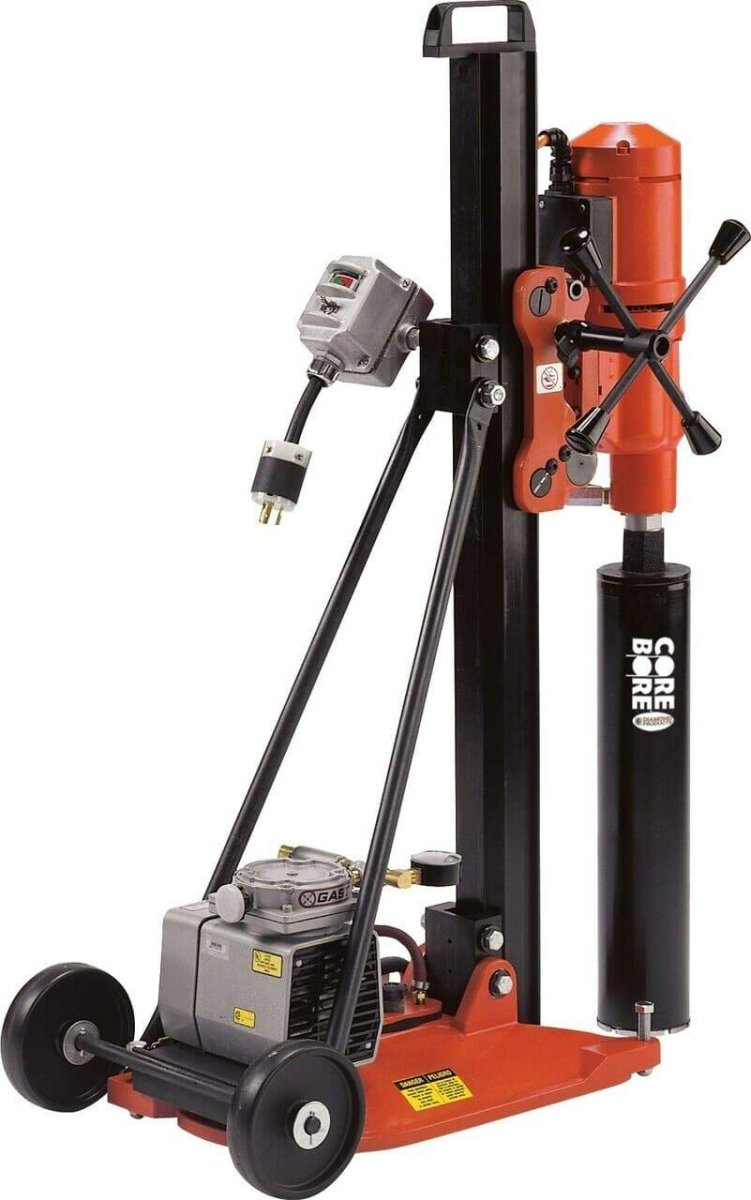

M-5 Heavy Duty Quick Disconnect Core Rigs

The Heavy Duty M-5 Quick Disconnect Core Rigs are a game - changer in the drilling industry. They are easily adjustable and come with a quick - release motor mount for hassle - free use. With a 12' standard bit capacity (20' with spacers), it's the lightest big rig on the market! Key features and benefits include: a quick - release motor mount, a 4 - spoke sliding handle that can be used on either the right or left side, a positive carriage lock for stability, a 2 - 1/2' x 3' extruded aluminum lightweight column (mast) with hard anodization to prevent wear, a quick - release vacuum button, a top - carrying handle (ceiling jack available), large bit capacity in a smaller rig system, the ability to mount hydraulic motors, an angle stand for drilling up to 45°, double - column support for increased stability, and easily adjustable slide bearings. Available engine/motor models include DK22, DK22S, and CB744 with different power ratings and RPMs, and rigs are available both with and without a vacuum pump.

Using the Heavy Duty M-5 Quick Disconnect Core Rigs is straightforward. First, make sure to choose the right engine/motor model according to your power needs. If you're using the vacuum base, press the quick - release vacuum button to secure the rig firmly. Adjust the 4 - spoke sliding handle to your preferred side for comfortable operation. When drilling at an angle, use the angle stand to set it up to 45°. Remember, always check the bit capacity and use the appropriate bit size. For maintenance, keep the extruded aluminum column clean and free from debris. The hard anodized surface helps prevent wear, but regular inspection is still necessary. If you're not using the ceiling jack, keep it in a safe place. And when you're done using the rig, turn off the motor and store it in a dry place.
