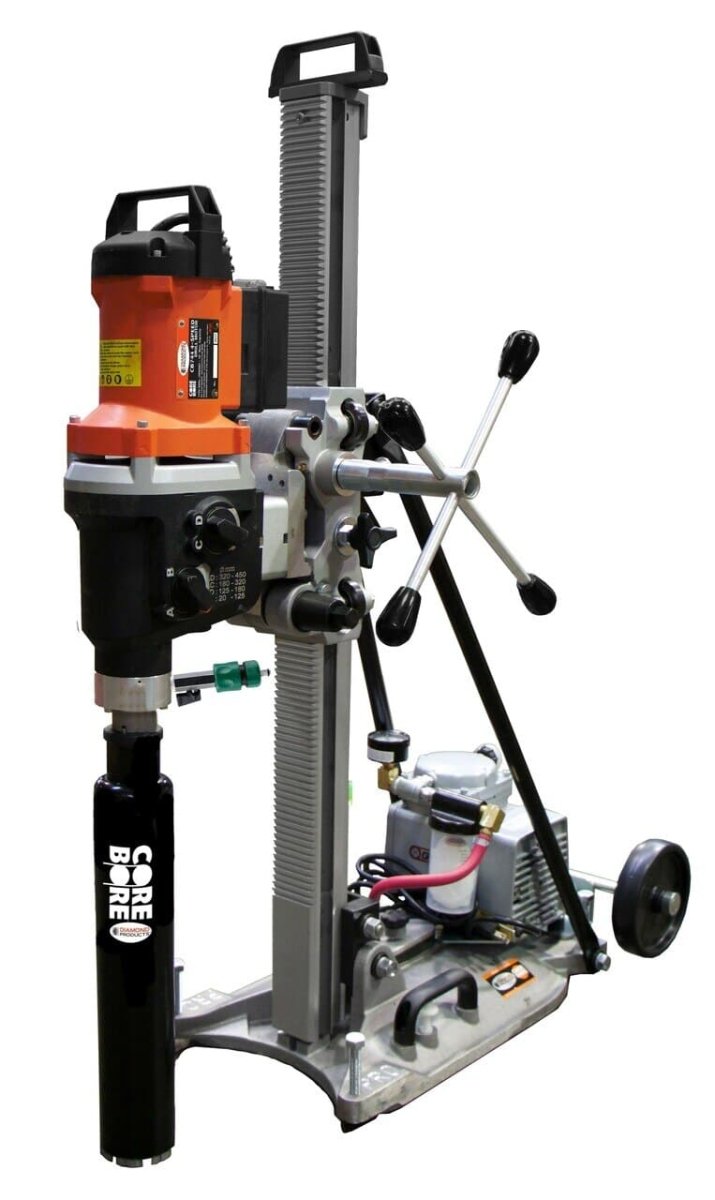

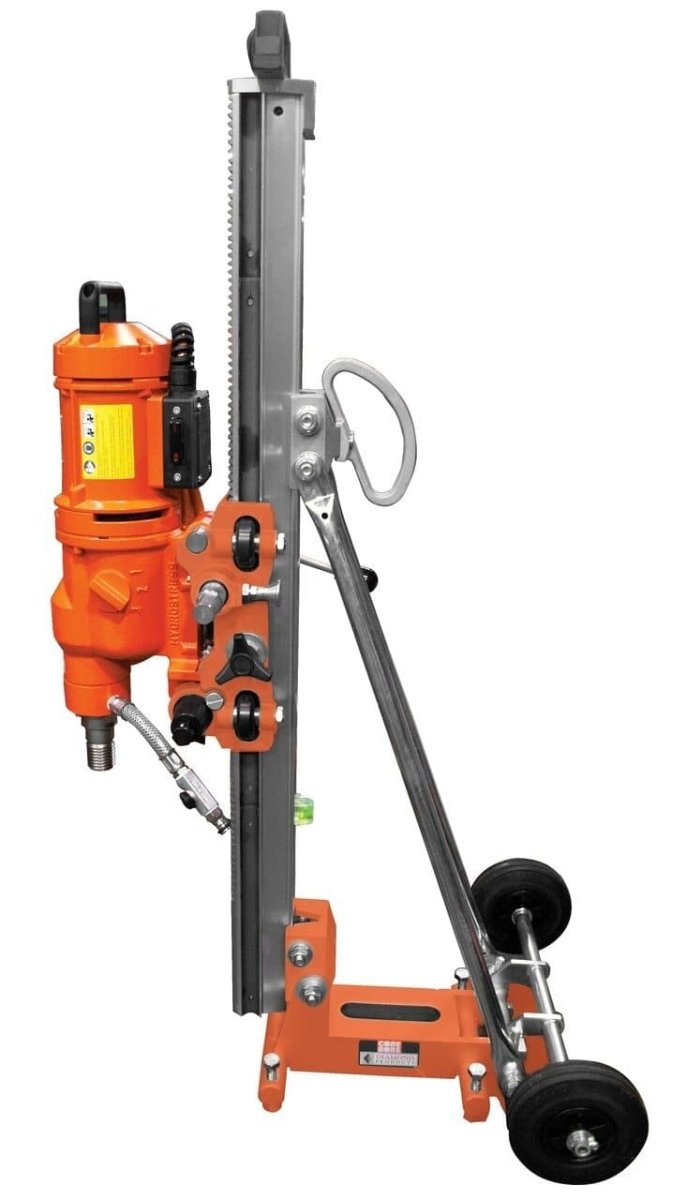

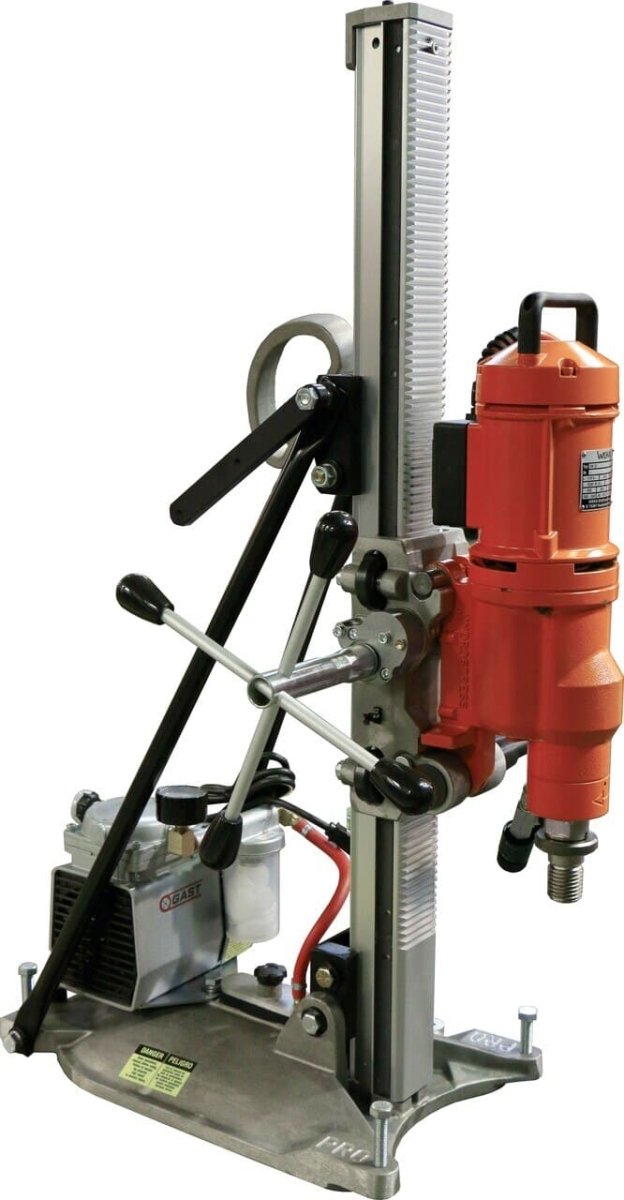

The M-5 Pro Heavy Duty Quick Disconnect (Q.D.) Core Rigs are a top - choice for professional drilling. It has an 11 - foot standard bit capacity and stands out as the fastest professional quick - disconnect rig in the market. Key features and benefits include: a quick - disconnect motor mount for easy motor removal, a 4 - spoke handle that can be used on either the right or left side on the combo rig, positive carriage and friction locks, an extruded aluminum lightweight column with a reinforced track, steel roller guide and rollers, a dual control panel/amp meter for combination rigs, a quick - release vacuum button, a convenient carrying handle, a level bubble on the column, 2 gear ratios for effortless carriage feed, and an angle stand that allows drilling up to 45°. Available with different engine/motor models such as CB744, DK22F, and DK32F from brands like Core Bore and Weka, with various power ratings and RPM options. You can choose from complete rigs with or without a vacuum pump, as well as anchor rigs.
Using the M - 5 Pro Heavy Duty Quick Disconnect Core Drilling Rig is easy. First, make sure the rig is properly set up on a stable surface. If you're using the angle stand, adjust it to the desired angle up to 45°. Connect the motor according to the type of operation you need. The quick - disconnect motor mount makes this process a breeze. When using the rig, the 2 gear ratios allow you to choose the right speed for the job. The dual control panel/amp meter helps you monitor the performance. Remember to check the level bubble on the column to ensure accurate drilling. For maintenance, regularly clean the extruded aluminum column and the steel roller guide. Lubricate the moving parts to keep them working smoothly. When not in use, store the rig in a dry place. Always follow safety precautions, such as wearing appropriate protective gear when operating the rig.
