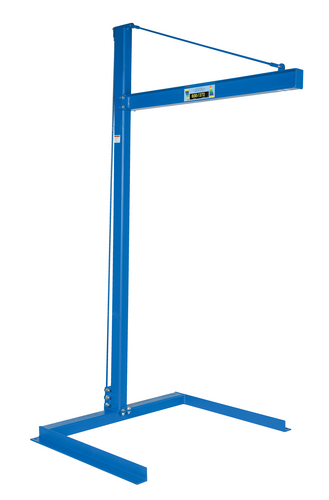

Discover our Mini Overhead Cantilever Jibs, perfect for easily lifting products from cart to workbench. These jibs are ideal for work cells and areas. Their unique fixed - height design lets you mount the 39 - 3/4' long outriggers under a workbench. Lift products effortlessly with a straddle width of 47 - 3/4' (ID). The jibs are made of steel and have a durable blue powder coat finish. Hoist, trolley and cart are not included. All measurements are approximate, and slight variations may occur. Shipping weights are also approximate. Check out the different models below with their specifications:
| Model | PDF | Under I - Beam To Ground | Overall Height | I - Beam Usable Length | I - Beam Flange (WxL) | Capacity (lbs) | Wt. (lbs) |
| CJIB - 3 | | 84' | 106 - 11/16' | 54' | 2.66'x4.00' | 300 | 318 |
| CJIB - 6 | | 84' | 106 - 11/16' | 54' | 2.66'x4.00' | 600 | 327 |
| CJIB - 10 | | 78 - 1/2' | 103 - 11/16' | 54' | 4.00'x6.00' | 1,000 | 496 |
| CJIB - 20 | | 78 - 1/2' | 103 - 11/16' | 54' | 4.00'x6.00' | 2,000 | 512 |
KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
Using the Mini Overhead Cantilever Jibs is a breeze. First, make sure to mount the 39 - 3/4' long outriggers under your workbench according to the fixed - height design. Then, you can easily lift products from the cart to the workbench. Remember, the hoist, trolley, and cart are not included, so you'll need to get those separately. When it comes to safety, always check the weight capacity of the jib you're using. Each model has a different capacity, like the CJIB - 3 can handle 300 lbs and the CJIB - 20 can handle 2,000 lbs. Don't overload the jib as it can cause damage or accidents. For maintenance, keep the jib clean. The durable blue powder coat finish helps protect it, but regular cleaning can extend its lifespan. Also, check for any signs of wear and tear, such as cracks or loose parts. If you notice anything unusual, it's best to stop using the jib and have it inspected. And always keep in mind that all measurements are approximate, so there might be slight variations in the jib's dimensions.
