Description

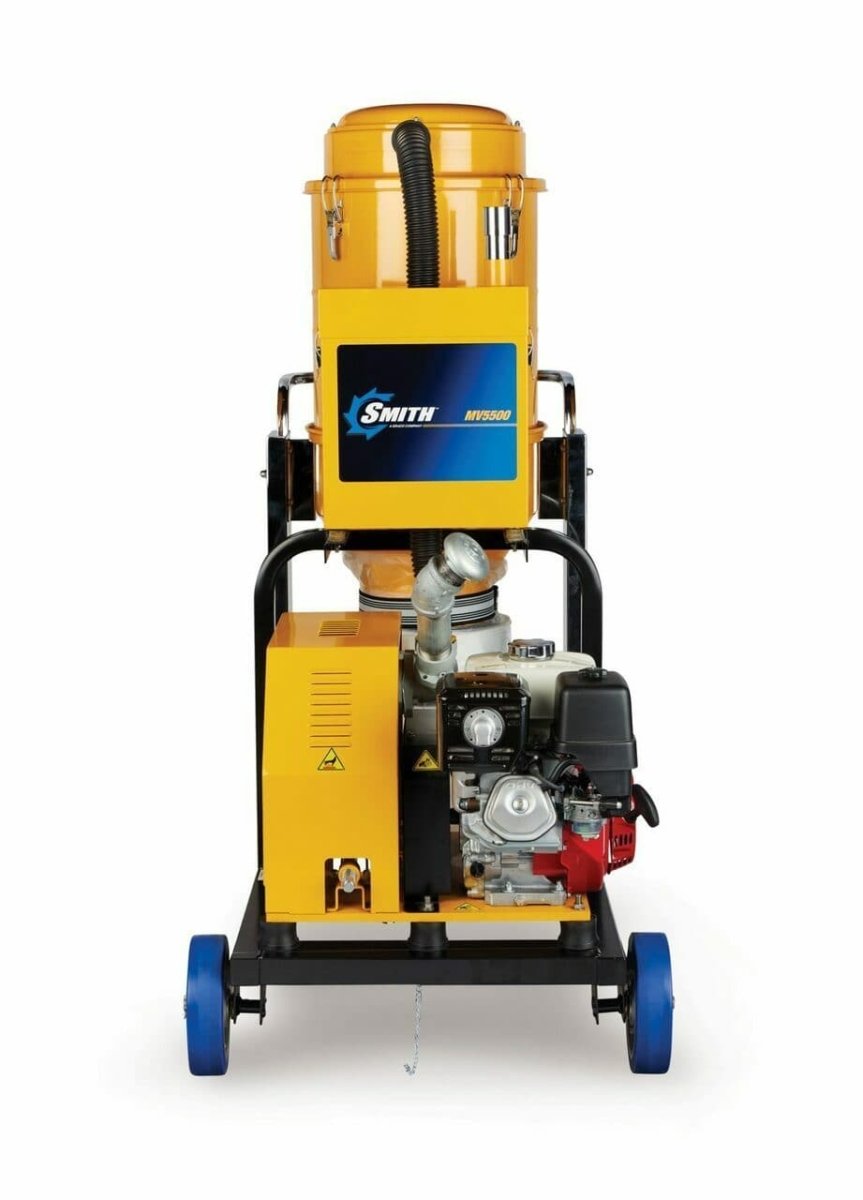

The MV5500 Dust Collector is an ideal solution for gathering concrete or asphalt dust and debris from mid- to large-sized scarifiers, concrete grinders, and concrete shavers. This portable, industrial-grade dust collector features automatic filter cleaning and a non-clogging design. It comes with a connection bracket for use with a debris separator. Powered by a 13 HP Honda gasoline engine (MV-5500.H13), it offers a maximum airflow of 295 cfm (501 m³/h) and a vacuum pressure of 148' H2O (276 mm Hg, 0.37 bar) with no flow. The maximum air power (no hose) reaches 2045 air-watts. It provides 99.3% filtration at 0.3 μm particle size. Included items are a storage box, a 3' x 33' (75mm x 10m) collection hose, a Y-adaptor hose connection, four 2' (50mm) connectors, a vacuum wand, a floor nozzle, an elbow pipe connector, a 3' (75mm) stainless coupler, a round brush, a floor brush, twenty vacuum collection bags (LDPE 20'x32'), a Velcro bag strap, seven non-woven fabrics (4.5'OD x 21.5'L), and two PTFE filters (5' OD x 2.6 ID x 11.25' L). Accessories include a cyclone separator (MVSA, MV-SC), a set of 7 filter bags (PN: MV5500.10), and a filter (PN: MV5500.11). It weighs 575 lbs (260 kg) and measures 72 x 48 x 35 in (183 x 122 x 89 cm).
Using the MV5500 Dust Collector is straightforward. First, assemble all the included parts like the collection hose, vacuum wand, and floor nozzle. Connect the dust collector to the debris separator if you have one. Start the 13 HP Honda gasoline engine, and you're ready to collect dust and debris from mid - to large - sized scarifiers, concrete grinders, or concrete shavers. When in use, keep an eye on the filter. The automatic filter - cleaning feature helps prevent clogging, but it's still a good idea to check it regularly. For maintenance, replace the filter bags and filters as recommended by the product manual. Also, clean the storage box and other accessories after each use. Store the dust collector in a dry place to avoid rusting. Be careful when handling the heavy parts, as it weighs 575 lbs. And always follow safety instructions when working with the gasoline engine.
