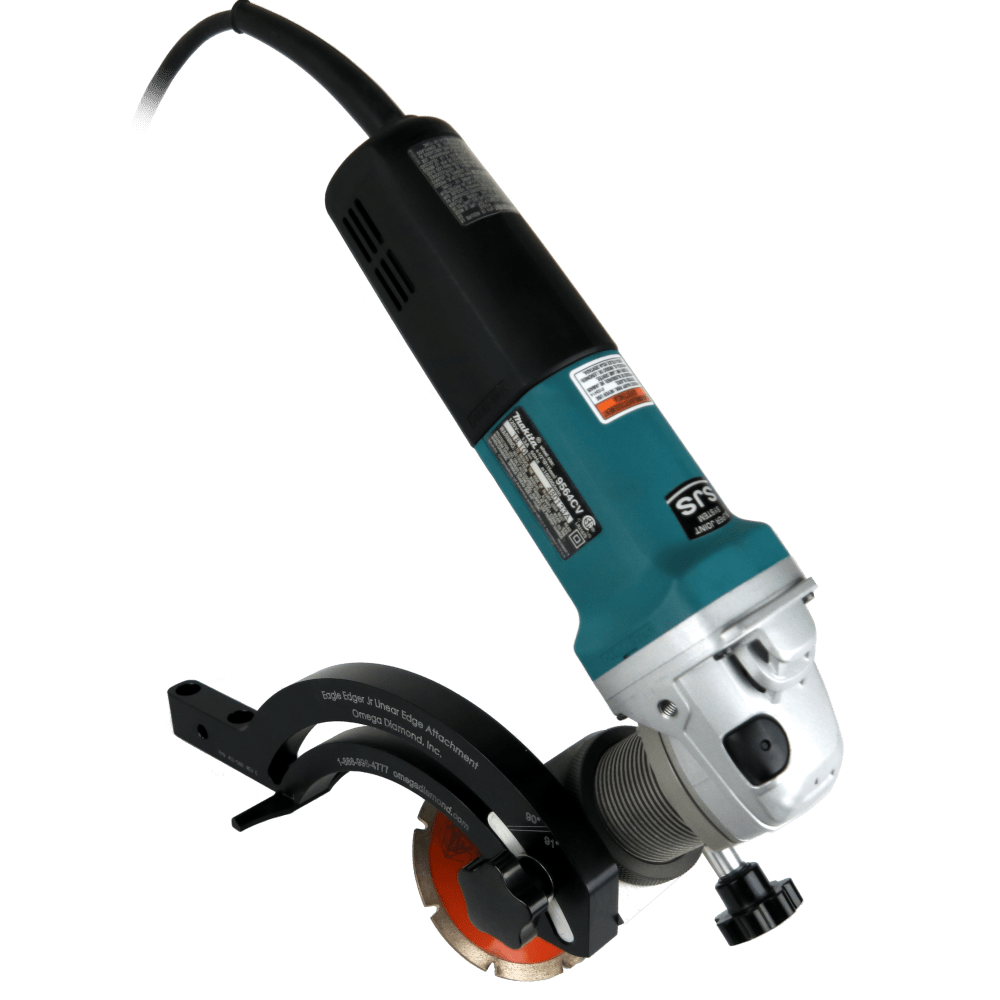

The Eagle Edger Jr is an amazing attachment for the Blue Ripper Jr Rail Saw. It allows you to cut and polish miter edges like a pro! Now, you can supercharge the capabilities of your Blue Ripper Jr™. This attachment easily installs on the back of your saw, enabling you to cut miters up to 46 degrees in either direction. You can also polish straight edges and shape edges using router bits. It's compatible with Makita GA7021, GA7040S, 9564CV, 9565CV, or 9566CV motors. Omega Diamond has created a great way to make miter cuts with the Blue Ripper JR. With the Eagle Edger Jr attachment, your stone saw can do all the cuts. Bevel, shape, flat grind, and polish linear edges with ease. Many customers have wondered if the Blue Ripper Jr can cut 45 - degree angles. Now it can! This innovative tool turns your Blue Ripper Jr™ into a mini linear edge machine. There are indicator marks at 45 - degree angles and 0 degrees. It can cut at any angle between 46 degrees forward and 46 degrees back, allowing you to create perfect beveled edges or bevel - miter lamination edges. With the included 90 - degree extension and snail - lock adapter, you can grind and polish a flawless 90 - degree edge for a great flat profile. The extension can even go up to 91 degrees for seam polishing. You're not limited to 90 - degree polishing; you can mount the snail - lock adapter on the spindle to polish at 45 degrees or try a 30 - degree bevel. You can also mount standard 7/8 - inch bore router bits on the spindle to grind perfect straight profiles without a bearing. You can tilt the router bit to get unique edge profiles. Every Eagle Edger comes with everything you need for miter cutting, edge polishing, and shaping. Included items are the Makita Grinder Drive Motor, Eagle Edger Arm, Eagle Edger Nose & Spindle, Eagle Edger 90° Extension, Flush - Cut Blade Adapter, Flush - Cut Blade, Snail - Lock Adapter, Water Shield, and Replacement Water Manifold for Blue Ripper Jr. Technical specs: It can cut 45° angles on top or bottom, up to ±46° standard and 90 to 91° with the extension. The standard 7/8 - inch mount fits most router bits. It mounts onto the Blue Ripper Jr™ Rail Saw and is designed for a Makita 9564CV or 9565CV right - angle grinder. It's light and easy to use.

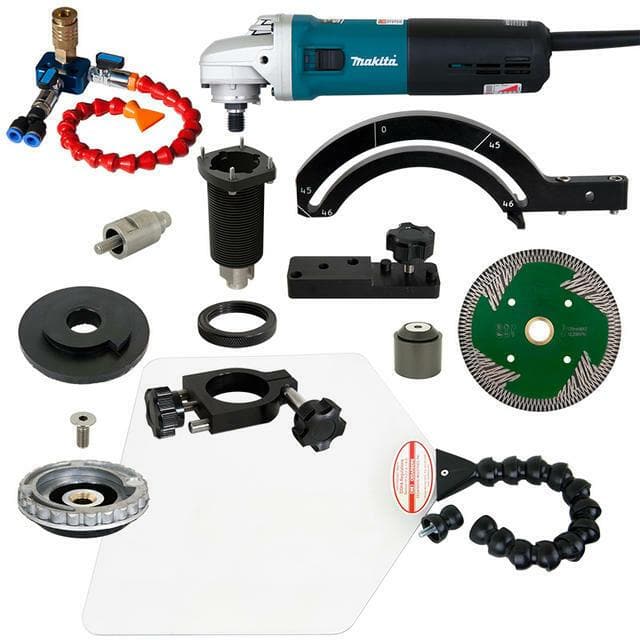

Using the Eagle Edger Jr attachment for your Blue Ripper Jr Rail Saw is a breeze. First, make sure your saw is turned off and unplugged. Then, easily install the attachment on the back of the Blue Ripper Jr™. For miter cuts, you can set the angle up to 46 degrees in either direction. Just look at the indicator marks at 45 - degree angles and 0 degrees to get the right angle. When using it for polishing, you can use the included 90 - degree extension and snail - lock adapter. The extension can go up to 91 degrees for those who want to polish seams. You're not limited to 90 - degree polishing; you can also try 45 - degree or 30 - degree bevels. If you want to shape edges, mount standard 7/8 - inch bore router bits on the spindle. You can even tilt the router bit to get unique edge profiles. As for maintenance, keep the attachment clean after each use. Wipe off any dust or debris. Check the included parts regularly, like the water shield and water manifold, to make sure they're in good condition. Also, if you're using the Makita grinder motor, follow the manufacturer's maintenance instructions for it. When not in use, store the attachment in a dry place to prevent rusting. And always remember to wear safety gear, like goggles and gloves, when operating the tool.
