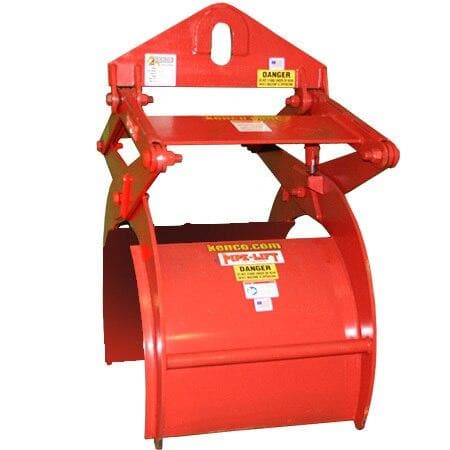

The PL3500 Pipe Lift is a top - notch tool for lifting various types of pipes, including steel, PVC, ductile iron, and RCP. It has a 3500 - pound capacity and fits pipes with an outside diameter ranging from 30.00 to 38.50 inches. It can handle 30' and 36' PVC, STEEL, Ductile Iron, C900 PVC or RCP ID sizes such as 24' (31.50' OD), 27' (35.00' OD), and 30' (38.50' OD). This lifter uses gravity to enable a scissor - action clamping mechanism, securely holding the pipe. It significantly boosts productivity compared to traditional methods like using straps or teacups. One operator can easily grab, lift, and move pipes without assistance. Its unique wide scissor - grip design ensures a secure lift even if the pipe isn't centered. The PL1500 through PL3500 are 30' wide, while the PL4500, PL7000, and PL8500 are 36' wide. Note that pipe outside diameter and weight are key factors in choosing the right lifter. The PL3500 weighs 580 lbs and has dimensions of 42 × 42 × 42 in. Patent: 6012752.

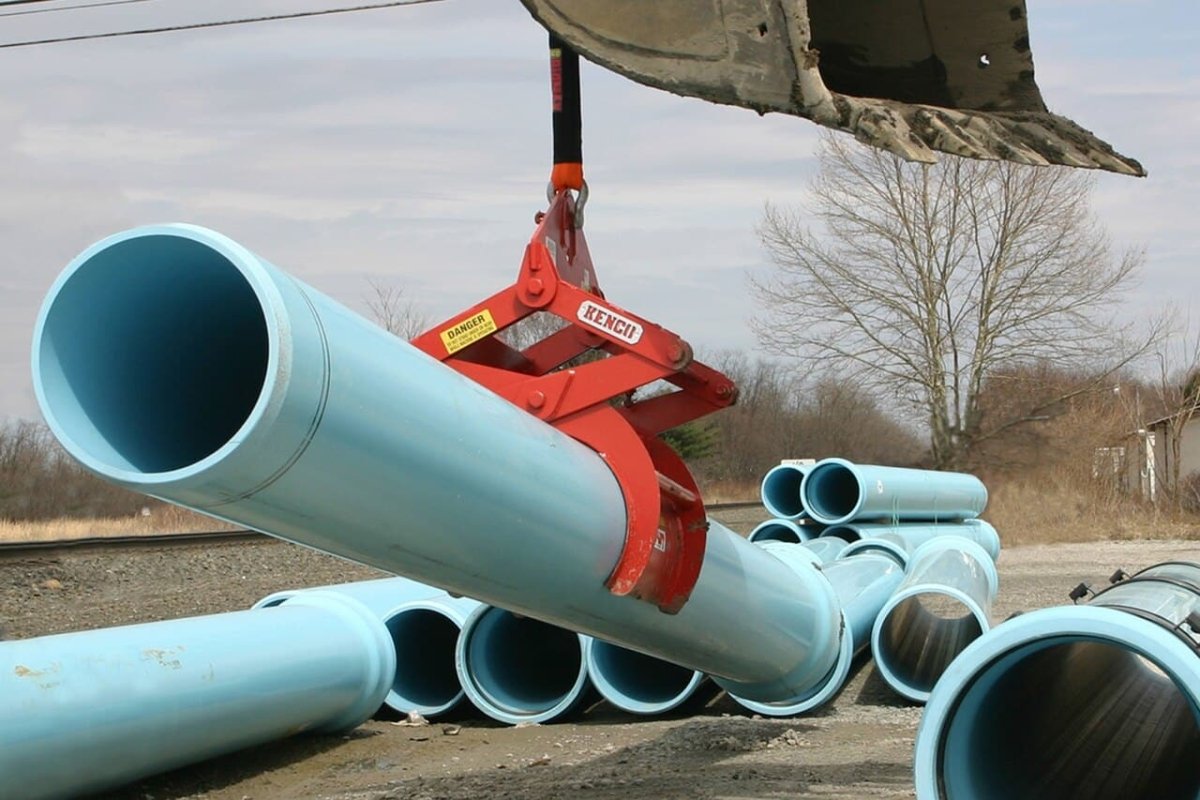

Using the PL3500 Pipe Lift is easy. First, make sure the pipe's outside diameter is within the range of 30.00 to 38.50 inches and its weight doesn't exceed 3500 pounds. Then, the machine operator simply sets the tongs down over the pipe. The legs will automatically grab and hold the pipe tightly. When you're ready to move the pipe, use the lifting device to lift it and place it where you need it. Once the pipe is set down firmly, the lifter will release it. Remember, always check the pipe's size and weight before using the lifter. Pipe outside diameter and weight are the main factors for choosing the correct lifter. There might be other pipe tongs lifting devices not listed here. Also, keep the lifter clean and check it regularly for any signs of wear or damage. If you notice any issues, don't use it until it's repaired.
