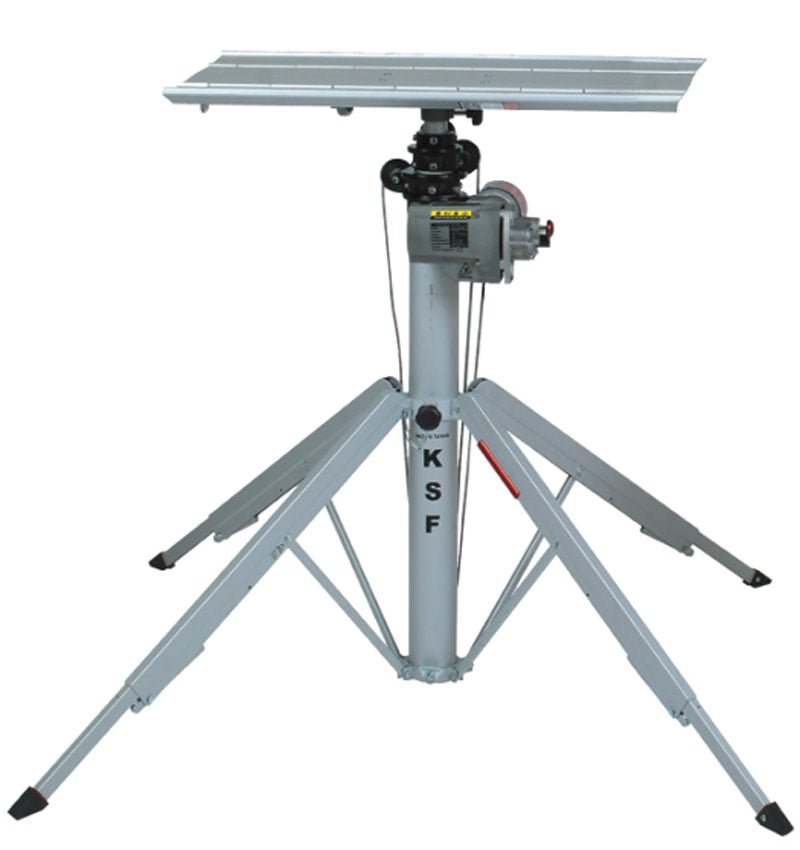

The Portable Lifter CM Series offers easy setup, leveling, and fitting, along with variable - speed electric lifting capabilities
There are two models, the CM340 and CM520. These compact and easily transportable lifters can be set up in under 30 seconds. They're ideal for air conditioners, awnings, garage doors, glass, windows, and more.
Telescoping Legs: Great for uneven surfaces like stairways and slopes.
Leveling Mast: Ensures the mast is vertical before operation.
Telescoping Mast: Compact, strong, and light, made of specially heat - treated aluminum.
Electric Motor: Comes with a variable - speed controller, long cable, and belt clip.
Manual Controls: If there's no power, use an electric drill or handle to wind the lifter.
Emergency Stop Button: Can also switch to manual control.
30 - Second Setup: No tools needed.
Overload Cut - Out: Equipped with an overload clutch for safety.
Wheels for Mobility: Included with the CM520, optional for the CM340.
Retractable Design: Allows lifting loads close to the wall.
Fine Positioning: Align loads precisely with the variable - speed controller.

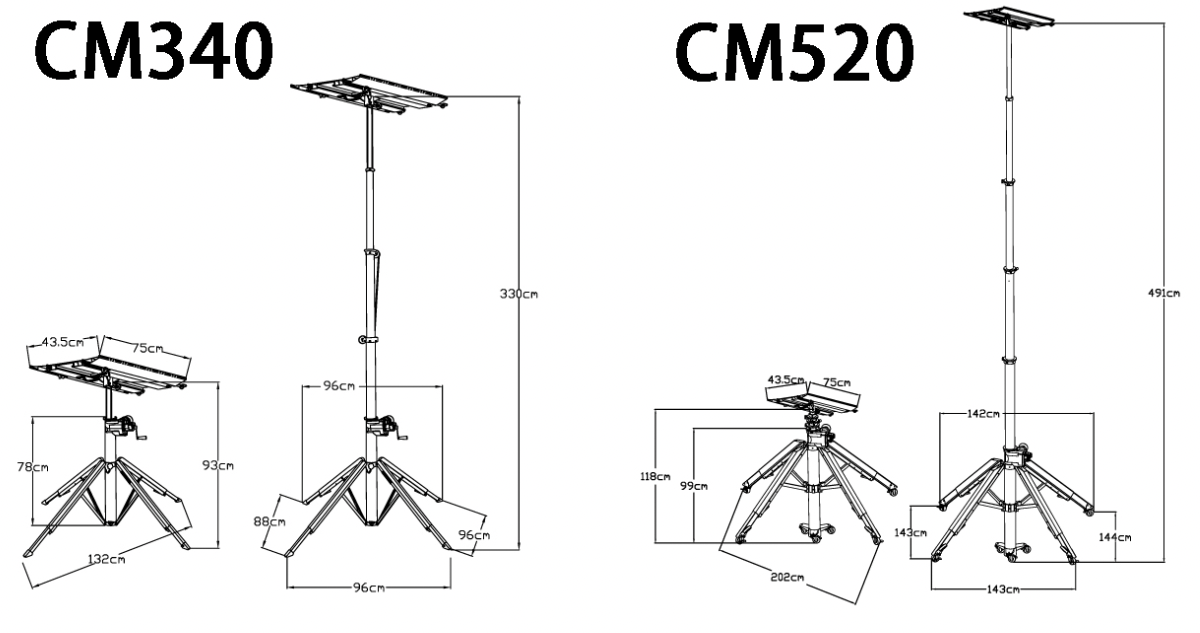

| Models | Basic Height | Lifting Height | Max Load Capacity | Lifter Weight | Lifter Platform | Dimensions - Stowed | Dimensions - Operating |
| CM - 340 | 38 Inch | 11 Feet | 290 lb - 10 ft | 46 LBS | 11 LBS | 12 x 12 Inch | 38 x 38 Inch |
| CM - 520 | 46 Inch | 16 Feet | 260 lb - 11 ft | 83 LBS | 11 LBS | 15 x 15 Inch | 56 x 56 Inch |
Using the Portable Lifter CM Series is a breeze. First, find a suitable location. If it's an uneven surface like a slope or stairs, use the telescoping legs to make it stable. Before starting the operation, use the leveling mast to ensure the mast is vertical. To set it up, you don't need any tools, and it can be done in just 30 seconds. You can use the electric motor with the variable - speed controller for normal operation. If there's no power available, you can switch to manual control using an electric drill or the handle. There's an emergency stop button that can also be used to switch to manual mode. When lifting, you can use the fine - positioning feature of the variable - speed controller to align the load precisely. And don't forget about safety: the overload cut - out with an overload clutch will protect you from overloading. For the CM520, it comes with wheels for easy mobility, and for the CM340, you can choose to add them as an accessory. Also, the retractable design allows you to lift loads close to the wall. When it comes to maintenance, keep the lifter clean and check the components regularly, especially the telescoping parts and the electric motor. If you notice any issues, stop using it immediately and get it checked by a professional.
