Description

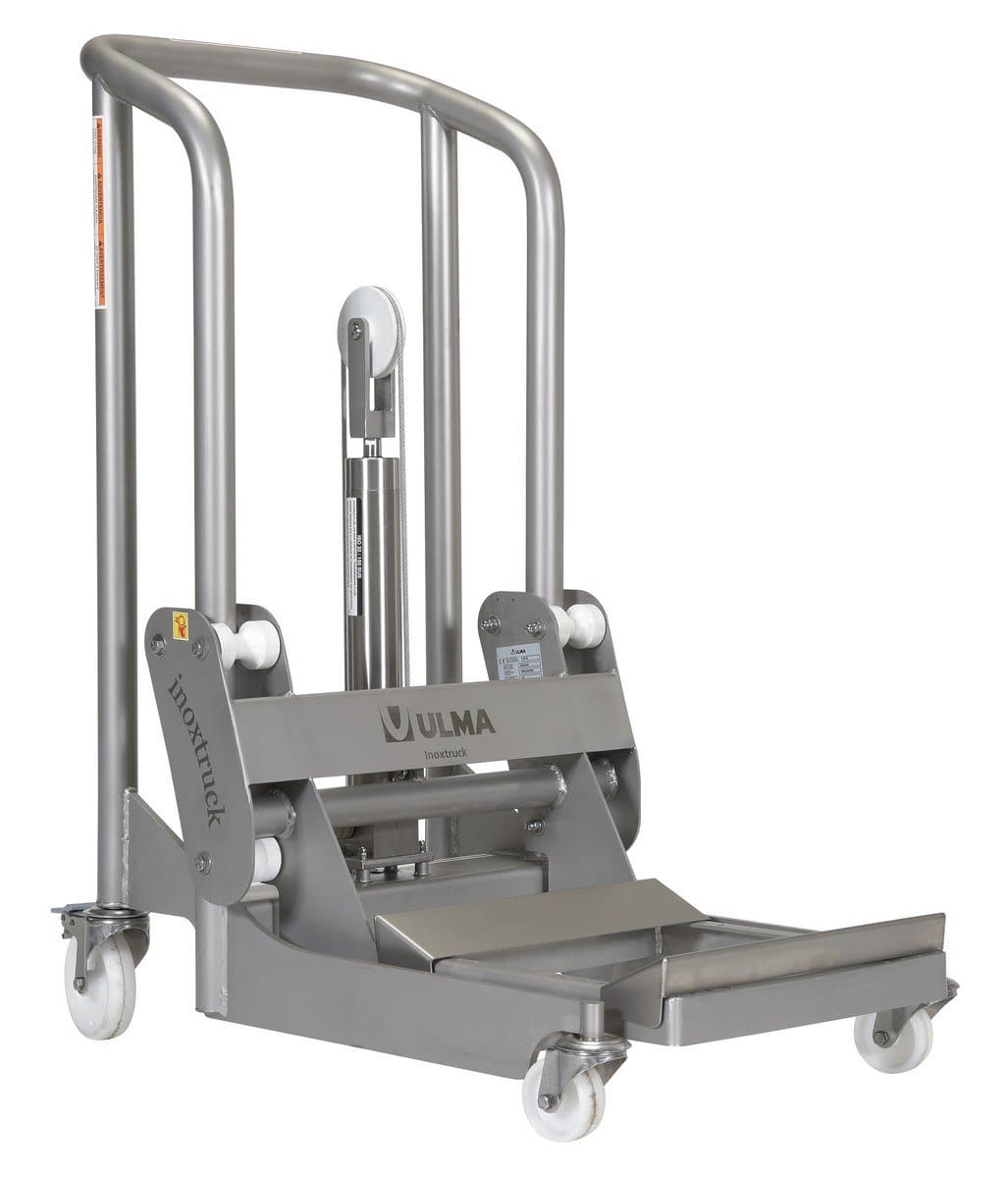

A 304L stainless steel hydraulic foot pump roll handler is an excellent choice for diverse areas, especially the food handling service industries. Its sleek and smooth design is easily washable, making it ideal for hygienic areas before and after use. The hydraulic foot - pump design simplifies raising and lowering the platform to the exact position, reducing unnecessary bending during material loading and unloading. The 304L stainless steel construction, including hydraulic cylinders and pistons, offers a robust structure for transferring heavy loads between work areas. The rounded handle allows for a comfortable two - handed grip when moving around work areas. The open cradle platform enables users to load material from three sides, and the cradle can be adjusted in 1' increments up to 16' wide. It rolls smoothly on four swivel casters, with two rear brakes for safe use when at rest. All measurements are approximate, and slight variations may occur. Shown weights are approximate shipping weights. Model ULM - HRH - 850 has a cradle size of 16' x 16', a maximum roll diameter of 24', a capacity of 850 lbs, a service range from 5 - 3/8' to 23', and weighs 138 lbs.
Using this 304L stainless steel hydraulic foot pump roll handler is easy. First, position it near the material you want to move. Then, use the hydraulic foot pump to raise or lower the platform to the right height. This way, you don't have to bend too much when loading or unloading. When maneuvering around the work area, hold the rounded handle with both hands for better control. You can load materials from three sides thanks to the open cradle platform. Adjust the cradle width in 1' increments as needed, up to 16' wide. Remember, all measurements are approximate. When you're done, use the rear brakes to keep it in place safely. For maintenance, since it's made of 304L stainless steel, it's easy to clean. Just wash it before and after use, especially if you're working in a hygienic area like the food handling industry. Keep an eye out for any signs of wear on the hydraulic cylinders, pistons, and casters, and if you notice any issues, get them checked out right away.
