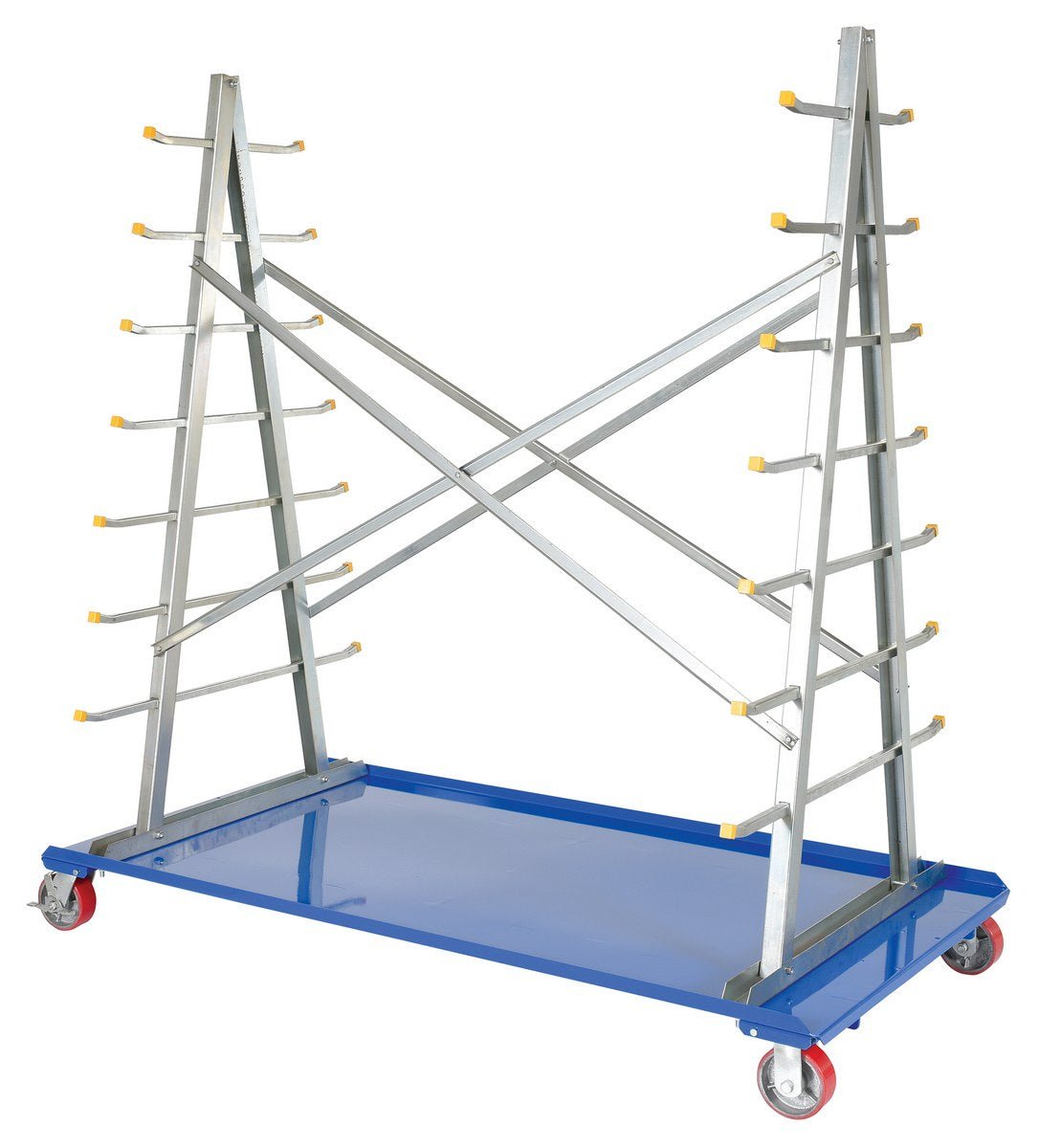

The portable A-Frame cart with a storage rack is a great choice for storing and transporting pipes, conduits, and other bar materials. Its storage arms extend 12 feet beyond the frame, with a 7-1/4-foot clearance between the arms. The unit rolls on two rigid and two swivel 5-foot poly-on-steel casters with brakes. The base is powder-coated blue, and the storage rack is zinc-plated.
Standard Features:
- Portable with two rigid and two swivel 5-foot poly-on-steel casters
- Overall deck size is 36-3/4 feet wide by 72 feet long
- Storage rack is 72-1/2 feet high with 8 storage levels
- Storage arms extend 12 feet beyond the frame
- Distance between storage arms is 7-1/4 feet
- Maximum capacity is 2000 lbs.
- Base is powder-coated blue
All measurements are approximate. Slight variations, tolerances, or changes may occur at any time. The weights shown are approximate shipping weights.
| A-Frame Rack Cart |
| Model | Image | PDFs | Deck Size
(WxL) | Uniform Static
Capacity (lbs) | Wt.
(lbs) |
| AFSR-3672 | | | 36-3/4'x72' | 2,000 | 245 |
KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
Using this A-Frame storage cart is easy. First, make sure the casters' brakes are off if you want to move it. Then, place your pipes, conduits, or other bar materials on the storage rack. You can use the 8 storage levels to organize your items. When you're done, lock the brakes to keep the cart in place. For maintenance, regularly check the casters for any signs of wear and tear. Clean the powder-coated blue base and zinc-plated storage rack with a mild cleaner. Keep in mind that all measurements are approximate, so there might be slight differences. Also, don't overload the cart beyond its 2000 lbs capacity.
