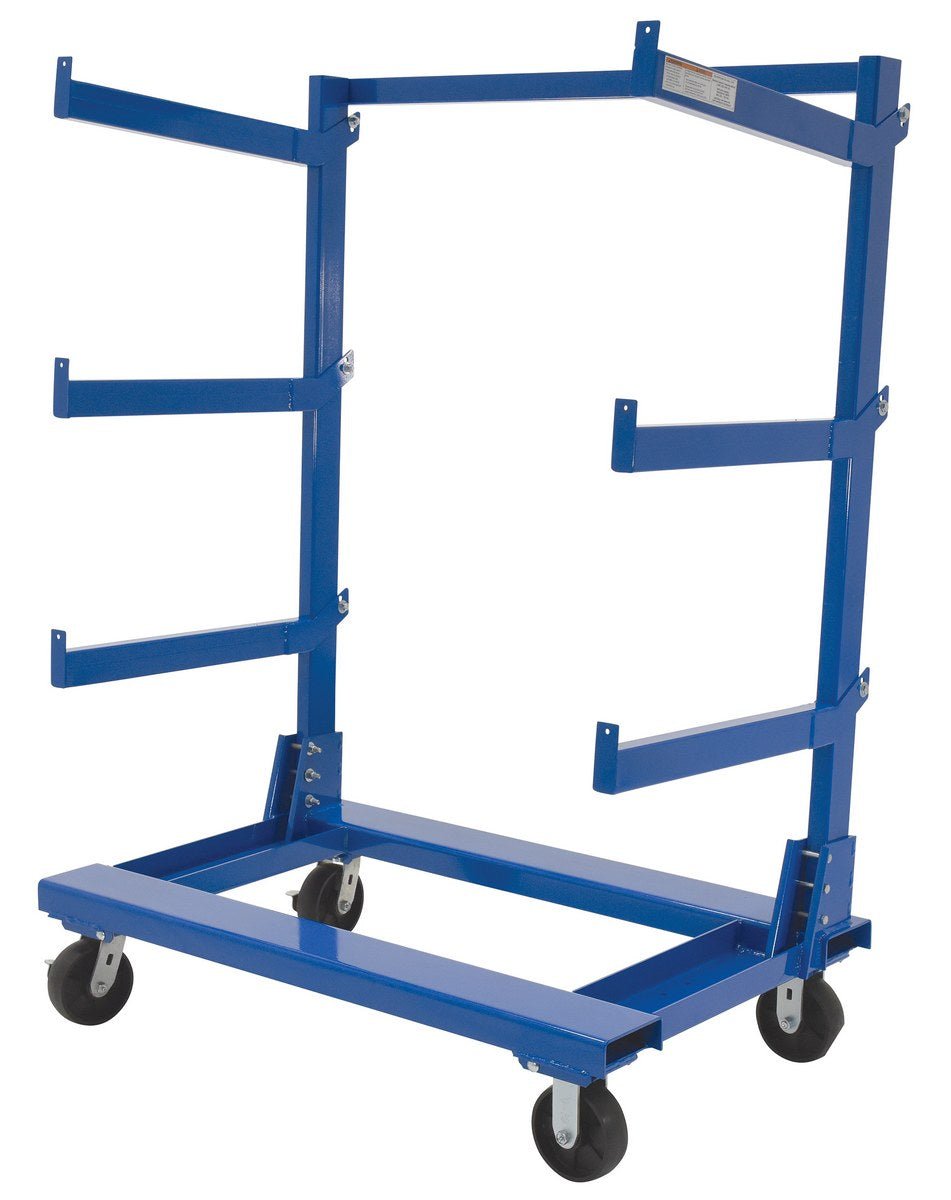

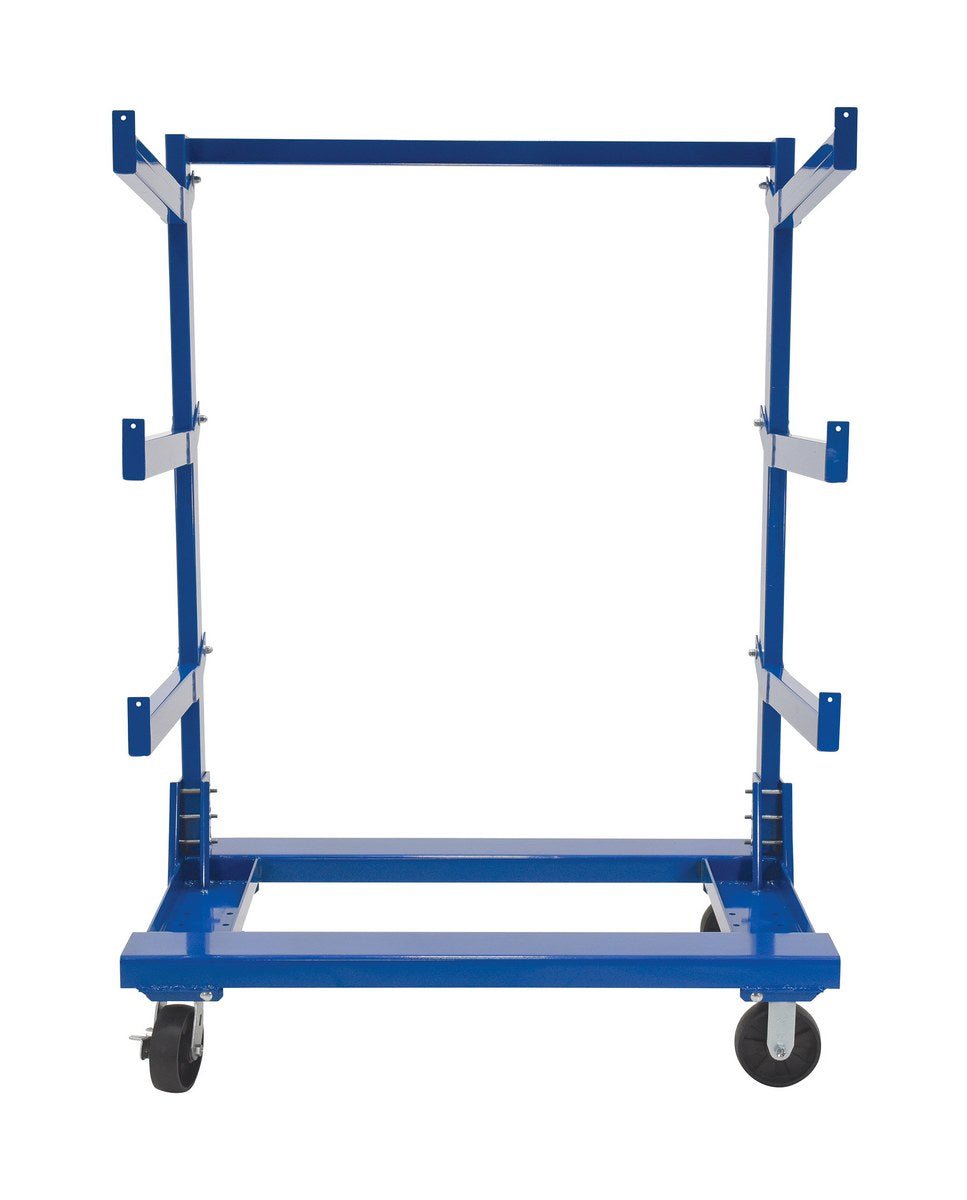

Portable Cantilever Cart for Efficient Storage Ideal for storing bar stock type items. Each cart comes with three pairs of adjustable arms. The arm height can be adjusted in 6 - inch increments, offering flexible storage solutions.
The arms are firmly secured to the cart using a bolt and nut. Each arm has two holes, allowing it to be attached in either a level or inclined position. The lowest arm position is 18 - 3/4 inches, while the highest is 60 - 3/4 inches. The 10 - inch high base has built - in fork pockets measuring 5 - 3/8 inches wide and 2 inches high, which are very useful. The cart rolls on 2 rigid and 2 locking swivel 6 - inch by 2 - inch casters. It is made of all - steel construction with a tough blue baked - in powder - coated finish.
KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
Using your portable cantilever cart is easy. First, adjust the arm height according to the size of your bar stock items. You can do this in 6 - inch increments. Attach the arms to the cart using the bolt and nut, and choose either a level or inclined position based on your needs. Place your items on the arms evenly to avoid overloading one side. When moving the cart, use the rigid and locking swivel casters. You can lock the swivel casters when you want the cart to stay in place. As for maintenance, keep the cart clean and dry. Check the bolt and nut regularly to make sure they are tight. If you notice any damage to the powder - coated finish, touch it up to prevent rust. Remember, all the measurements provided are approximate, and there might be slight variations.
