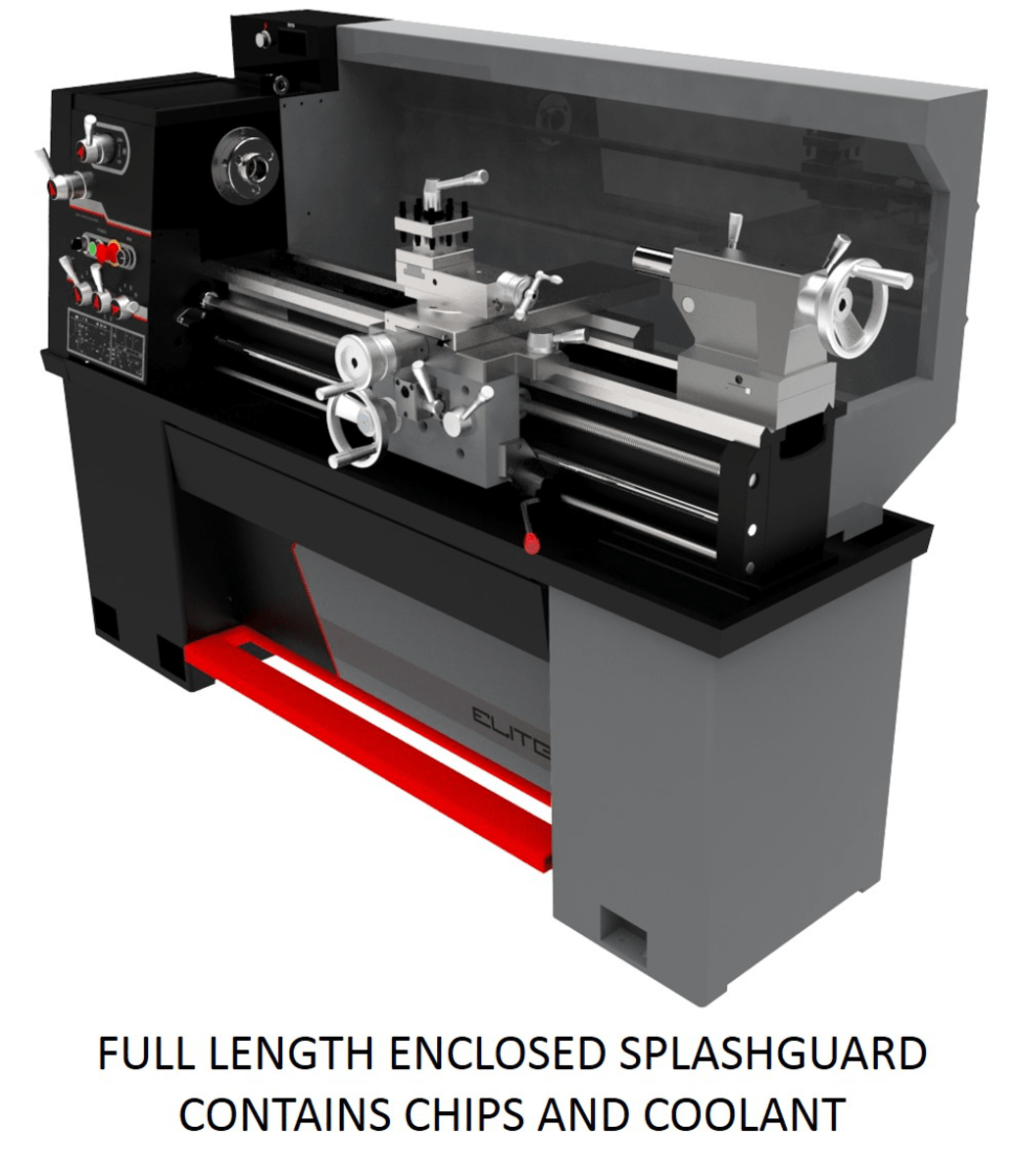

Compact yet powerful, the Elite EVS lathes are a masterpiece. They cram large - scale features into a small footprint, making them ideal for schools, small workshops, and engineering labs. These lathes are truly elite, featuring certified Meehanite® castings, an electromagnetic brake, a three - jaw chuck, ball - bearing - mounted steady and follow rests, and CNC Style Lighting with an enclosed splash guard. They are also CSA/CUS Certified.

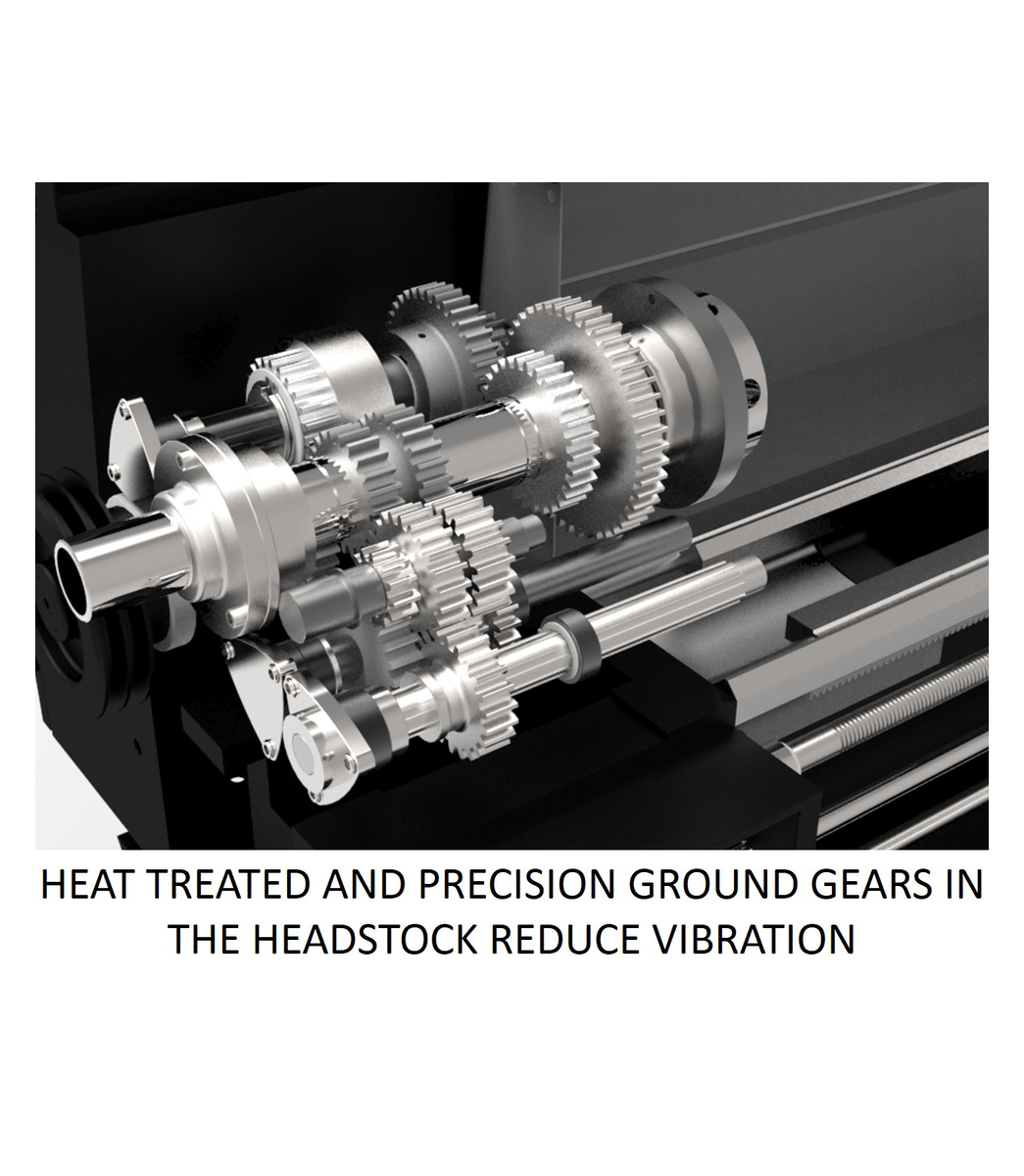

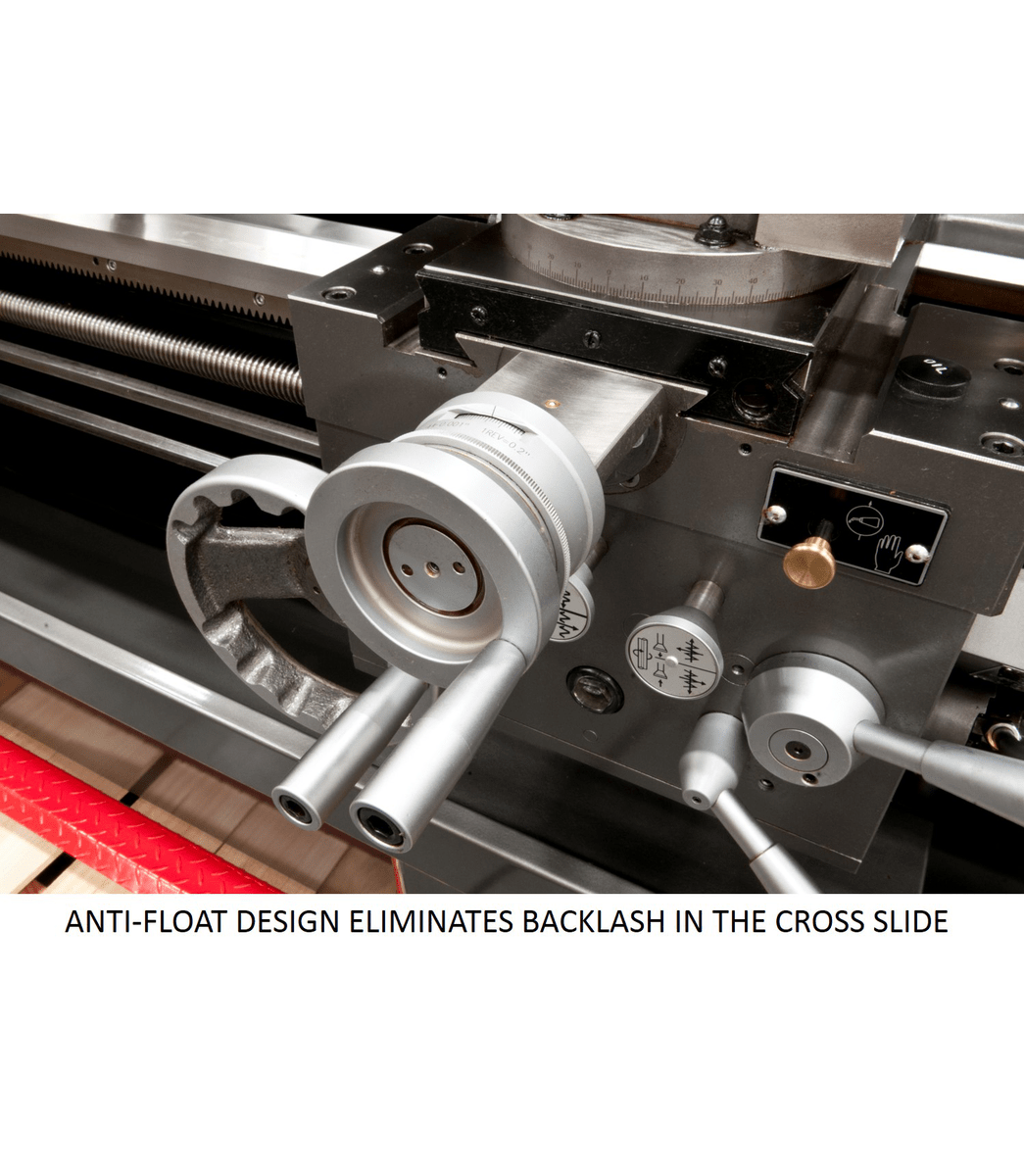

Key features include a 4 - Position Carriage Stop for precise positioning. Chuck guards come standard on all ELITE lathes to boost safety. The front - facing chip pan allows easy chip removal from the front of the machine. Hardened and ground gears in the headstock minimize vibration and deflection. The inverter drive system offers infinitely variable spindle speeds, and the LED RPM readout enables precise turning speeds. A two - speed gearbox provides a wide range of speeds from 40 - 365 RPM (low) to 165 - 2000 RPM (high).
- Stock Number: 892412
- Amperage Draw @ 230V 3Ph: 19
- Compound Slide Travel (In.): 3 - 1/2
- Drive: EVS
- Length of Gap (In.): 9
- Max Tool Size (In.): 5/8 x 5/8
- Motor (HP): 3 HP, 230V, 3Ph
- Number of Inch Threads: 40.0000
- Number of Longitudinal and Cross Feed Rates: 80
- Number of Metric Threads: 22.0000
- Overall Dimensions (L x W x H) (In.): 67 x 30 x 57
- Prop 65: Cancer and Reproductive Harm
- Range of Cross Feeds (IPR): 0.0003 - 0.01
- Range of Inch Threads (TPI): 4 - 112
- Range of Longitudinal Feeds (IPR): 0.0012 - 0.0294
- Range of Metric Threads: 0.45 - 7.5
- Range of Spindle Speeds (RPM): 0 - 2,200
- Size: 13 x 40
- Spindle Bore (In.): 1 - 1/2
- Spindle Mount: D1 - 4
- Spindle Taper with Sleeve: MT - 5
- Steady Rest Capacity (In.): 1/4 - 2 - 3/4
- Style (Type): ELITE EVS
- Swing Over Bed (In.): 13
- Swing Over Cross Slide (In.): 7 - 5/8
- Swing Through Gap (In.): 19
- Tailstock Spindle Travel (In.): 4 - 3/4
- Taper in Tailstock Spindle: MT - 3
- Weight (Lbs.): 1433
- Width of Bed (In.): 8 - 1/2
Using this Elite EVS lathe is straightforward. First, make sure it's properly set up in a well - ventilated area. Connect it to a 230V 3Ph power source. Before starting, check that all the parts are in good condition, like the chuck guards and the steady and follow rests. To start working, adjust the spindle speed according to your needs using the inverter drive system and check the speed on the LED RPM readout. You can use the 4 - Position Carriage Stop for accurate positioning. When you're done, remove the chips easily from the front - facing chip pan. As for maintenance, keep the gears clean and lubricated regularly to reduce vibration. Check the electrical connections from time to time. Remember, this product has a Prop 65 warning, so take proper safety precautions. Don't operate the lathe if you notice any abnormal noises or malfunctions. If you have any questions, it's best to consult a professional.
