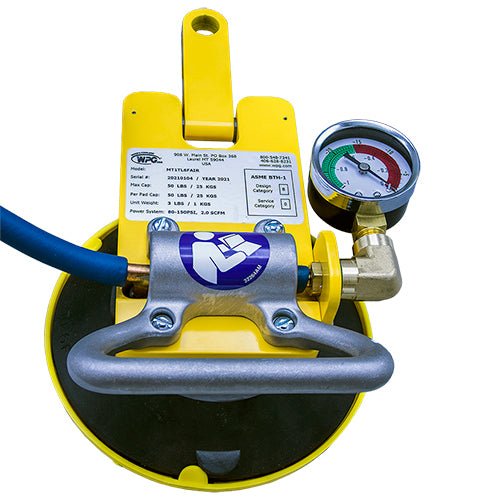

The Powr-Grip® Air-Powered Manual Tilter 50 is a custom-made vacuum lifter. It takes a couple of weeks to produce. Designed to use existing compressed air, this lifter is perfect for economically and efficiently handling small loads on the production line. It features a 90° tilt function. Here are the key specs: Stock# 97410, Model# MT1TL6FAIR, with a capacity of 50 lbs [23 kg] and air power. The standard vacuum pad spread is 6' x 6' [152 x 152 mm], and the pad has a 6' [15 cm] diameter. The maximum load capacity is 50 lbs [23 kg], and the vacuum lifter weighs 3.25 lbs [1.47 kg] without the power system. It runs on compressed air at 2 SCFM [57 liters/minute] @ 80 psi [550 kPa], with apply/release times of about 1 second / 2 seconds. It has a manual 90° tilt between upright and flat. Standard features include a vacuum gauge and a vacuum line filter. Warning: Cancer and/or Reproductive Harm - www.p65Warnings.ca.gov.

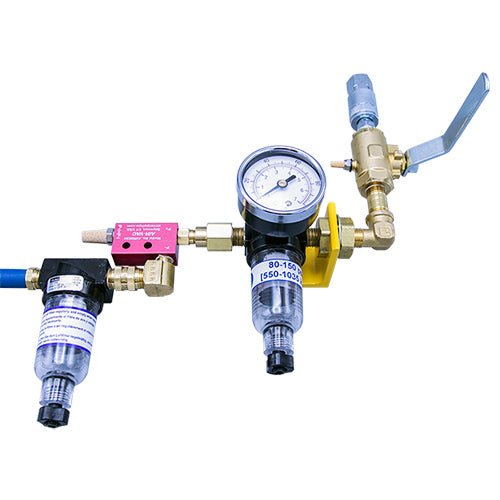

Using this air-powered manual tilter is easy. First, connect it to your existing compressed air supply. Make sure the air pressure is set at 80 psi [550 kPa]. Place the vacuum pads on the load you want to lift. It'll take about 1 second to apply the vacuum and start lifting. To tilt the load, use the manual tilt feature to move it 90° between upright and flat positions. When you're done, it'll take around 2 seconds to release the vacuum. Always check the load weight doesn't exceed the 50 lbs [23 kg] capacity. Keep the ambient and load temperatures between 32°F [0°C] and 100°F [38°C]. For maintenance, regularly check the vacuum gauge to ensure proper function. Clean the vacuum line filter to prevent blockages. If you notice any issues, stop using the lifter and get it checked. Remember, this product may cause cancer and/or reproductive harm, so follow safety guidelines on www.p65Warnings.ca.gov.
