MAGNETIC DRILL FOR PIPE | Drill Holes Up to 2.5 Inches in Diameter

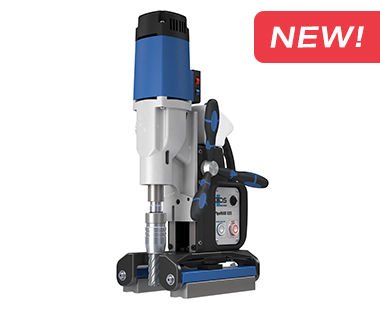

The brand - new PipeMAB 525 magnetic drill significantly cuts down the time and effort needed for drilling, tapping, reaming, and countersinking in pipes. It comes with a patented swivel magnetic clamping system, enabling it to drill on pipes with an outer diameter of 3 inches (85mm) and larger, inner pipe walls, as well as flat and curved surfaces. The strong clamping force of its two permanent magnets provides great flexibility for adhering to ferrous materials as thin as 3mm.
This pipe system combined with the features of the PipeMAB 525 makes it the most versatile pipe drilling machine on the market.
Features & Benefits:
- Flexibility: Ideal for drilling, tapping, reaming, and countersinking on pipes, flat, and curved surfaces.
- Increased Safety: Highly stable, the permanent magnet stays active without electricity.
- Longer Cutting Tool Life: Variable speed control, adjustable torque, and automatic lubrication reduce cutting tool costs and increase tool life.
- Powerful Magnets: Can adhere to materials as thin as 3mm.
- Extended Tool Holder: Maximizes the use of the pipe drilling machine's stroke.
- Accuracy: The two - magnet system allows the magnetic drill to swing away for debris clearing and hole inspection.
- Easy Maneuverability: Weighing only 43 lbs and with a patented swing arm system, the PipeMAB 525 can be easily moved and adjusted.
Specifications
| Motor Power | 14.5 Amp / 110 Volt |
|---|
| Weight | 43 lbs. |
|---|
| Hole Capacity | 2.5 inches in diameter |
|---|
| Twist Drill Capacity | 1 inch in diameter |
|---|
| Tapping Capacity | 15/16 inches in diameter |
|---|
| Speeds | 70 - 280 & 180 - 580 RPM |
|---|
| Stroke | 6 - 1/3 inches |
|---|
| Magnet Base Size | 10.5 inches L x 7.5 inches W x 3.5 inches H |
|---|
| Dimensions | 20.7 inches H x 10.5 inches L x 7.5 inches W |
|---|
| Magnetic Force (3/4 - inch plate) | 2250 lbs |
|---|
| Arbor Bore | 3/4 - inch Weldon Shank |
|---|
| Spindle Taper | MT3 |
|---|
| Pipe Magnet System Equipped | Yes |
|---|
| Automatic Lubrication | Included |
|---|
Using the PipeMAB 525 is a breeze. First, make sure your work area is clean and well - lit. Attach the drill to the surface you want to work on. Thanks to the strong magnets, it'll hold firmly even on thin materials. When starting the drill, select the appropriate speed according to the task at hand. You can adjust the torque as needed for better control. For drilling, tapping, reaming, or countersinking, just guide the drill gently and let it do its job. Remember, the drill has an automatic lubrication system, so you don't have to worry about manually lubricating it too often. As for safety, always wear protective gear like goggles and gloves. Keep the drill away from water and make sure it's turned off when not in use. For maintenance, regularly clean the drill to remove debris. Check the magnets for any signs of damage and the tool holder for wear and tear. Also, keep an eye on the cutting tools and replace them when they start to show excessive wear. This will ensure your PipeMAB 525 lasts a long time and keeps performing at its best.
