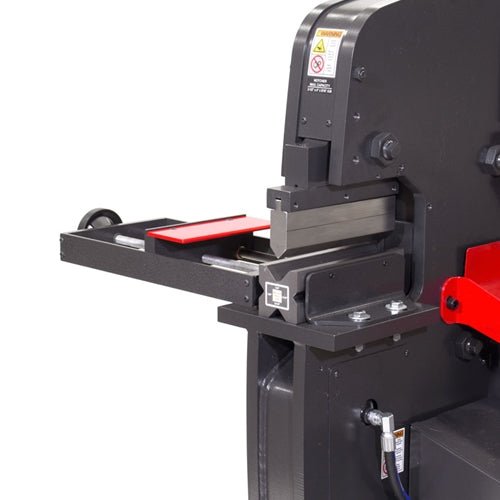

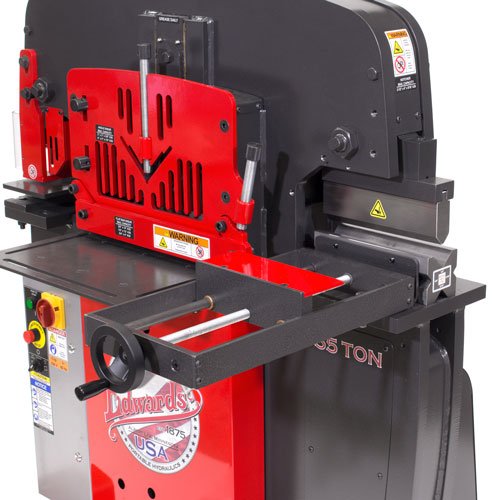

Our adjustable Press Brake Back Gauge is a must - have tool for making repeatable bends. It's specifically designed as tooling for our 20 Ton Shop Press and 40 Ton Shop Press. Setting it up is a breeze! Just bolt it to the Edwards Ironworker Brake Tooling assembly or the Press Brake Tooling of these presses. Then, use the simple hand - crank to smoothly move the carriage backstop to your preferred brake location. It makes the bending process quick and efficient.
Using this Press Brake Back Gauge is easy. First, make sure you've got it bolted securely to the Edwards Ironworker Brake Tooling assembly or the Press Brake Tooling of your 20 Ton or 40 Ton Shop Press. Once it's in place, you can use the hand - crank to adjust the carriage backstop to the position you want for your bend. When using it, always keep your hands clear of the moving parts to avoid any injuries. For maintenance, regularly check the bolts to make sure they're tight. Wipe the gauge down after each use to keep it clean. If you notice any issues like the hand - crank getting hard to turn, give it a little lubricant. This will help it work smoothly and last a long time.
