The industry's safest and fastest MIG and TIG weld cleaning solution

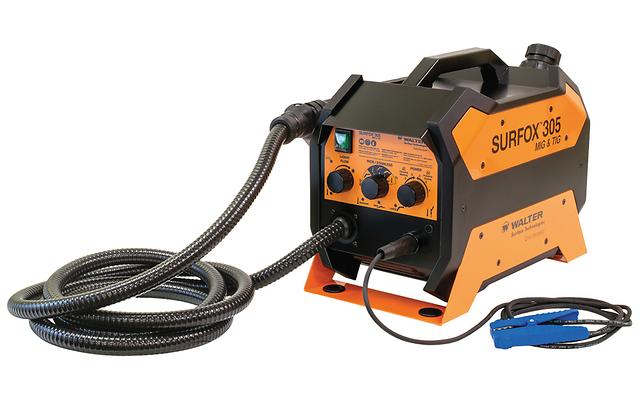

The SURFOX™ 305 is our patented electrochemical system designed for stainless steel and aluminum. It swiftly and effortlessly eliminates heat tint from the heat - affected zones of MIG, TIG, and spot welds. It cleans the surface and enables passivation on stainless steel to start without changing the surface finish. The integrated tank and flow - through design ensure that the electrolyte solution goes directly to the workpiece, reducing the risk of spillage or cross - contamination. The dynamic current control prevents micropitting on the surface.
TECHNICAL SPECIFICATIONS
| ELECTRICAL | |
|---|
ORDER NO
| INPUT
| OUTPUT
| TANK CAPACITY
| LENGTH HOSE
| WEIGHT
|
|---|
| 54 - D 315 | 120 V, 50/60 Hz, 8.0 A | 12 - 30 V AC/DC, 30 A max | 64.2 oz. | 13 ft | 44 lb. |
Using the SURFOX 305 is quite straightforward. First, make sure the machine is properly plugged in with the right input voltage. Fill the integrated tank with the electrolyte solution. Select the appropriate mode (AC for cleaning and marking, DC for polishing and etching) depending on your task. Attach the right brush from the quick - change system. Then, you can start cleaning the MIG, TIG, or spot welds on your stainless steel or aluminum workpiece. When cleaning larger or hard - to - reach areas, use the new brushes. As for maintenance, regularly check the electrolyte solution level and refill it when needed. Keep the machine clean and dry, and store it in a cool place. Make sure to turn off the power when not in use. Be careful not to spill the electrolyte solution as it can cause contamination. Also, keep an eye on the current control to avoid micropitting on the surface of the workpiece.
