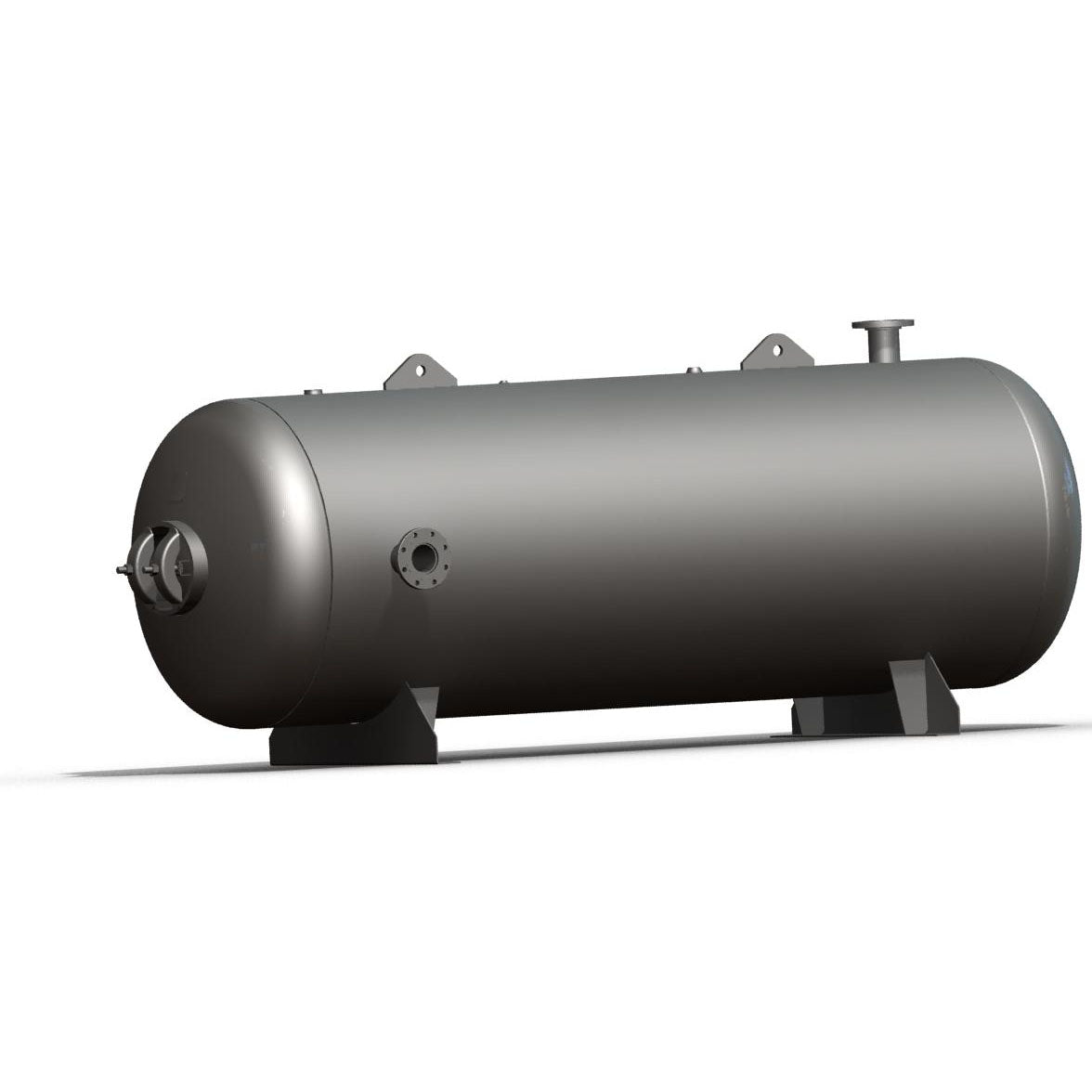

200ARH200 - 200 Gallon Horizontal Air Receiver Tank

Due to the product's weight, please contact us online or at 800-342-3876 to place an order. This 200-gallon horizontal air receiver tank is ASME coded with a 200 psi working pressure. It has only an exterior primer coat. The tank measures 30 inches in diameter and 72 inches in length. With legs adding 3 inches to the overall height (total 33 inches), it weighs 538 pounds and has an interior volume of 26.5 cubic feet. Check the spec sheet for opening sizes and locations. Specification Sheet

Using this 200 - gallon horizontal air receiver tank is simple. First, make sure it's placed on a flat and stable surface. Connect it to your air system following the instructions on the spec sheet. When it comes to operation, keep an eye on the pressure gauge to ensure it stays within the 200 psi working pressure. Do not over - pressurize the tank as it can be dangerous. For maintenance, regularly check the exterior primer coat for any signs of damage or rust. If you notice any issues, consider repainting it. Also, clean the tank periodically to keep it in good working condition. If you have any questions or need further help, don't hesitate to contact us at 800 - 342 - 3876.
