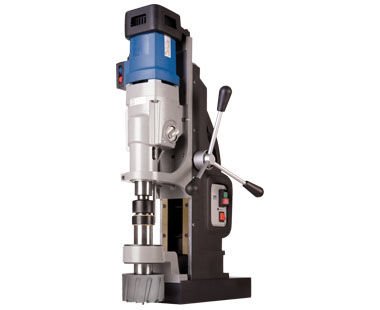

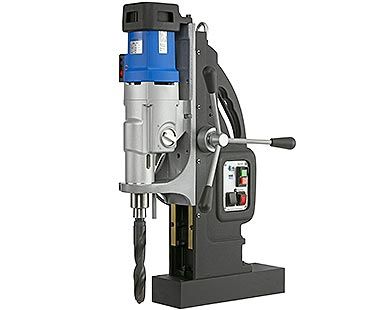

MAB 1300 Portable Magnetic Drill

Industry - Leading Capacity: Drill Holes Up to 6' Dia., Tap Up to 1 - 5/8' Dia., Twist Drill Up to 1 - 3/4' Dia.

• Cut the largest holes in the industry, up to 6' dia.*
• Reversible motor for versatile tapping and reaming tasks
• Get precise control with infinitely variable torque and full - wave electronics
• Benefit from a 4 - speed oil bath gearbox
• Enjoy automatic internal lubrication for smooth operation

Specs

Motor Power	20 Amp / 110 Volt
Weight	112 lbs.
Stroke	3.35' (12' without retainer)
Hole Capacity	6' dia.*
Twist Drill Capacity	1 - 3/4' dia.
Tapping Capacity	1 - 5/8' dia.
Speeds	30 - 80, 50 - 120, 130 - 350, 210 - 550 RPM
Magnet Base Size	4 - 3/4' W x 14' H
Dimensions	34 - 1/2' H x 19 - 1/2' L x 10' W
Magnetic Force (1' plate)	23,600 lbs.
Arbor Bore	1 - 1/4' (3/4' adapter included)
Spindle	MT4
Automatic Lubrication	Included
Automatic Feed	Order MAB 1300 V
*Annular cutter drilling capacity 6” diameter up to 1” thick in carbon steel - Use TCT cutters for large diameters

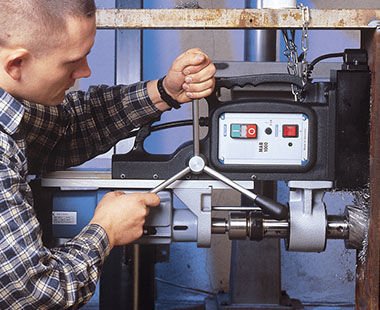

Using the MAB 1300 Portable Magnetic Drill is easy. First, find a suitable surface and turn on the magnetic base to secure the drill firmly. Then, select the appropriate drill bit based on your hole - size needs. You can choose from different speeds using the 4 - speed oil bath gearbox to match your task. For tapping and reaming, use the reversible motor. Remember, for large - diameter holes, it's recommended to use TCT cutters. When it comes to maintenance, check the oil level in the gearbox regularly to keep it running smoothly. Also, clean the drill after each use to prevent debris from building up. The automatic internal lubrication system helps with reducing wear and tear, but make sure it's working properly. If you want the automatic feed feature, you'll need to order the MAB 1300 V. Keep the drill in a dry place when not in use to avoid any damage.
