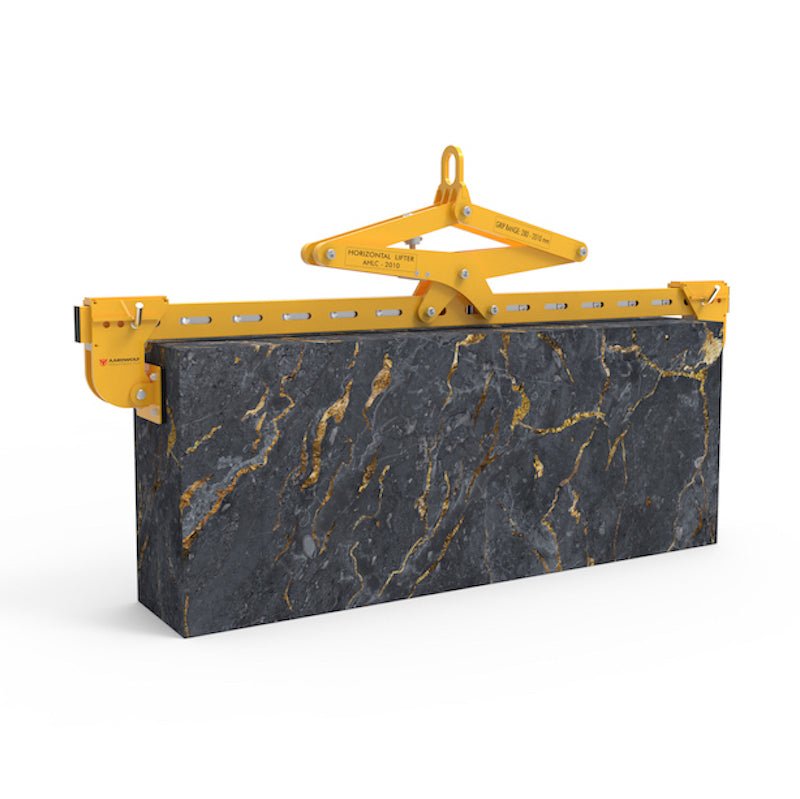

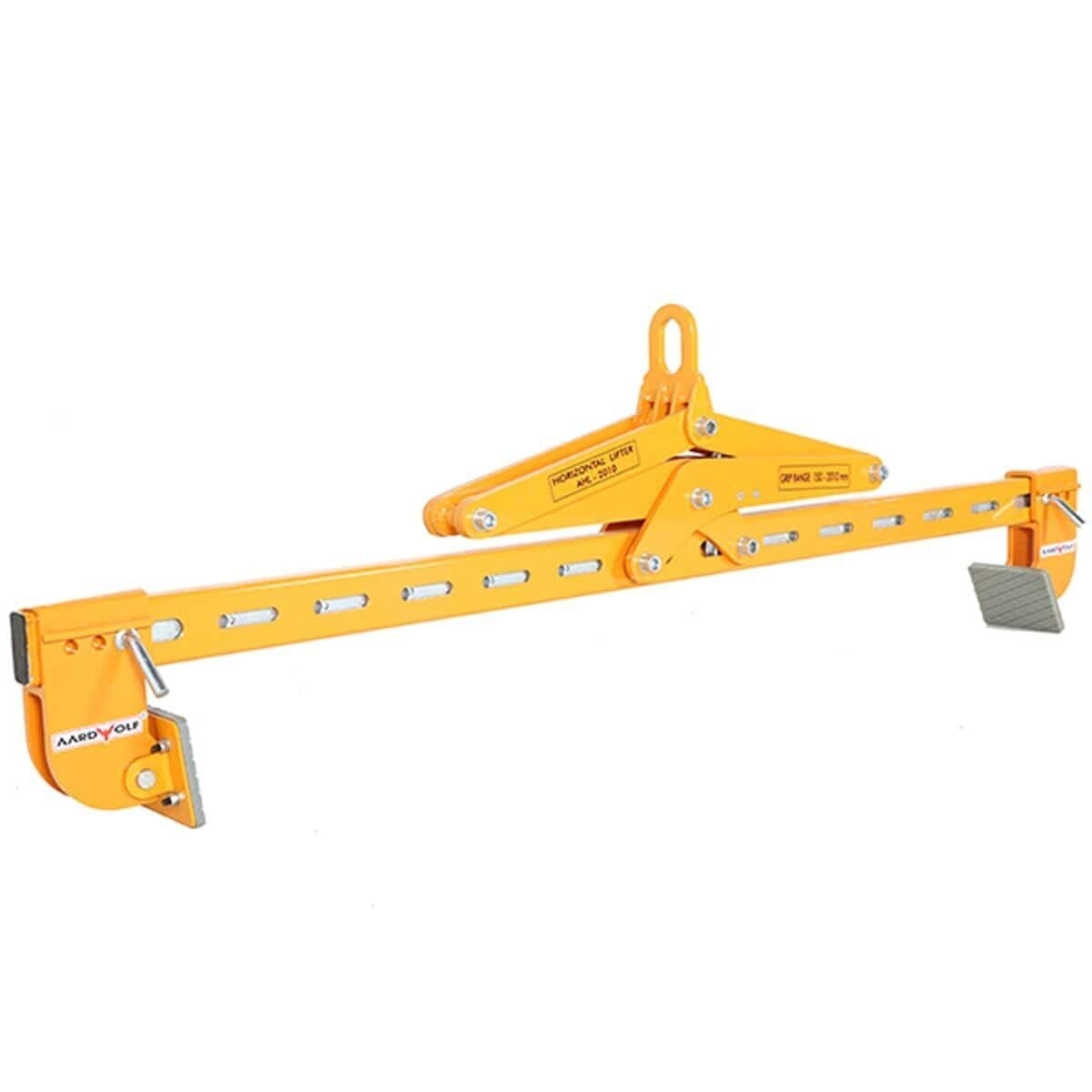

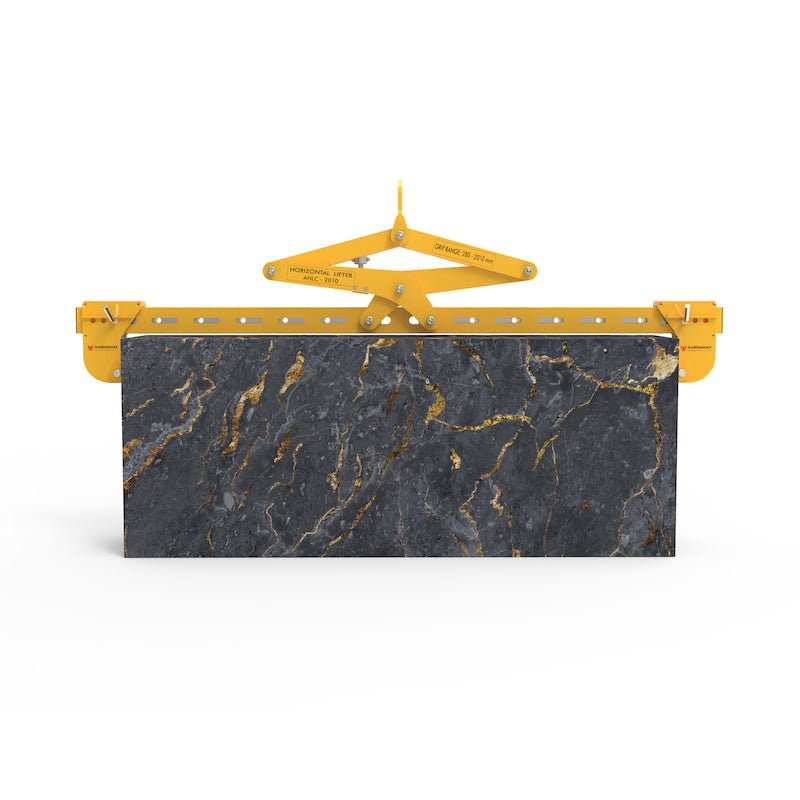

Aardwolf 2010 Horizontal Stone Lifting Clamp
Ideal for horizontally lifting concrete and natural stone. This clamp has a latch that automatically disengages the lifter from the load when it's fully lowered to the ground.
Key Features
- Adjustable opening width for flexible use
- Wide gripping range suitable for various applications
- Durable, high - friction replaceable polyurethane gripping pads
- Lifting eye for easy attachment to crane hook
- Automatically locks and unlocks the load
- Vulcanized rubber pads for better grip
Specifications

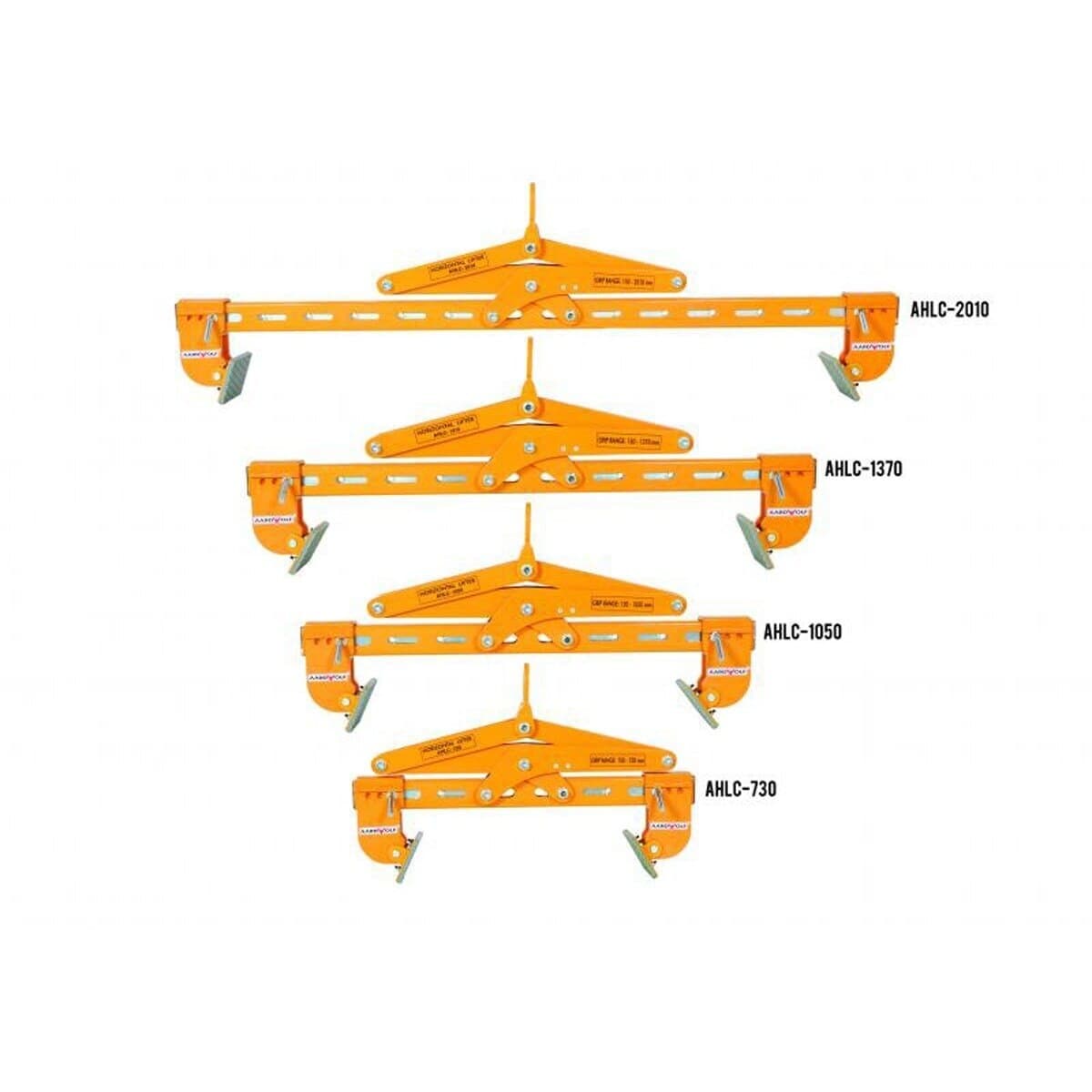

| Model | Grip Range | Lifting Capacity | Weight of Lifter |
| AHLC - 730 | 11' - 28' | 3307 | 247 |
| AHLC - 1050 | 11' - 41' | 3307 | 267 |
| AHLC - 1370 | 11' - 54' | 3307 | 273 |
| AHLC - 2010 | 11'' - 79'' | 3307 | 302 |
| AHLC - 2010 - 4 | 12'' - 79'' | 8818 | 503 |
Using the Aardwolf 2010 Horizontal Stone Lifting Clamp is easy. First, adjust the opening width according to the size of the stone or concrete you're lifting. Then, attach the lifting eye to the crane hook. Once you've placed the clamp on the load, it will automatically lock. When the load is lowered to the ground, the latch will release the lifter. When using, always check the grip range and lifting capacity of the specific model you're using to make sure it matches your load. Avoid overloading the clamp. For maintenance, regularly inspect the replaceable polyurethane gripping pads and vulcanized rubber pads. Replace them if they show signs of excessive wear. Also, keep the clamp clean and store it in a dry place when not in use.
