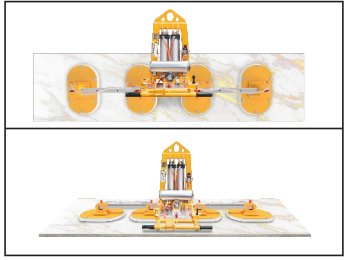

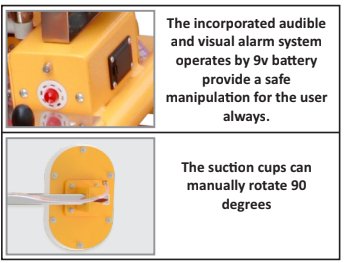

The Abaco Multi Stone Vacuum Lifter (AMSVL100) is an outstanding tool for transporting large - size stone slabs. It's typically paired with a hoist to lift slabs onto a processing table or move them around in a warehouse or workshop. Key features include: Four Oval Vacuum Pads with multiple position choices, a load limit of 2,200 pounds, a Dual Safety Alarm System, and it comes with a Hand Trolley. The traverse beam length is extended up to 86 - 7/8' (2206mm), offering more suction cup position options to fit various stone slabs. With a work load limit of up to 2200lbs (1000kg), it ensures high efficiency and safety during operation. It's easy to control via an air pressure regulator. The 9v battery - operated audible and visual alarm system provides safe operation. Plus, it can smoothly lift the stone slab from 0 to 90 degrees and back.
Using the Abaco Multi Stone Vacuum Lifter is simple. First, connect it to a hoist as recommended. When positioning the vacuum pads, use the multiple position options to fit the size of your stone slab. The load limit is 2200 pounds, so make sure your slab doesn't exceed this weight. During operation, you can control the device easily with the air pressure regulator. The dual safety alarm system, powered by a 9v battery, will alert you if there are any issues. To rotate the slab, just use the device to lift it from 0 to 90 degrees or vice versa. For maintenance, regularly check the vacuum pads for any wear and tear. Also, keep the air pressure regulator in good condition. If the alarm system goes off, stop the operation immediately and check for problems.
