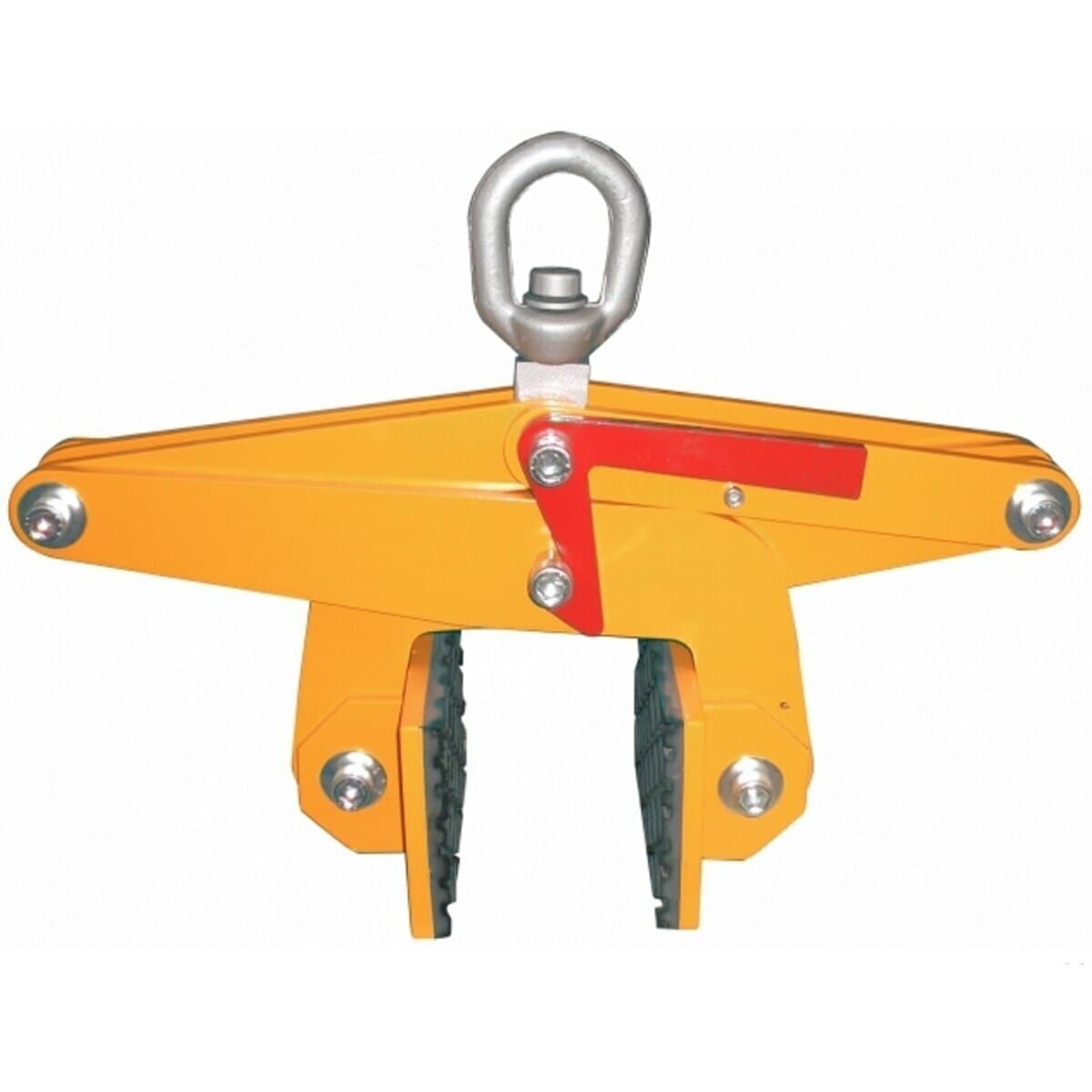

Abaco Machines' Scissor Clamp for Effortless Stone Slab Lifting
Make moving stone slabs a breeze with Abaco's SC150 Scissor Clamp. Trusted by stone fabricators, slab yards, and distributors, this clamp is perfect for handling granite, marble, limestone, sandstone, onyx, porcelain, engineered stone, and more within its grip range.
Key Features of the SC150 Scissor Clamp
- Auto - lock for simple release
- Durable, fully vulcanized rubber pads for long - lasting use
- All - natural rubber ensures a better grip
- Protective rubber on the jaws prevents chipping
- Comes with a swivel eye and bow shackle
- Replacement pads are available
Abaco Scissor Clamps Comparison Chart
Model | SC100AL | SC100AL - M2 | SC100 | SC150 | SC350 | SC400 |
Length In (mm) | 21 5/16 (542) | 21 1/4 (540) | 21 5/16 (542) | 23 1/4 (590) | 22 5/8 (575) | 28 1/8 (715) |
Width In (mm) | 7 1/16 (180) | 7 1/16 (180) | 7 1/16 (180) | 9 13/16 (250) | 9 13/16 (250) | 7 1/16 (180) |
Height In (mm) | 15 3/4 (400) | 15 3/4 (400) | 15 3/4 (400) | 17 5/16 (440) | 20 1/2 (520) | 18 7/8 (480) |
Grip Range In (mm) | (3/8 - 3 15/16) (10 ~ 100) | (3/8 ~ 3 15/16) (10 ~100) | (3/8 - 3 15/16) (10 - 100) | (1 3/16 - 5 7/8) (30 - 150) | (5 7/8 - 13 3/4) (150 - 350) | (7 7/8 - 15 3/4) (200 - 400) |
Net Weight lbs (kg) | 46.2 (21) | 46.2 (21) | 46.2 (21) | 70.4 (32) | 125.4 (51) | 103.4 (38) |
W.L.L. lbs (kg) | 2860 (1300) | 2860 (1300) | 2800 (1300) | 3300 (1500) | 3520 (1600) | 2420 (1100) |
Using the Abaco SC150 Scissor Clamp is quite straightforward. First, make sure the stone slab you want to move fits within the clamp's grip range. Place the clamp on the slab, and the auto - lock feature will make it easy to secure and release later. When lifting, use the included swivel eye and bow shackle properly. Remember, the all - natural rubber pads offer a great grip, and the protective rubber on the jaws helps prevent chipping of the stone. As for maintenance, check the rubber pads regularly. If they show signs of wear, you can replace them as replacement pads are available. Also, keep the clamp clean and dry when not in use to ensure its long - lasting performance. Always use the clamp within its specified weight limits to guarantee safety.
