BUILT TO LAST

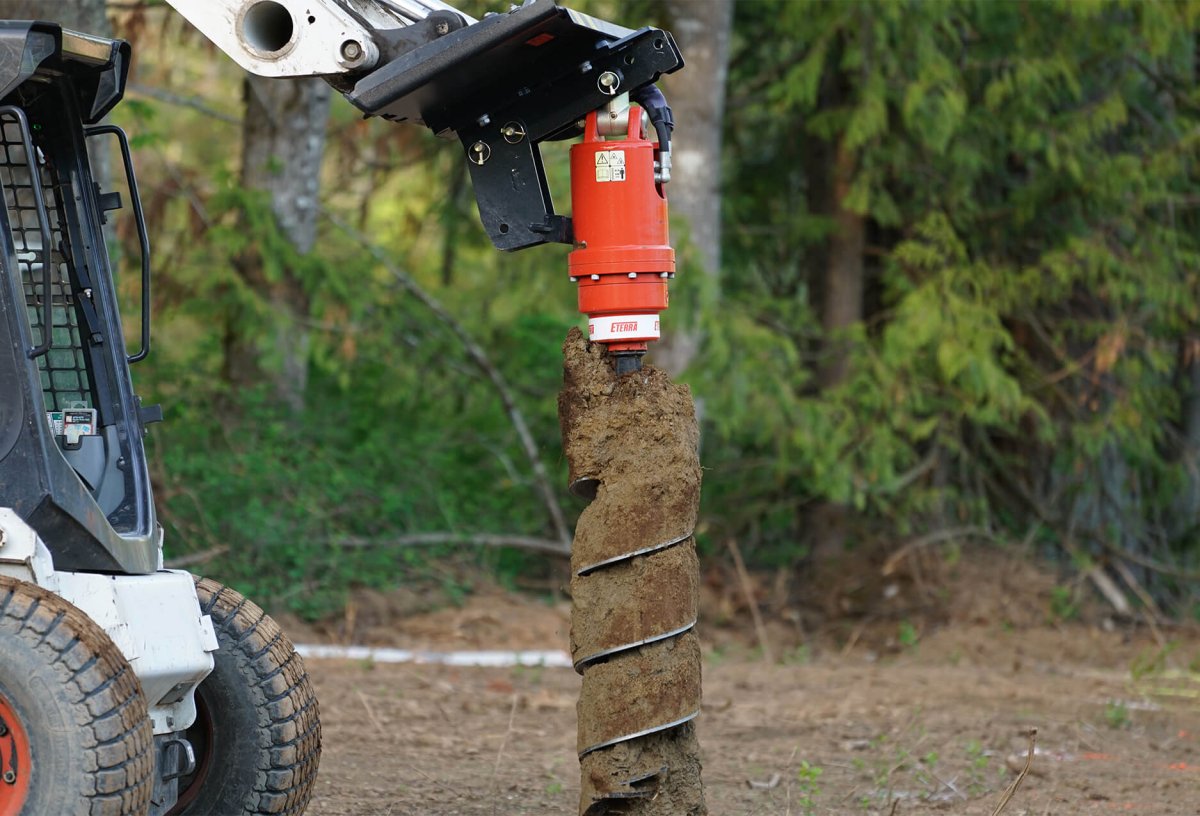

Eterra's auger systems for skid steers and excavators are well - known for their outstanding reliability and toughness. We offer three auger models that can handle hydraulic flow from 7 to 30 GPM. Drill with confidence in tough soil conditions and enhance your machine's versatility with useful accessories and extensions. This will surely become your favorite attachment.
GET TO KNOW ETERRA'S AUGER DRIVE

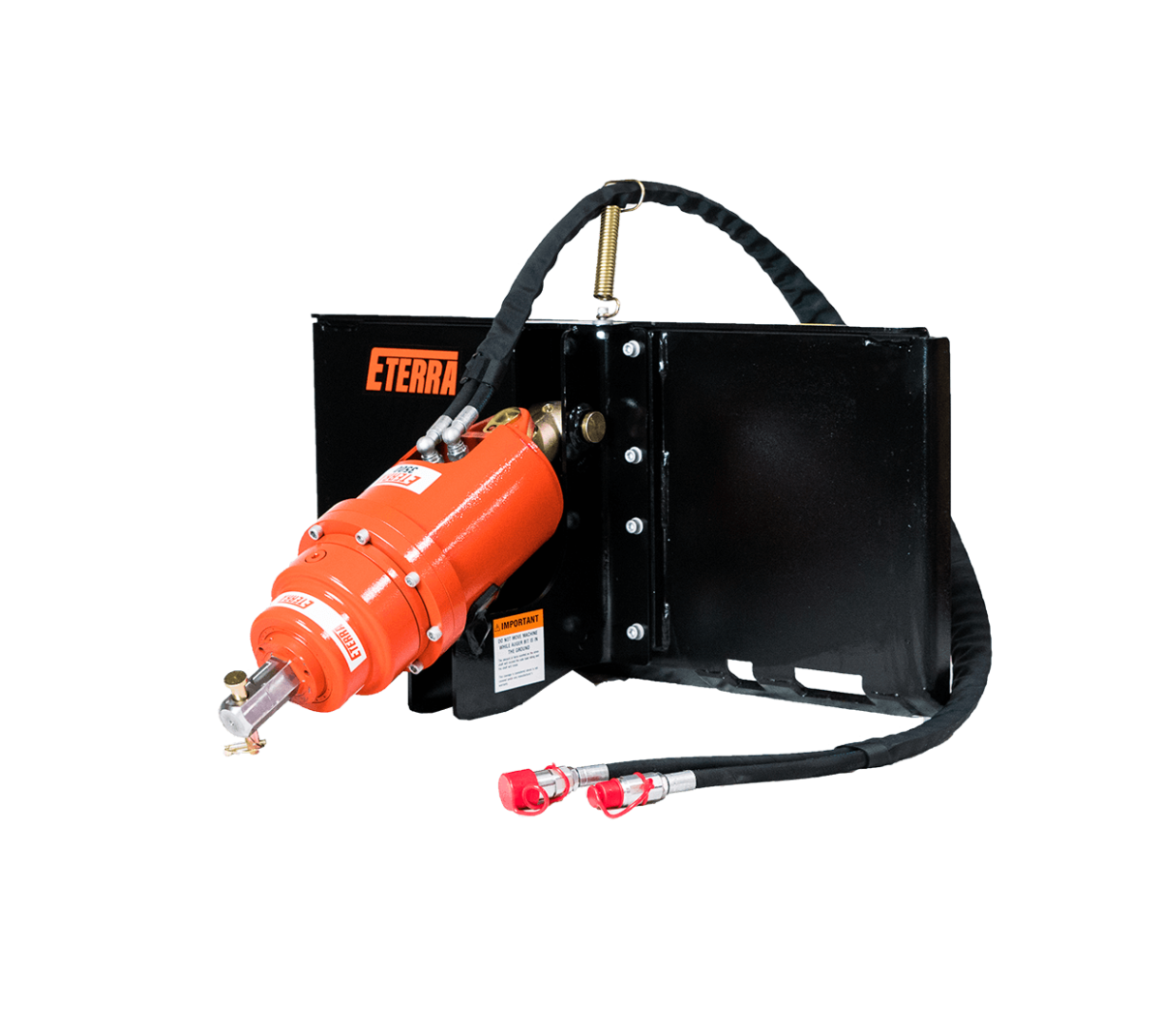

The Eterra Auger Drive comes with a sturdy Planetary Gearbox and a modern design that completely stops the anti - shaft from pulling out. The 2' Hex output shaft can be paired with an Auger Bit or other accessories like the Eterra Stump Planer, Spiral Splitter, and Cement Mixing Bowl. You can choose from skid steer standard, flip mount, or Excavator Mount for installation.
UNDER THE HOOD
These powerful Auger Drives are powered by a high - quality Planetary Gearbox. The simple pin - on design and the included hoses and couplers make it a breeze to connect the mount to your machine and start working right away. Available in three sizes to fit skid steers and excavators with hydraulic flow between 7 - 30 GPM.
CONSTRUCTED FROM STRONG MATERIALS
It's made from an A572 Grade 50 Steel housing. The internal robust planetary drive system is top - notch in North America. The output shaft is secured inside against a thrust plate, eliminating the risk of shaft pullout.
Features
2500 Drive Flow Range: 7 - 17 GPM
3500 Drive Flow Range: 10 - 25 GPM
4500 Drive Flow Range: 13 - 30 GPM
Weight (drive only): 140 lbs.
2500 Speed Range: 36 - 87 RPM
3500 Speed Range: 40 - 100 RPM
4500 Speed Range: 42 - 97 RPM
Design Specs
2500 Torque @ 3500 PSI: 2100 ft - lbs
3500 Torque @ 3500 PSI: 2680 ft - lbs
4500 Torque @ 3500 PSI: 3350 ft - lbs
Output Shaft: 2 hex'
Recommended Bit Size: 36 For 3500 & 4500 Models'
Recommended Auger Sizes: 4 - 24' diameter
Using the Eterra Auger Drive Attachment is quite simple. First, choose the right mounting option according to your machine, whether it's a skid - steer standard, flip mount, or excavator mount. Then, connect the mount to your machine using the included hoses and couplers with the simple pin - on design. Once it's hooked up, you're ready to start drilling. When selecting an auger bit or other accessories, refer to the recommended sizes in the design specs. For normal operations, make sure your machine's hydraulic flow is within the specified range of the drive model you're using. When it comes to maintenance, regularly check the A572 Grade 50 Steel housing for any signs of damage or wear. Also, keep an eye on the output shaft and the internal planetary drive system. If you notice any abnormal noises or reduced performance, stop using the attachment and have it inspected. Store the attachment in a dry place when not in use to prevent rust and other damage.
