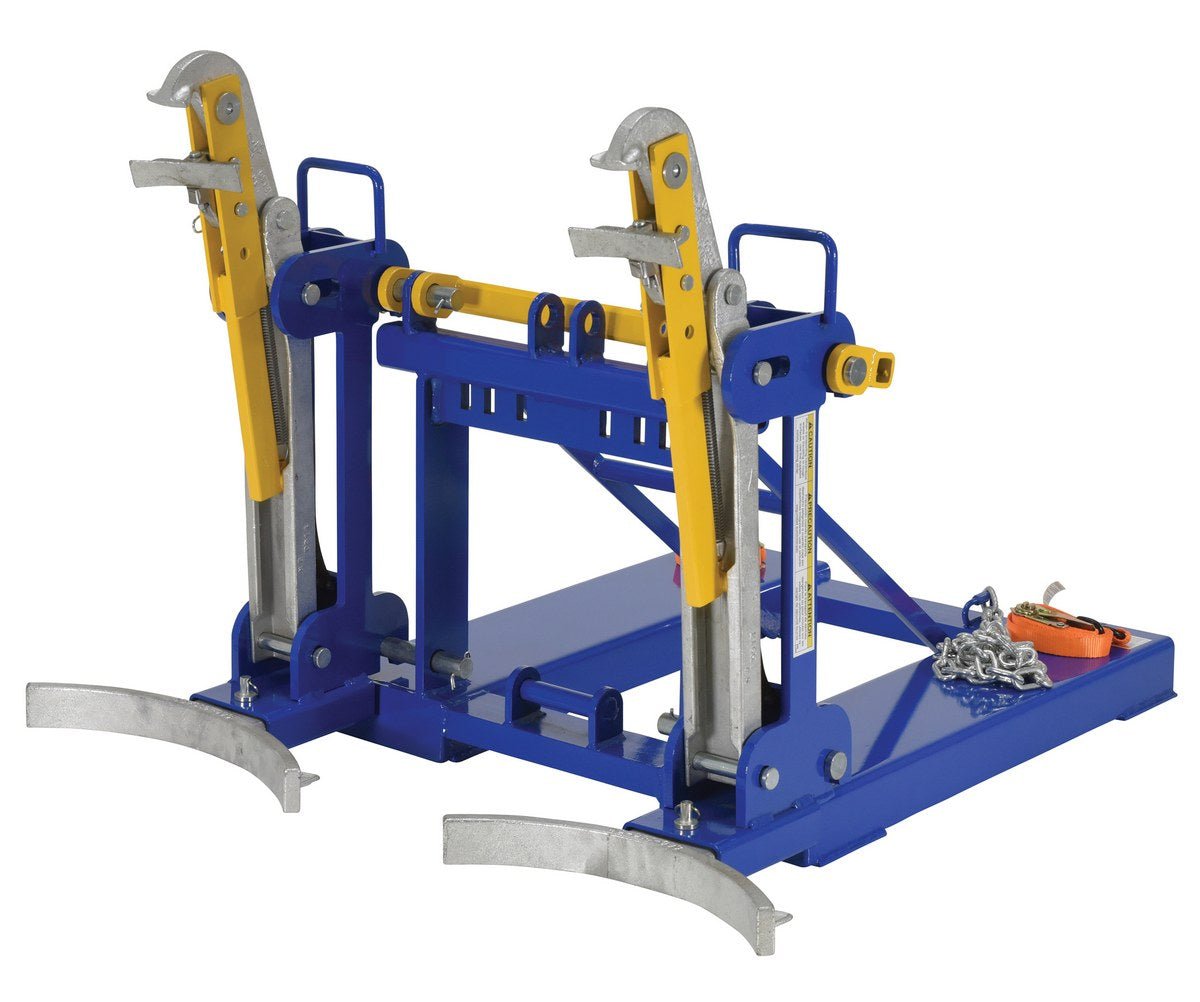

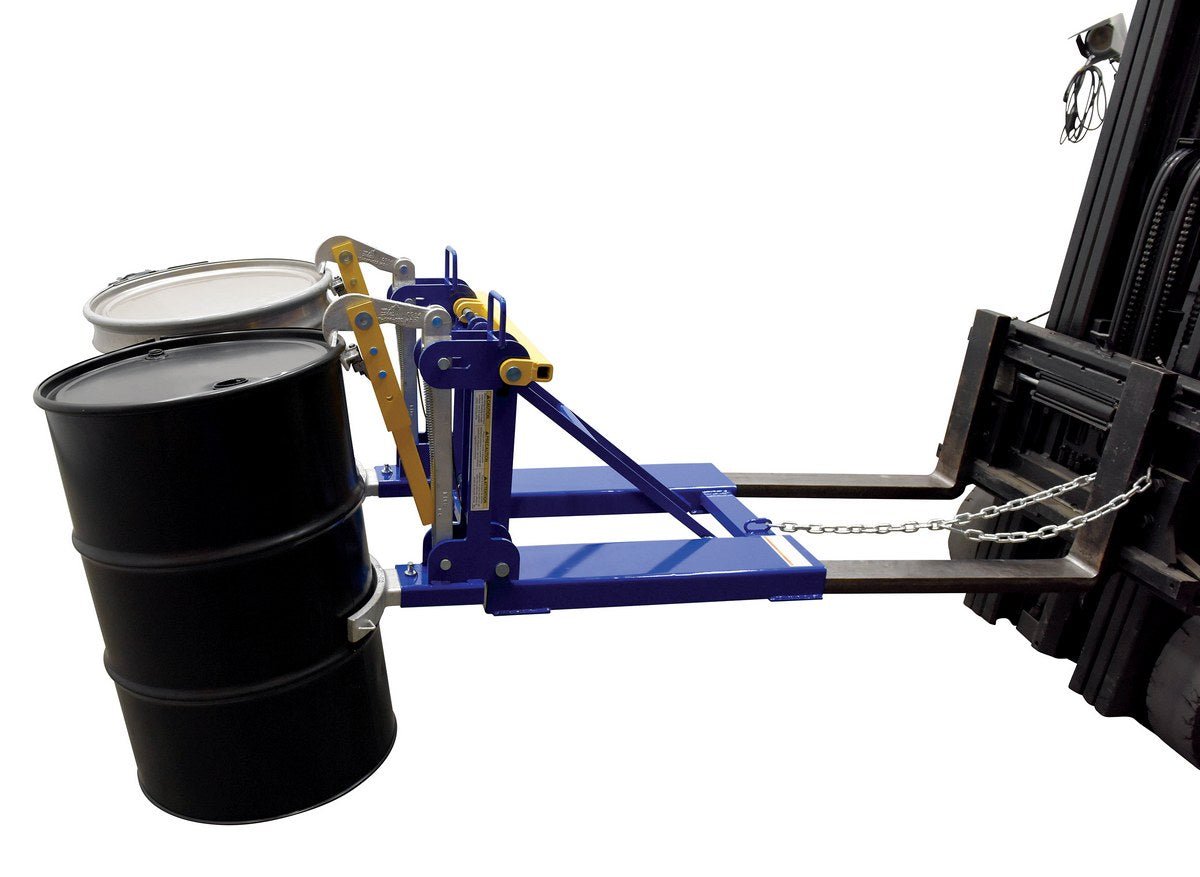

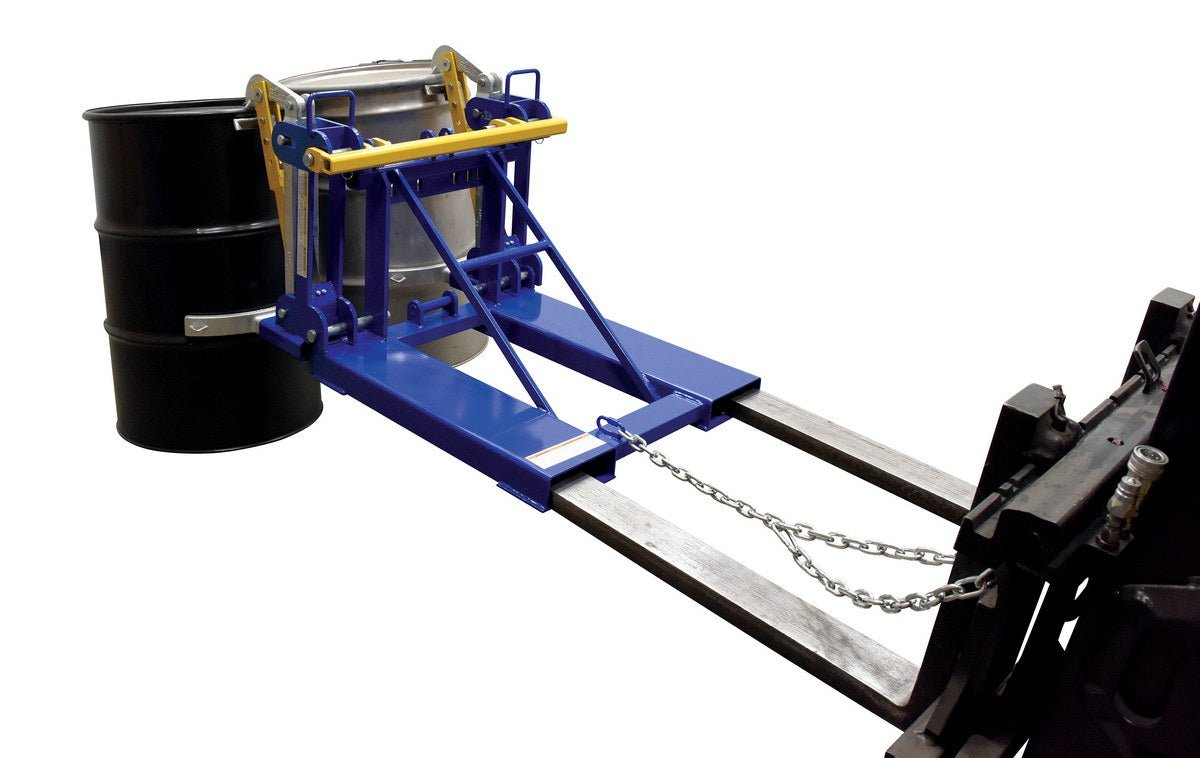

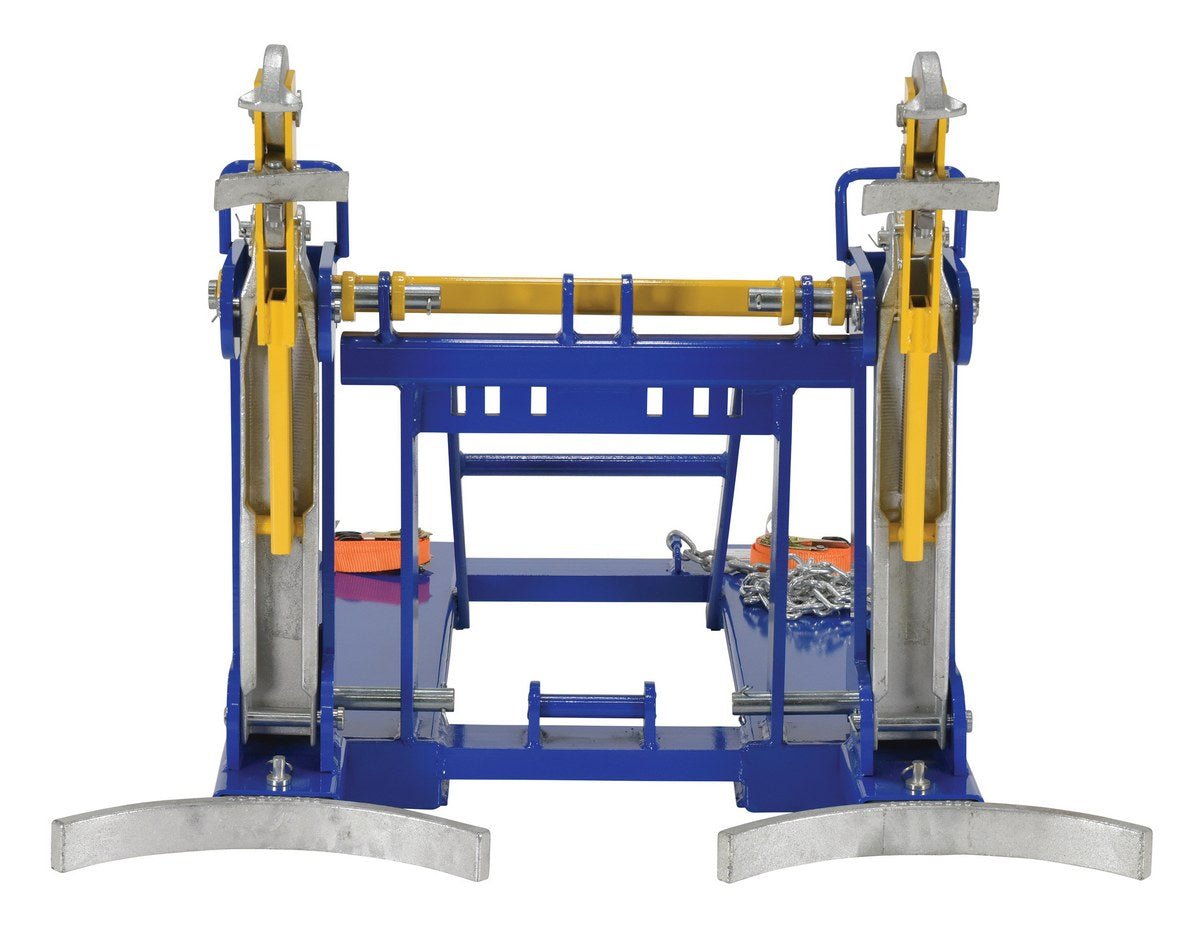

This well - tested design enables a fork truck operator to effortlessly secure, move, and release drums without leaving the fork truck seat. Ideal for open (with lid installed and secured) and closed - head 30 and 55 - gallon plastic, steel, and fiber drums having a strong top lip to bear the drum's weight. You can choose between single - drum or double - drum setups. It comes with a safety restraint to attach the unit to the fork truck. Constructed from welded steel with a powder - coat finish for long - lasting toughness. The fork pockets, measuring 7 - 1/2' wide by 2 - 1/2' high, fit on 20 - 1/2' centers. A ratchet strap is provided to hold the drum to the unit on rough terrain. Extra or replacement ratchet straps are available; contact the factory. It meets OSHA 1910 - 178 requirements. Key features include simple and easy operation, low - maintenance design, fully automatic operation, and belt and roller units that offer a gentle lifting surface to reduce scratches. All measurements are approximate, and minor variations may occur. Shown weights are approximate shipping weights. Here are the details of different models:
| Model | Number of Drums | Capacity (lbs) | Overall Size (WxLxH) | Wt. (lbs) |
| ---- | ---- | ---- | ---- | ---- |
| FMDL - 1 | 1 | 1,000 | 28 - 1/2'x42 - 5/8'x31 - 1/4' | 227 |
| FMDL - 2 | 2 | 2,000 | 41 - 1/4'x42 - 5/8'x31 - 1/4' | 311 |
| FMDL - 1 - LDS - R3 (With Rollers) | 1 | 1,000 | 28 - 1/2'x46 - 1/2'x31 - 1/4' | 227 |
| FMDL - 2 - LDS - R3 (With Rollers) | 2 | 2,000 | 46 - 1/4'x46 - 1/2'x31 - 1/4' | 311 |
| FMDL - 1 - LDS - B1 (With Belt) | 1 | 1,000 | 28 - 1/2'x44 - 5/8'x31 - 1/4' | 227 |
| FMDL - 2 - LDS - B1 (With Belt) | 2 | 2,000 | 45 - 5/16'x44 - 5/8'x31 - 1/4' | 311 |
Using this drum lifter is a breeze. Just drive your fork truck to the drum, and the automatic mechanism will help you secure it without getting off the seat. For rough terrains, use the provided ratchet strap to hold the drum firmly to the unit. If you need extra or replacement straps, reach out to the factory. When it comes to maintenance, since it has a low - maintenance design, you don't have to worry too much. But it's a good idea to regularly check the welded steel parts for any signs of wear and the powder - coat finish for scratches. Also, keep in mind that all the measurements are approximate, so there might be slight differences. And make sure the drum you're using has a strong enough top lip to support its weight. This lifter meets OSHA 1910 - 178 requirements, so you can use it with confidence.
