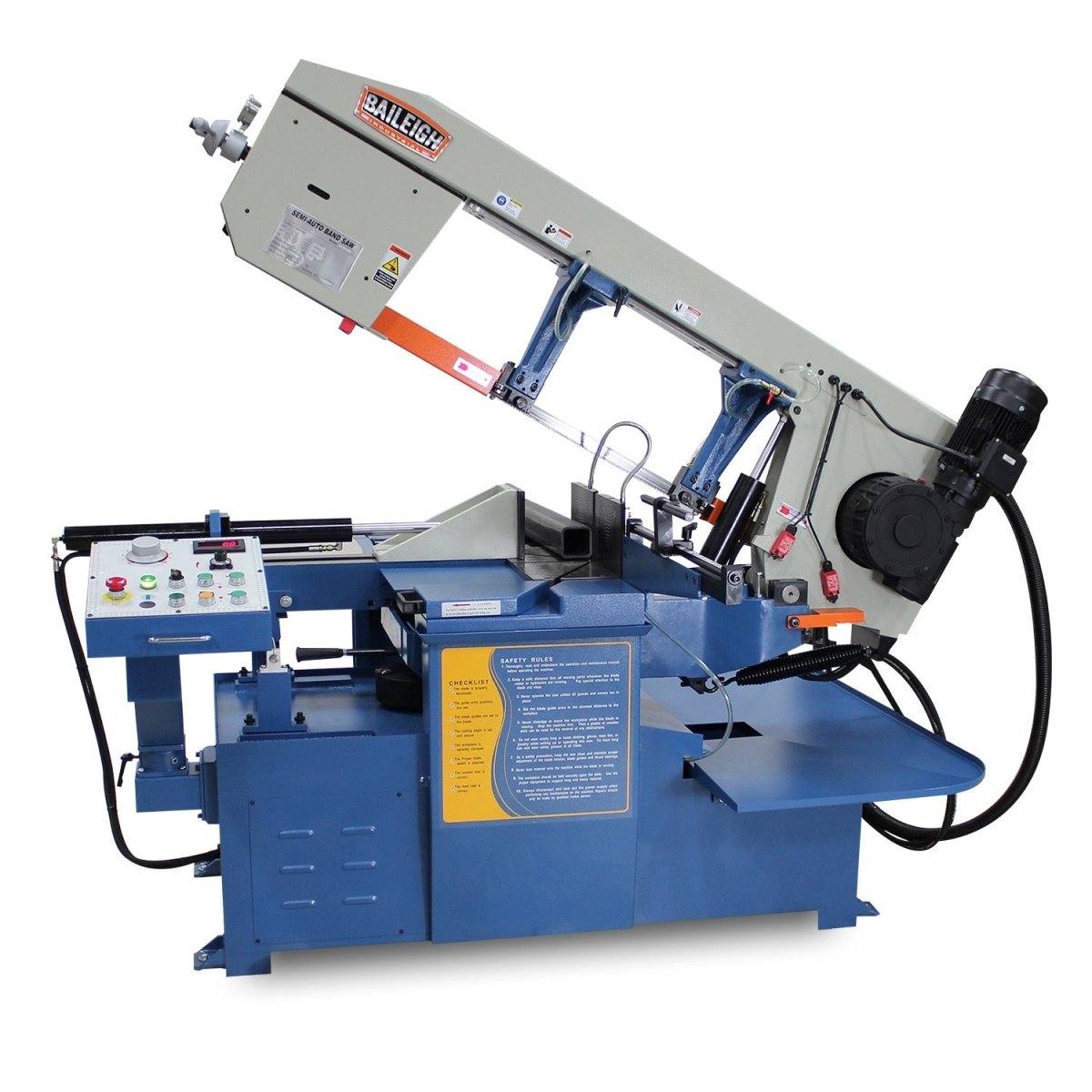

Band Saw BS-20SA-DM

Our semi - automatic hydraulic bandsaw machine is a game - changer. Crafted with a cast iron bow and a steel frame, it promises decades of top - notch quality. The hydraulic system speeds up production and eases your workload. It has a maximum capacity of 13” OD round at 90°. The included 1.25” blade makes cuts faster and more accurate. The dual - mitering feature allows it to move 45° left and 60° right with a simple push or pull. The inverter drive enables infinite blade speed adjustments from 69 to 306 fpm, so you can fine - tune for different materials like mild steel, bronze, or aluminum. The digital readout (DRO) makes it easy to reproduce settings. Available in 220 - volt or 440 - volt triple - phase models (440 - volt is a special order). The cast iron bow reduces vibrations for high - quality cuts. The hydraulic vise, downfeed, and bow return boost production efficiency. You can adjust the hydraulic descent pressure for faster cuts and longer blade life. The cutting head return position can be modified for quicker cycle times on small pieces. It comes with heavy - duty infeed and outfeed tables for easy material handling. Our patented blade tension device simplifies tension setting. The electro - welded steel frame gives the machine strength for accuracy. Its compact design saves space in your shop. The high - pressure flood coolant system washes away chips and extends blade life. We usually keep this horizontal band saw and its parts in stock for fast deliveries. It comes with a 1 - year parts warranty and lifetime technical support by phone.

Using this band saw is a breeze. First, set your material on the heavy - duty infeed table. Decide on the miter angle by moving the dual - mitering head 45° left or 60° right. Adjust the blade speed using the inverter drive according to the material you're cutting, like mild steel or aluminum. You can use the digital readout to easily reproduce settings later. Then, set the hydraulic descent pressure based on the material to get faster cuts and a longer blade life. Once everything is set, press start and the saw will handle the rest automatically. For smaller pieces, you can change the cutting head return position to speed up the cycle. When it comes to maintenance, keep the high - pressure flood coolant system working properly to wash away metal chips and extend the blade's life. Check the blade tension regularly using the patented blade tension device. Make sure to adjust it until the black arrow lines up with the green liquid - filled gauge. Also, since we keep parts in stock, if something goes wrong, you can get replacements quickly. And remember, the saw is covered by a 1 - year parts warranty, and you can always call for lifetime technical support if you need help.
