Description

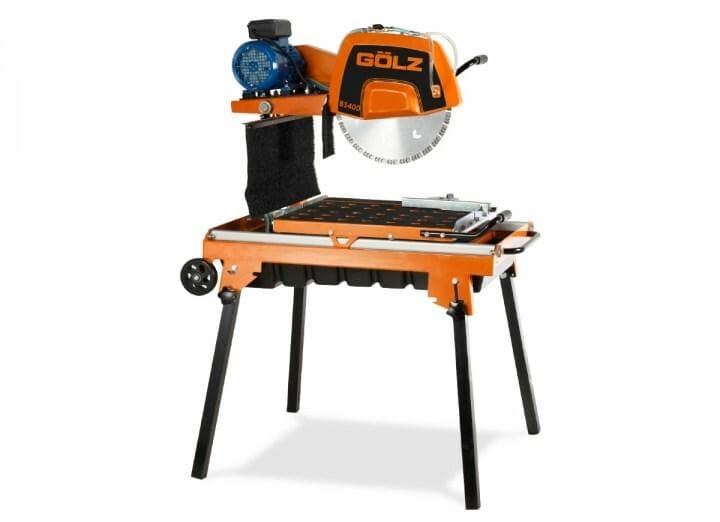

The GÖLZ BS400 is a powerful and robust masonry table saw. It's available with an electric motor or a Honda gasoline engine, giving you options based on your needs. With a cutting length of 26' (650 mm) and a 16' (Ø 400 mm) blade, it can handle various cutting tasks. The cutting depth can reach up to 6' (11') 150 mm (280 mm) for double - sided cutting. Key features include an optional electrical motor or gasoline engine, a cutting head with an elastic device for easy operation, an electric water pump with quick coupling (electrical motor version) or a high - efficient mechanical water pump (Honda motor version), a removable water tub for easy cleaning, foldable legs, a removable blade guard for easy blade change, a special water nozzle for optimized water cooling, and transportation wheels for easy moving. There are two models: BS400 - E with a 230 V / 400 V, 50 Hz electric motor and 2.2 kW power, and BS400 - P with a Honda GX160 engine and 4.0 kW / 5.5 HP power. Accessories like a spare water pump with connector plug and a 45° Miter - block are also available.
Using your GÖLZ BS400 masonry table saw is easy. First, decide whether you want to use the electric motor or the Honda gasoline engine model. If it's the electric version, make sure to connect it to the right power supply (230 V or 400 V, 50 Hz). For the gasoline - powered one, fill up the fuel. Before starting, check the blade and make sure it's properly installed and tightened. The cutting head has an elastic device, which makes it easy to operate during cutting. The water pump is important for cooling the blade. In the electric motor version, the electric water pump has a quick - coupling, so you can change it easily if needed. In the Honda motor version, the mechanical water pump is efficient. When cutting, keep in mind the maximum cutting length of 650 mm and the maximum cutting depth of 150 mm (280 mm for double - sided cutting). For cleaning, the water tub is removable, so you can empty and clean it regularly. Also, the blade guard is removable, which allows you to change the blade when it's worn out. After use, store the saw in a dry place. For maintenance, check the shaft speed regularly, and make sure all the parts are in good condition. If you need any accessories like a spare water pump or a 45° miter - block, you can order them using the provided order numbers.
