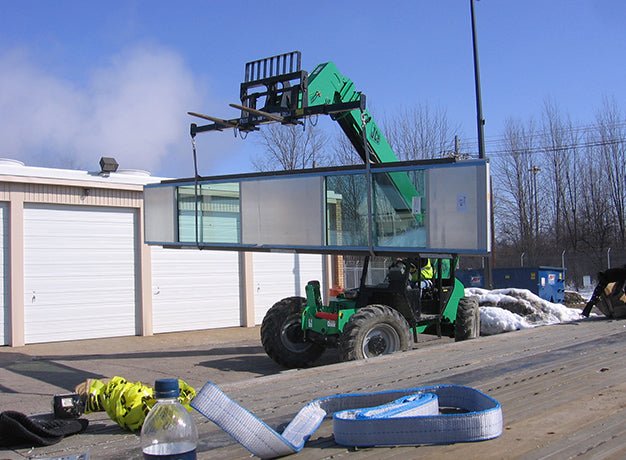

Easily and safely handle extra - long and awkward materials with A Star Industries' spreader bars. These bars are ideal for long items that tend to bend, like rebar cages, beams, trusses, metal roofing, and siding. You have a choice of 4 crane spreader bar options and 7 forklift spreader bar options. They can be used with rough - terrain forklifts, including straight - mast or extendable - reach types that accept 7 - inch wide by 2.5 - inch thick forks. The spreader bar has two separate hook points for crane suspension. All crane spreader bars come with a center hook. Here are the models:
**Crane Spreader Bar Models**
| Model | Type | Size | Capacity | Weight |
| ---- | ---- | ---- | ---- | ---- |
| 1142 | Fixed length | 6ft | 10,000 lbs | 220 lbs |
| 1177A | Fixed length | 12ft | 20,000 lbs | 725 lbs |

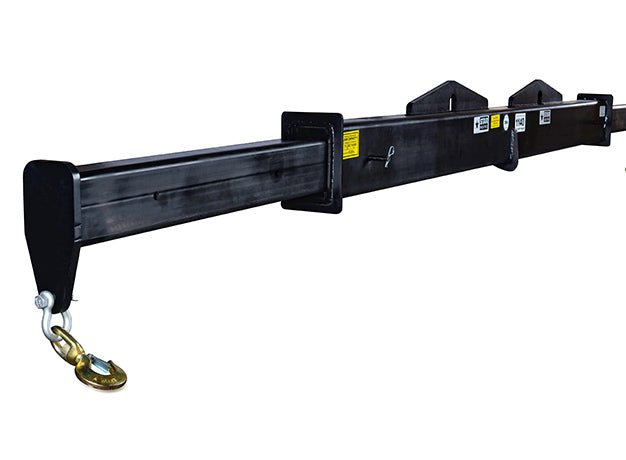

| 1150A | Adjustable | 8ft to 12ft | 8,000 / 6,400 / 5,000 lbs | 534 lbs |
| 1160A | Adjustable | 12ft to 20ft | 16,800 / 11,200 / 8,000 lbs | 1140 lbs |

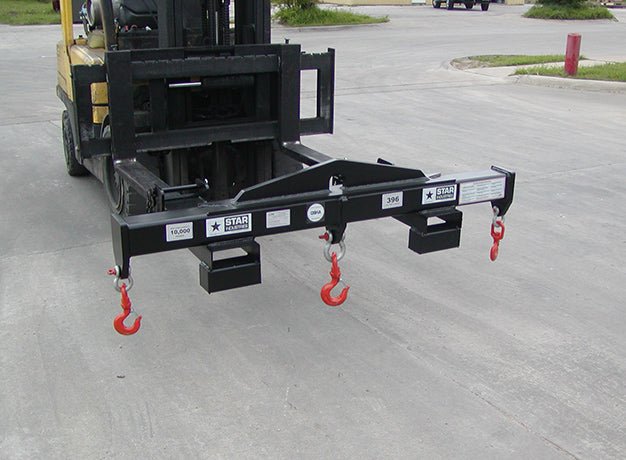

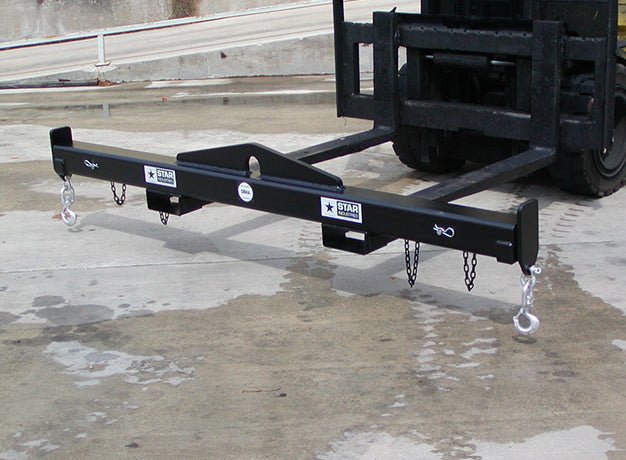

**Forklift Spreader Bar Models**
| Model | Type | Size | Fork Pocket | Capacity | Weight |
| ---- | ---- | ---- | ---- | ---- | ---- |

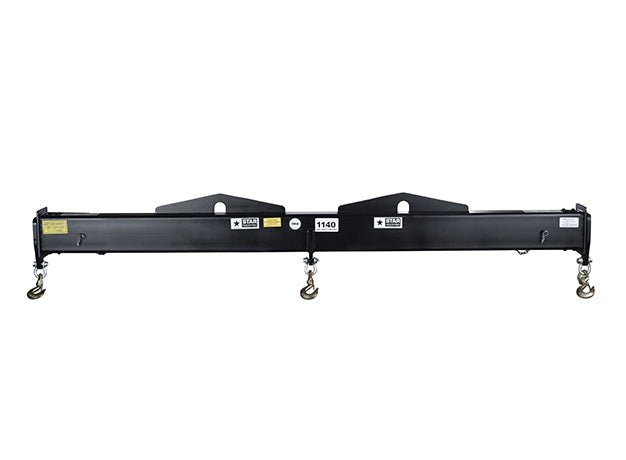

| 1140 | Fixed length | 6ft | 39” OC. Requires 48” or wider carriage | 10,000 lbs | 390 lbs |
| 1140 - 24CC | Fixed length | 6ft | 24” OC. Requires 32” or wider carriage | 10,000 lbs | 390 lbs |
| 1149 | Fixed length | 7ft | 39” OC. Requires 48” or wider carriage | 34,000 lbs | 830 lbs |
| 1177B | Fixed length | 12ft | 39” OC. Requires 48” or wider carriage | 20,000 lbs | 825 lbs |
| 1150C | Adjustable | 8ft to 10ft to 12ft | 39” OC. Requires 48” or wider carriage | 8,000 / 6,400 / 5,000 lbs | 545 lbs |
| 1150C - FP300C | Adjustable | 8ft to 10ft to 12ft | 30” OC. Requires 38” or wider carriage | 8,000 / 6,400 / 5,000 lbs | 545 lbs |
| 1160B | Adjustable | 12ft to 16ft to 20ft | Requires 48” or wider carriage | 16,800 / 11,200 / 8,000 lbs | 1140 lbs |
| 1160BA | Adjustable includes crane pick points | 12ft to 16ft to 20ft | Requires 48” or wider carriage | 16,800 / 11,200 / 8,000 lbs | 1140 lbs |
Using these spreader bars is quite straightforward. First, select the right model based on your material's size and weight. For crane spreader bars, hook the bar onto the crane using the two separate hook points. Make sure the center hook is properly positioned. When using forklift spreader bars, ensure your forklift has the right fork size and carriage width as specified for each model. Slide the forks into the fork pockets.
Here are some important notes. Don't exceed the capacity of the spreader bar. Always check the weight of your material before using the bar. Also, when using with a forklift, drive carefully to avoid sudden movements that could cause the load to shift.
For maintenance, regularly inspect the spreader bar for any signs of wear or damage, like cracks or bent parts. Clean it after use to prevent rust. If you notice any issues, don't use the bar until it's been properly repaired or replaced.
