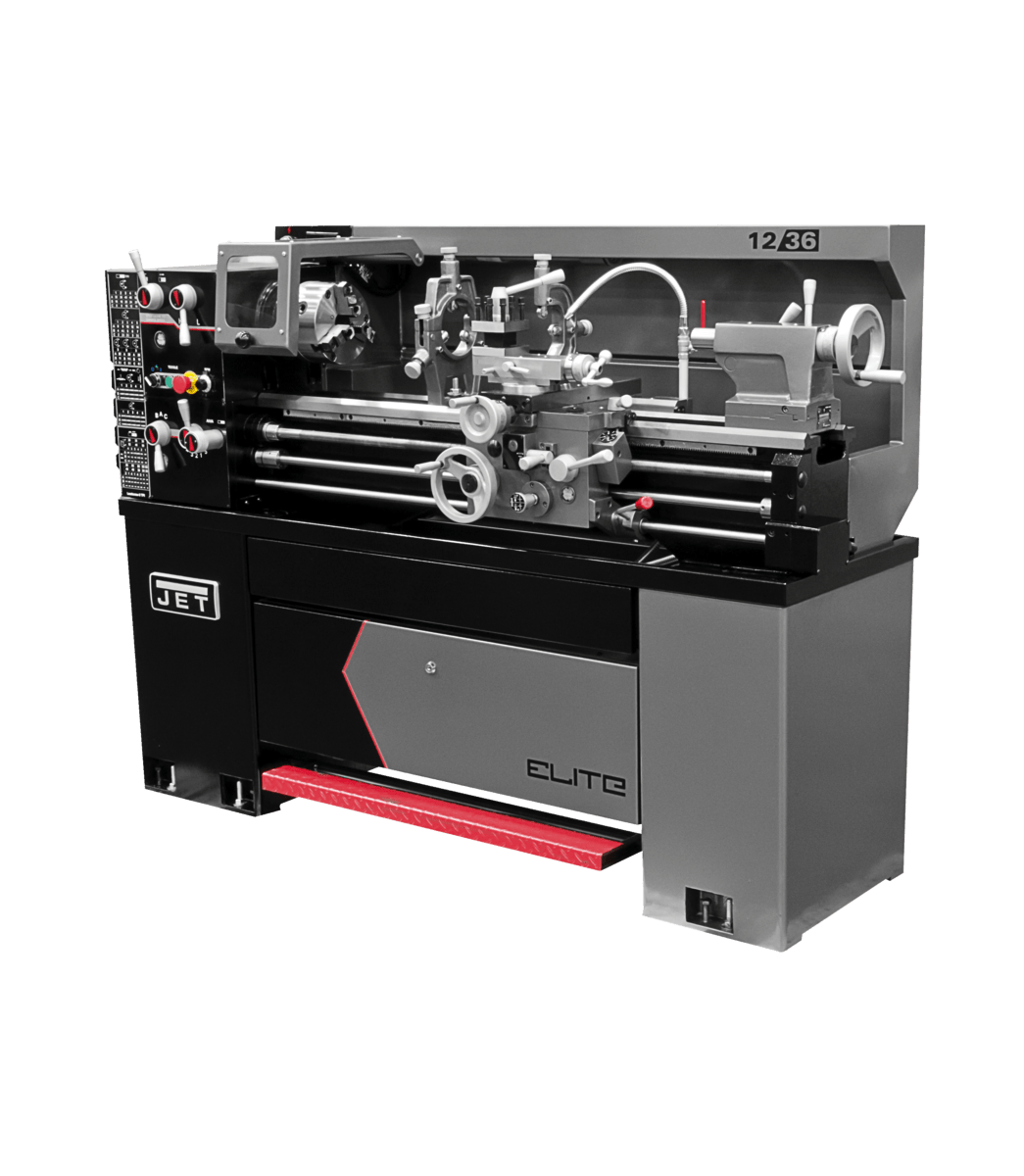

h2>Compact yet powerful, these Elite EVS lathes are a perfect blend of performance and space - efficiency. Ideal for schools, small workshops, and engineering labs, they pack big features into a small footprint.

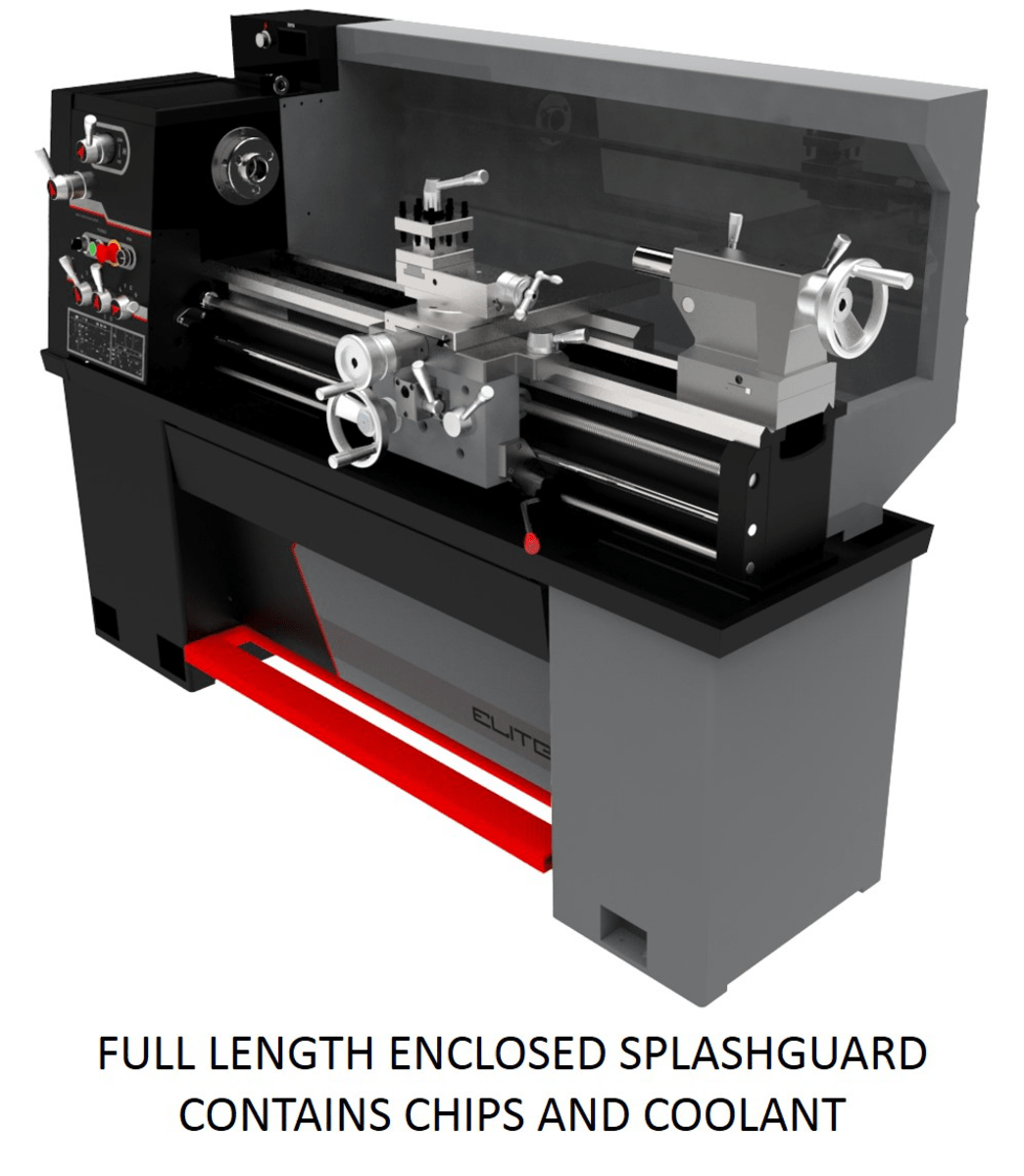

Featuring certified Meehanite® castings, an electromagnetic brake, a three - jaw chuck, ball - bearing mounted rests, and CNC - style lighting with an enclosed splash guard, these lathes meet the highest standards and are CSA/CUS Certified.
- 4 - Position Carriage Stop for precise control
- Standard chuck guards for enhanced safety
- Front - facing chip pan for easy chip removal
- Hardened and ground headstock gears to reduce vibration
- Integrated locking tool cabinet on 12' Lathe
- Infinitely variable spindle speeds with inverter drive
- LED RPM readout for accurate turning
- Two - speed gearbox with a wide speed range
| Stock Number | 892318 |
|---|
| Compound Slide Travel (In.) | 3 - 1/2 |
|---|
| Drive | EVS |
|---|
| Length of Gap (In.) | 9 - 1/2 |
|---|
| Max Tool Size (In.) | 1/2 x 1/2 |
|---|
| Motor (HP) | 2HP, 230V,3ph |
|---|
| Number of Inch Threads | 34.0000 |
|---|
| Number of Longitudinal and Cross Feed Rates | 50 |
|---|
| Number of Metric Threads | 33.0000 |
|---|

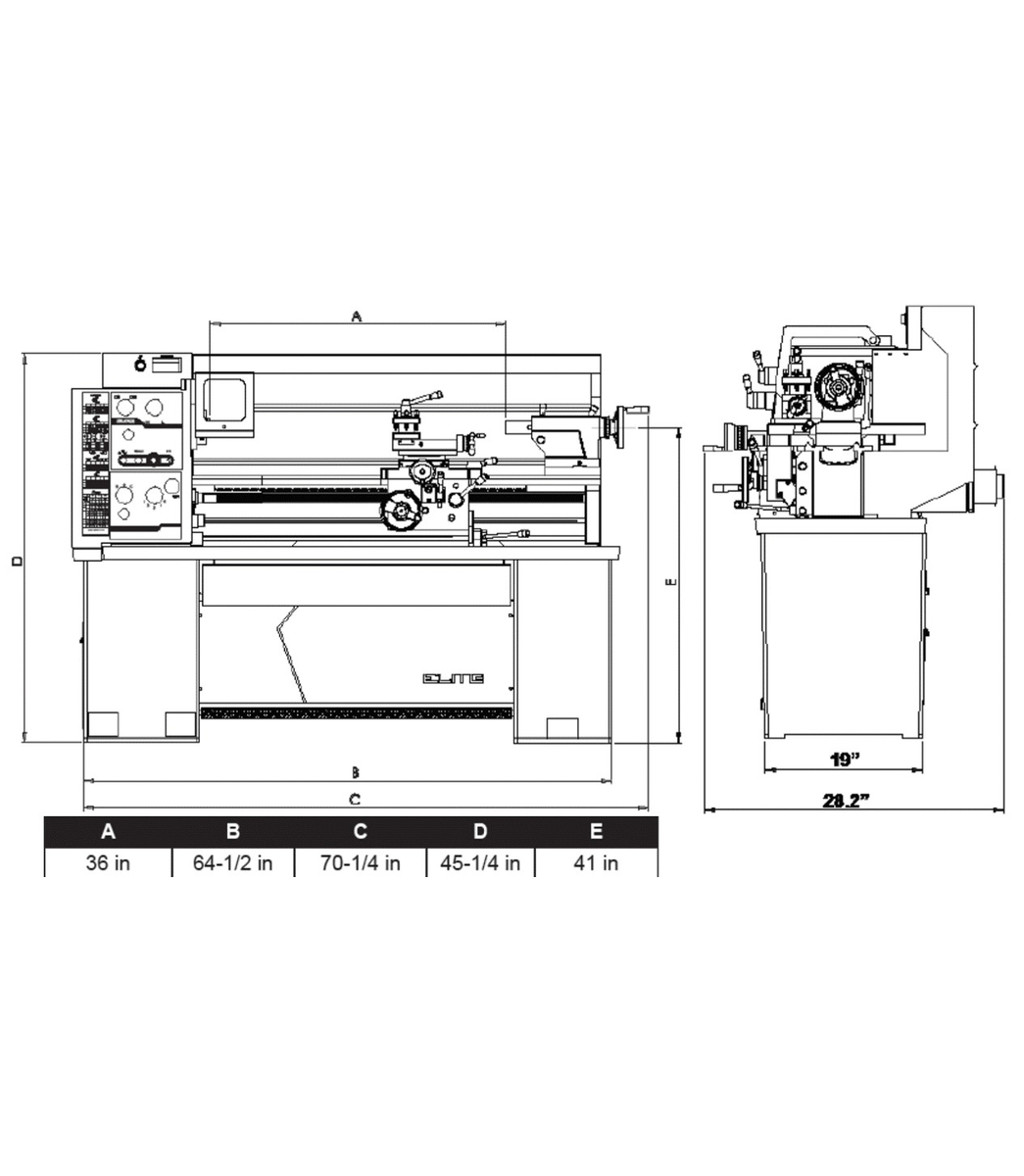

| Overall Dimensions (L x W x H) (In.) | 71 x 30 x 60 |
|---|
| Prop 65 | Cancer and Reproductive Harm |
|---|
| Range of Cross Feeds (IPR) | 0.0005 - 0.015 |
|---|
| Range of Inch Threads (TPI) | 2 - 56 |
|---|
| Range of Longitudinal Feeds (IPR) | 0.0016 - 0.046 |
|---|
| Range of Metric Threads | 0.5 - 12 |
|---|
| Range of Spindle Speeds (RPM) | 0 - 2,000 |
|---|
| Size | 12 x 36 |
|---|
| Spindle Bore (In.) | 1 - 9/16 |
|---|
| Spindle Mount | D1 - 4 |
|---|
| Spindle Taper with Sleeve | MT - 5 |
|---|
| Steady Rest Capacity (In.) | 1/4 - 2 - 1/2 |
|---|
| Style (Type) | ELITE EVS |
|---|
| Swing Over Bed (In.) | 12 |
|---|
| Swing Over Cross Slide (In.) | 7 - 5/16 |
|---|
| Swing Through Gap (In.) | 17 - 1/2 |
|---|
| Tailstock Spindle Travel (In.) | 4 |
|---|
| Taper in Tailstock Spindle | MT - 3 |
|---|
| Weight (Lbs.) | 1212 |
|---|
| Width of Bed (In.) | 7 - 1/2 |
|---|
Using this Elite EVS lathe is straightforward. First, make sure to set up the machine on a stable surface. You can use the 4 - Position Carriage Stop for more precise control when you're working. The inverter drive system allows you to adjust the spindle speed easily, and the LED RPM readout helps you get the exact speed you need. The front - facing chip pan makes it easy to clean up the chips as you work. For safety, always keep the chuck guards in place. When it comes to maintenance, regularly check the hardened and ground gears in the headstock to ensure they're in good condition. Also, keep an eye on the electromagnetic brake. If you notice any issues with the machine, refer to the user manual or contact customer support. And remember, due to the Prop 65 warning, be aware of the potential cancer and reproductive harm associated with the product.
