Description

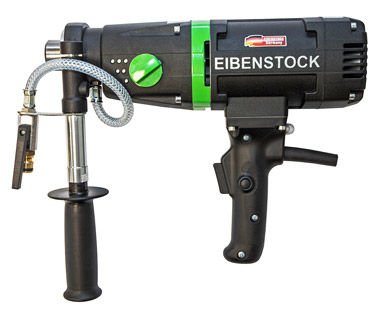

The END 130/3.2 PO is a compact, robust 3-speed diamond core drill that can drill holes up to 6 inches in diameter. It's a fast and efficient core drilling system, perfect for narrow and hard-to-reach areas. You can use it handheld for holes up to 3-1/4 inches in diameter or mount it on a rig for up to 6 inches. With a mechanical slip clutch design, it offers load speeds of 600 / 1300 / 2800 RPM. Running on 15 Amps and 110V, it weighs only 16 lbs. This drill has a powerful 15 AMP motor in a sturdy all-aluminum housing, suitable for continuous use. The mechanical 3-speed gearbox lets you pick the best speed for the core bit diameter, ensuring optimum drilling and longer tool life. All models come with a built-in leveling bubble, safety slip clutch, carrying case, water swivel, overload signal, and Ground Fault Interrupter. The connecting threads of 5/8 x 11 UNC, 1-1/4 x 7 UNC, and G1/2 fit all standard core bits. Optional accessories include an anchor stand, centering aid, portable water tank, water collection ring kit, G 1/2 adapter, and Unicore Diamond Core Bits. Ideal for wet drilling in reinforced concrete, natural stone, and asphalt, especially in narrow spaces like pits. It's great for sanitary, heating, and ventilation construction, civil engineering, and landscape construction. Features a 3-speed oil bath gearbox for optimal lubrication, a short and compact design for tight spaces, an all-aluminum housing, an integrated level bubble on the motor and handle for 90˚ drilling, a side handle for centering or water collection, overload temperature control and GFCI overcurrent cut-off, an overload indicator light, and cut-off carbon brushes to protect the motor. It's the best diamond core drill in its class!
Using the END 130/3.2 PO diamond core drill is easy. First, decide if you'll use it handheld or mount it on a rig. If you're drilling holes up to 3-1/4 inches in diameter, you can use it handheld. For larger holes up to 6 inches, mount it on a rig. Select the right speed from the 3-speed gearbox according to the core bit diameter. This will give you the best drilling results and make the tools last longer. When drilling, make sure to keep an eye on the overload indicator light. If it turns red, reduce the feed pressure to protect the motor. Also, check the carbon brushes regularly as they are designed to cut off and protect the motor. The drill has a built-in leveling bubble on the motor and handle, which helps you drill at a 90˚ angle. Use the side handle to attach a centering device or for water collection if needed. For maintenance, keep the drill clean after each use. The 3-speed oil bath gearbox provides optimal lubrication, but it's a good idea to check the oil level occasionally. Store the drill in a dry place and use the carrying case provided for protection. Don't forget to connect the drill to a power source with the right voltage (110V) and use the Ground Fault Interrupter for safety. If you want to use the optional accessories like the anchor stand or centering aid, follow the instructions that come with them. With proper use and maintenance, your END 130/3.2 PO drill will serve you well for a long time.
